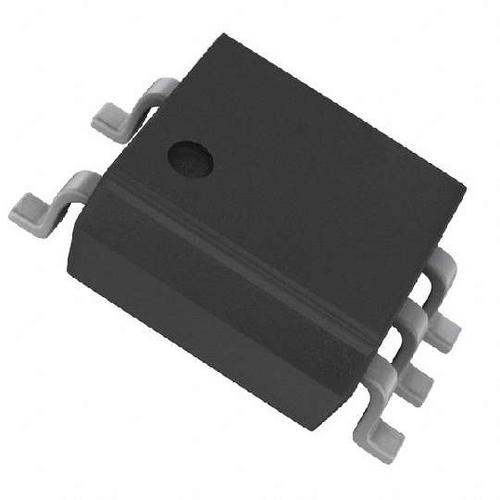

The ACPL-M50L (single-channel in SO-5 footprint), ACPL-054L (dual-channel in SO-8 footprint), ACPL-W50L (single-channel in stretched SO-6 footprint) and ACPL-K54L (dual-channel in stretched SO-8 footprint) are low power, low-input current, 1MBd digital optocouplers.
Features
Wide supply voltage Vcc: 2.7V to 24V
Low Drive Current: 3mA
Open-Collector Output
TTL compatible
Compact SO-5, SO-8, stretched SO-6 and stretched SO-8 package
15 kV/s High Common-Mode Rejection at VCM= 1500 V
Guaranteed performance from Temperature Range: -40°C to +105°C
