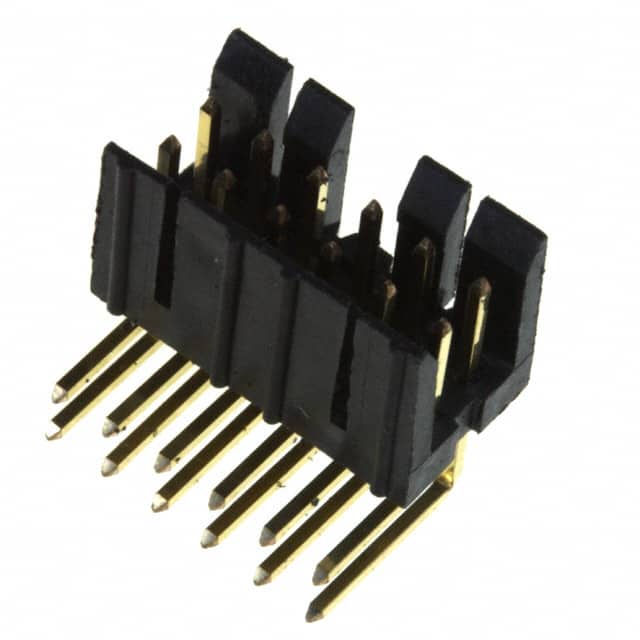

78207-112HLFAmphenol ICCThink of FCI&s;s shrouded 78207-112HLF header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector&s;s 12 contacts that are made out of phosphor bronze and plated with gold over nickel|gxt over nickel. This is a 2-row connector. It has a header type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 1000 VAC. It has a right angle body orientation. This device has a maximum current rating of 3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This product is 15.24 mm long, 8.08 mm tall and 13.97 mm deep. This connector has an operating temperature of -40 to 95 °C. It uses the solder termination method. 78207-112HLF is housed in black polychlorinated terphenyl|liquid crystal polymer.
￥
12.71
显示的图像仅供参考，应从产品数据表中获得准确的规格。
78207-112HLFAmphenol ICC
制造商:
Amphenol ICC
制造商型号#:
78207-112HLF
百芯编号#:
CM860498624
价格(CNY):
￥
12.71
百芯库存:
792
个
库存地点:
可供应量:
386
个在库
此为供应商库存，需要与销售确认
产品描述:
Think of FCI&s;s shrouded 78207-112HLF header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector&s;s 12 contacts that are made out of phosphor bronze and plated with gold over nickel|gxt over nickel. This is a 2-row connector. It has a header type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 1000 VAC. It has a right angle body orientation. This device has a maximum current rating of 3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This product is 15.24 mm long, 8.08 mm tall and 13.97 mm deep. This connector has an operating temperature of -40 to 95 °C. It uses the solder termination method. 78207-112HLF is housed in black polychlorinated terphenyl|liquid crystal polymer.
