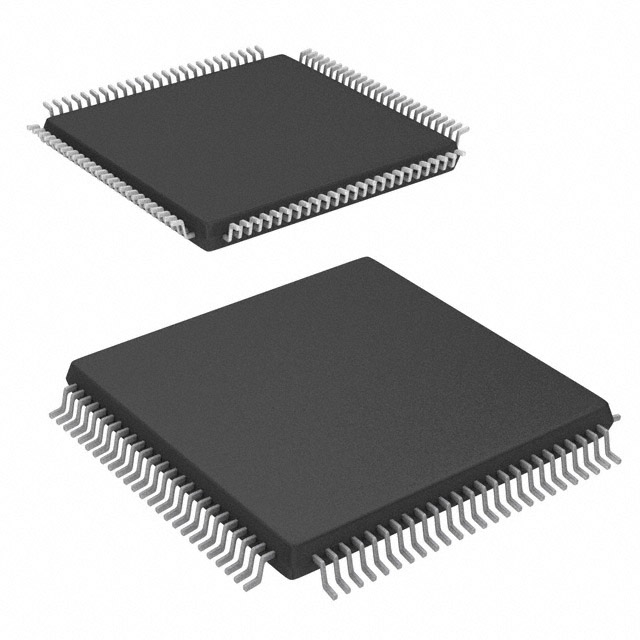

The 5M240ZT100C5N is a surface mount Flash Complex Programmable Logic Device IC with 240 logic elements. The MAX® V low power CPLDs offer more density and I/Os per footprint versus other CPLDs. MAX® V device features on-chip flash storage, internal oscillator and memory functionality. With up to 50% lower total power versus other CPLDs and requiring as few as one power supply. The CPLDs standby current is as low as 25µA and fast power-down/reset operation. User flash memory block up to 8kb for non-volatile storage with up to 1000 read/write cycles.
Instant-on (0.5ms or less) configuration time
Fast propagation delay and clock-to-output times
Internal oscillator
Emulated RSDS output support with a data rate of up to 200Mbps
Emulated LVDS output support with a data rate of up to 304Mbps
Schmitt triggers enabling noise tolerant inputs
ESD sensitive device, take proper precaution while handling the device.
