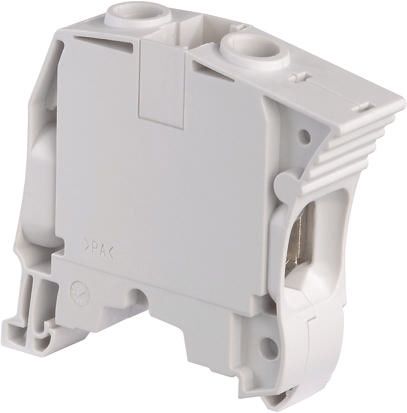

The 1SNK510010R0000 from Entrelec UK is single level, 2 position ZS16 screw clamp feed-through terminal block with DIN rail mounting. This terminal block with 10mm pitch spacing and rated cross section area of 16mm² is suitable for wire size ranging from 24AWG to 4AWG.
Grey colour housing
Dimension of terminal block is 10mm x 48.8mm x 56.1mm (W x L x H)
Ambient operating temperature range from -55°C to 110°C
A6-B6 gauge type
Rated voltage of 1000V and rated current of 76A
Polyamide (PA) insulating material
IP20 degree of protection in accordance to IEC 60529, IEC 60947-1 and EN 60529
