* This document contains certain information on a new product.
Specifications and information herein are subject to change without notice.
Document Number: MMPF0100Z
Rev. 11.0, 5/2016
NXP Semiconductors
Data sheet: Advance Information
© 2016 NXP B.V.
14 channel configurable power
management integrated circuit
The SMARTMOS PF0100Z AEC Q100 grade 2 automotive power management
integrated circuit (PMIC) provides a highly programmable/ configurable
architecture, with fully integrated power devices and minimal external
components. With up to six buck converters, six linear regulators, RTC supply,
and coin-cell charger, the PF0100Z can provide power for a complete system,
including applications processors, memory, and system peripherals, in a wide
range of applications. With on-chip one time programmable (OTP) memory, the
PF0100Z is available in pre-programmed standard versions, or non-
programmed to support custom programming. The PF0100Z is especially suited
to the i.MX 6 family of devices and is supported by full system level reference
designs, and pre-programmed versions of the device.
Features:
• Four to six buck converters, depending on configuration
• Single/dual phase/ parallel options
• DDR termination tracking mode option
• Boost regulator to 5.0 V output
• Six general purpose linear regulators
• Programmable output voltage, sequence, and timing
• OTP (one time programmable) memory for device configuration
• Coin cell charger and RTC supply
• DDR termination reference voltage
• Power control logic with processor interface and event detection
•I
2
C control
• Individually programmable on, off, and standby modes

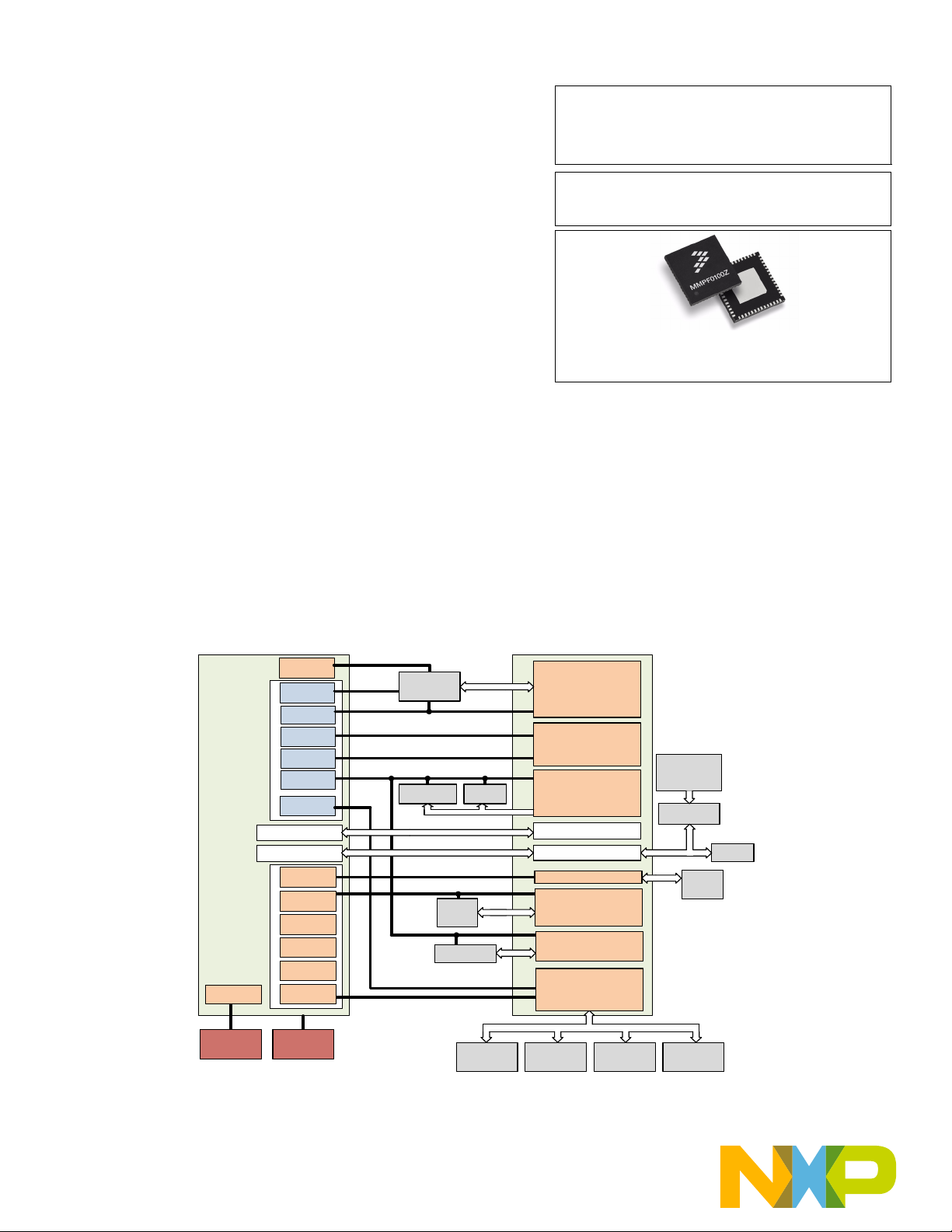

Figure 1. Simplified application diagram
POWER MANAGEMENT
PF0100Z
Applications:
•GPS
• Auto infotainment
• Heads up display (HUD)
• Rear displays
• Digital instrumentation cluster (DIC)
Automotive
ES SUFFIX (WF-TYPE)
98ASA00589D
56 QFN 8X8
VGEN3
100 mA
VGEN5
100 mA
Camera
Audio
Codec
Cluster/HUD
External AMP
Microphones
Speakers
Front USB
POD
Rear USB
POD
Rear Seat
Infotaiment
Sensors
i.MX 6X
I
2
C Communication
I
2
C Communication
PF0100Z
Control Signals
Parallel control/GPIOS
LICELL
Charger
COINCELL
Main Supply
2.8 – 4.5 V
VGEN1
100 mA
VGEN2
250 mA
VGEN4
350 mA
VGEN6
200 mA
SWBST
600 mA
SW3A/B
2500 mA
SW1C
2000 mA
SW1A/B
2500 mA
SW2
2000 mA
SW4
1000 mA
GPS
MIPI
uPCIe
SATA - FLASH
NAND - NOR
Interfaces
Processor Core
Voltages
Camera
VREFDDR
DDR Memory
DDR MEMORY
INTERFACE
SD-MMC/
NAND Mem.
SATA
HDD
WAM
GPS
MIPI
HDMI
LDVS Display
USB
Ethernet
CAN
