MIC4604
85V Half Bridge MOSFET Drivers with up to
16V Programmable Gate Drive
Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (408) 944-0800 • fax + 1 (408) 474-1000 • http://www.micrel.com
June
25, 2013
Revision 1.0
General Description
The MIC4604 is an 85V Half Bridge MOSFET driver. The
MIC4604 features fast 39ns propagation delay times and
20ns driver rise/fall times for a 1nF capacitive load. The
low-side and high-side gate drivers are independently
controlled. The MIC4604 has TTL input thresholds. It
includes a high-voltage internal diode that helps charge
the high-side gate drive bootstrap capacitor.
A robust, high-speed, and low-power level shifter provides
clean level transitions to the high-side output. The robust
operation of the MIC4604 ensures that the outputs are not
affected by supply glitches, HS ringing below ground, or
HS slewing with high-speed voltage transitions.
Undervoltage protection is provided on both the low-side
and high-side drivers.
The MIC4604 is available in an 8-pin SOIC package and a
tiny 10-pin 2.5mm × 2.5mm TDFN package. Both
packages have an operating junction temperature range of
–40°C to +125°C.
Datasheets and support documentation are available on
Micrel’s web site at: www.micrel.com
.
Features
• 5.5V to 16V gate drive supply voltage range.
• Drives high-side and low-side N-Channel MOSFETs
with independent inputs
• TTL input thresholds
• On chip bootstrap diode
• Fast 39ns propagation times
• Drives 1000pF load with 20ns rise and fall times
• Low power consumption
• Supplies undervoltage protection
• –40°C to +125°C junction temperature range
Applications
• Power inverters
• High-voltage step-down regulators
• Half, full and 3-phase bridge motor drives
• Distributed power systems
• Computing peripherals

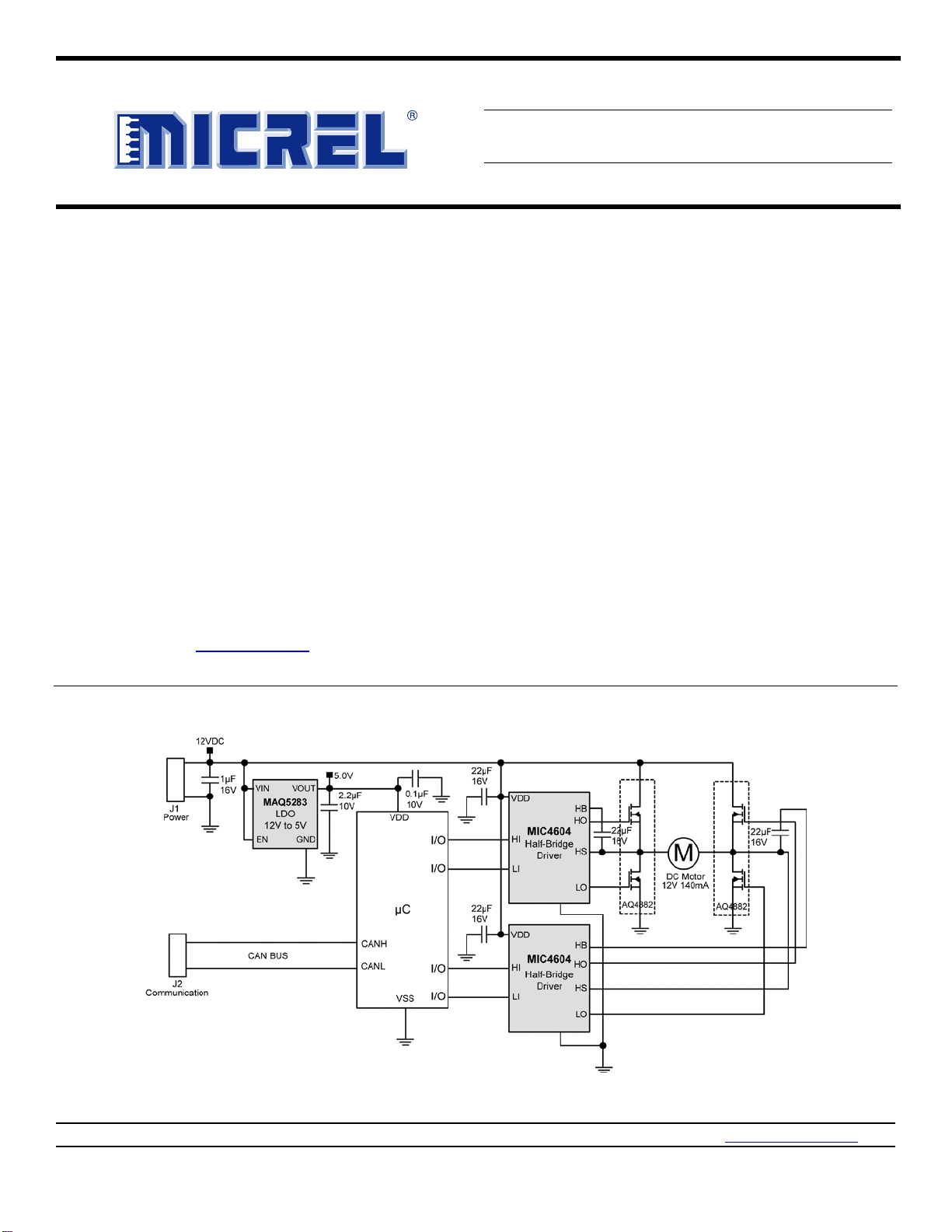

Typical Application
Motor Door Lock Solution
