ispLSI
®
2064/A
In-System Programmable High Density PLD
2064_10 1
USE ispLSI 2064E FOR NEW DESIGNS
Lead-
Free
Package
Options
Available!
Features
• ENHANCEMENTS
— ispLSI 2064A is Fully Form and Function Compatible
to the ispLSI 2064, with Identical Timing
Specifcations and Packaging
— ispLSI 2064A is Built on an Advanced 0.35 Micron
E
2
CMOS
®
Technology
• HIGH DENSITY PROGRAMMABLE LOGIC
— 2000 PLD Gates
— 64 I/O Pins, Four Dedicated Inputs
— 64 Registers
— High Speed Global Interconnect
— Wide Input Gating for Fast Counters, State
Machines, Address Decoders, etc.
— Small Logic Block Size for Random Logic
• HIGH PERFORMANCE E
2
CMOS
®
TECHNOLOGY
—
fmax = 125 MHz Maximum Operating Frequency
—
tpd = 7.5 ns Propagation Delay
— TTL Compatible Inputs and Outputs
— Electrically Erasable and Reprogrammable
— Non-Volatile
— 100% Tested at Time of Manufacture
— Unused Product Term Shutdown Saves Power
• IN-SYSTEM PROGRAMMABLE
— In-System Programmable (ISP™) 5V Only
— Increased Manufacturing Yields, Reduced Time-to-
Market and Improved Product Quality
— Reprogram Soldered Devices for Faster Prototyping
• OFFERS THE EASE OF USE AND FAST SYSTEM
SPEED OF PLDs WITH THE DENSITY AND FLEXIBILITY
OF FIELD PROGRAMMABLE GATE ARRAYS
— Complete Programmable Device Can Combine Glue
Logic and Structured Designs
— Enhanced Pin Locking Capability
— Three Dedicated Clock Input Pins
— Synchronous and Asynchronous Clocks
— Programmable Output Slew Rate Control to
Minimize Switching Noise
— Flexible Pin Placement
— Optimized Global Routing Pool Provides Global
Interconnectivity
— Lead-Free Package Options
Fu
Description
The ispLSI 2064 and 2064A are High Density Program-
mable Logic Devices. The devices contain 64 Registers,
64 Universal I/O pins, four Dedicated Input pins, three
Dedicated Clock Input pins, two dedicated Global OE
input pins and a Global Routing Pool (GRP). The GRP
provides complete interconnectivity between all of these
elements. The 2064 and 2064A feature 5V in-system
programmability and in-system diagnostic capabilities.
The ispLSI 2064 and 2064A offer non-volatile
reprogrammability of the logic, as well as the intercon-
nect, to provide truly reconfigurable systems.
The basic unit of logic on these devices is the Generic
Logic Block (GLB). The GLBs are labeled A0, A1…B7
(Figure 1). There are a total of 16 GLBs in the ispLSI 2064
and 2064A devices. Each GLB is made up of four
macrocells. Each GLB has 18 inputs, a programmable
AND/OR/Exclusive OR array, and four outputs which can
be configured to be either combinatorial or registered.
Inputs to the GLB come from the GRP and dedicated
inputs. All of the GLB outputs are brought back into the
GRP so that they can be connected to the inputs of any
GLB on the device.

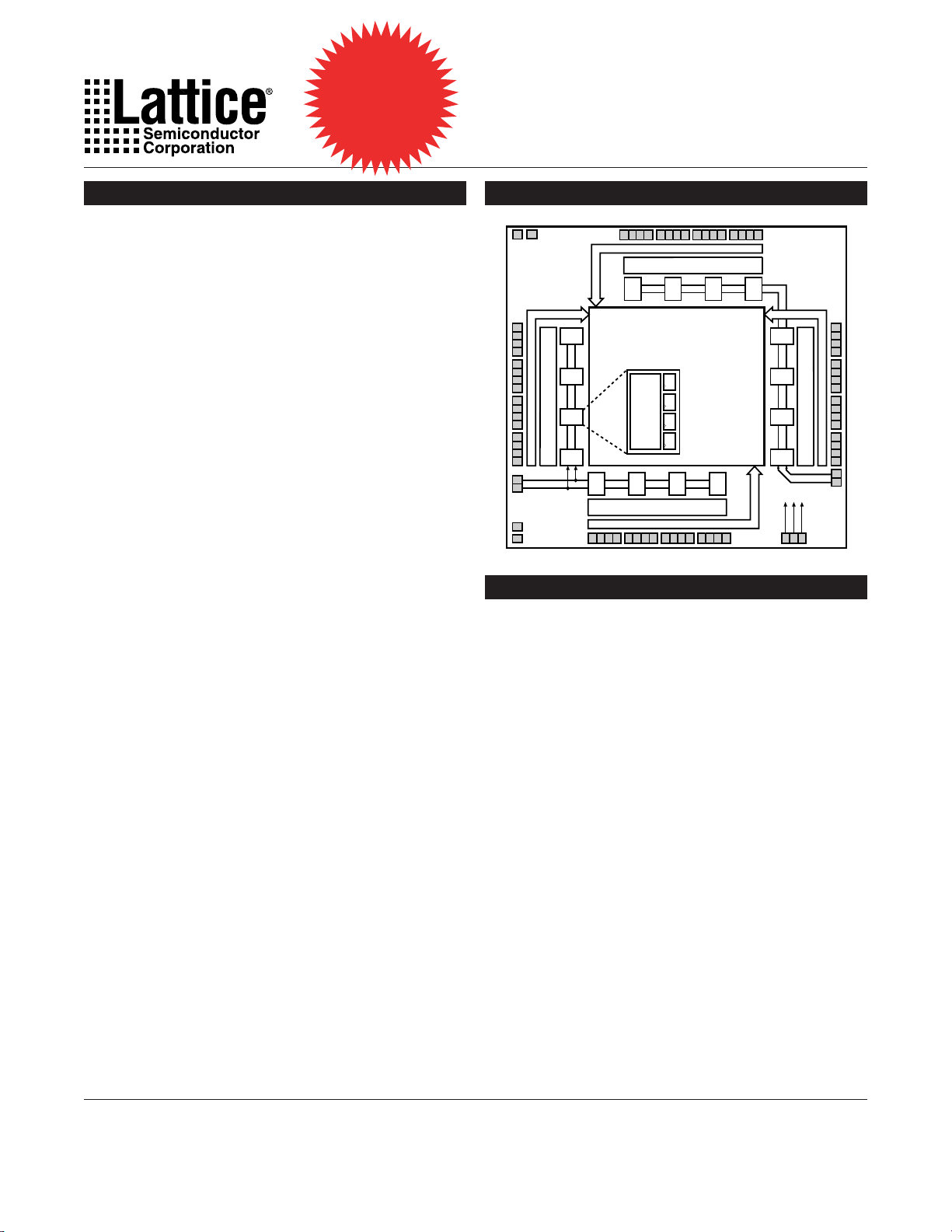

Functional Block Diagram
Global Routing Pool
(GRP)
A0
A1
A3
Input Bus
Output Routing Pool (ORP)
B3
B2
B1
B0
Input Bus
Output Routing Pool (ORP)
A2
GLB
Logic
Array
DQ
DQ
DQ
DQ
A4
A5
A6 A7
Input Bus
Output Routing Pool (ORP)
B7
B6 B5 B4
Input Bus
Output Routing Pool (ORP)
0139Bisp/2064
Copyright © 2006 Lattice Semiconductor Corp. All brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject
to change without notice.
LATTICE SEMICONDUCTOR CORP., 5555 Northeast Moore Ct., Hillsboro, Oregon 97124, U.S.A.
Tel. (503) 268-8000; 1-800-LATTICE; FAX (503) 268-8556; http://www.latticesemi.com
August 2006
Select devices have been discontinued.
See Ordering Information section for product status.
