CLOCK DISTRIBUTION - SMT
1
HMC988LP3E
v04.1014
PROGRAMMABLE CLOCK DIVIDER AND DELAY
DC - 4 GHz

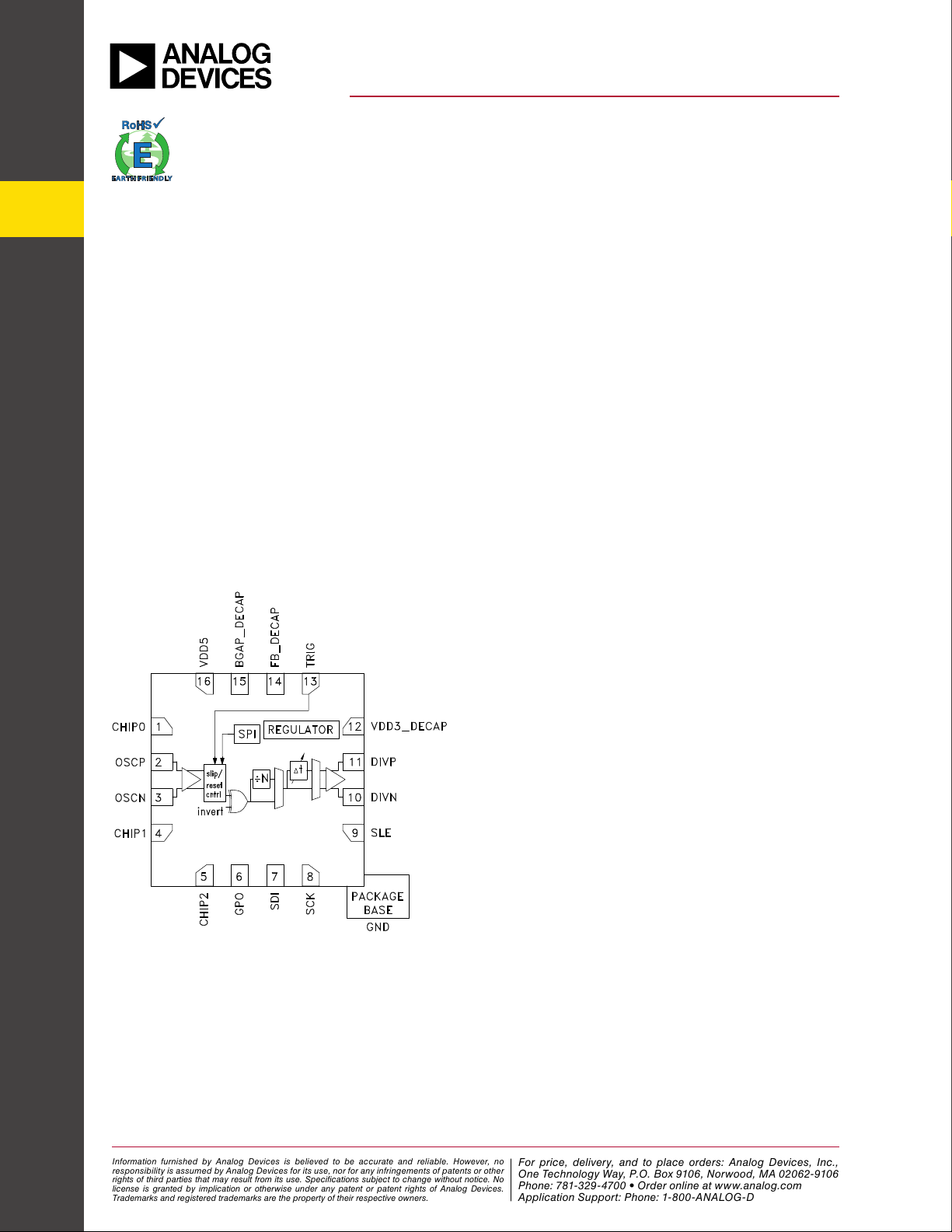

Functional Diagram
Typical Applications Features
General Description
The HMC988LP3E is ideal for:
• Basestation Digital Pre-Distortion Paths(DPD)
• High Performance Automated Test
Equipment(ATE)
• Backplane clock skew management
• Phase Coherence of multiple clock paths
• Clock Delay management to improve setup &
hold time margins
•
PCB signal ight time offset circuits
• Track and hold circuits for ADC/DACs
DC - 4 GHz
-170 dBc/Hz oor @ 100 MHz output
-164 dBc/Hz oor @ 2 GHz output
Integrated Jitter 35 fs
RMS
@ 100 MHz output
13 fs
RMS
(calculated) @ 2 GHz output
Adjustable output phase with soft/hard reset sync
Adjustable output delay in 60 steps of 20 ps
Flexible Input Interface:
LVPECL,LVDS,CML,CMOS Compatible
AC or DC Coupling
On - Chip Termination 50 Ω (100 Ω Differential)
Output Driver (LVPECL):
800 mVpp LVPECL into 50 Ω Single-Ended (+3
dBm Fo)
Up to 8 addressable dividers per SPI bus
3.3 V operation or 5 V operation with Optional on-
chip regulator for best performance
3 x 3 QFN Leadless SMT Package
The HMC988LP3E is a an ultra low noise clock
divider capable of dividing by 1/2/4/8/16/32. It is a
versatile device with additional functionality including
adjustable output phase, adjustable delay in 60 steps
of ~ 20 ps, a clock synchronization function, and a
clock invert option.
Housed in a compact 3x3 mm SMT QFN package, the
clock divider offers a high level of functionality. The
device works with 3.3 V supply or may be connected
to 5 V supply and utilize the optional on-chip regulator.
This on-chip regulator may be bypassed.
Up to 8 addressable HMC988LP3E devices can be
used together on the SPI bus.
The HMC988LP3E is ideally suited for data converter
applications with extremely low phase noise
requirements.
