HIGH SPEED LOGIC - SMT
1
HMC747LC 3C
v07.0514
14 Gbps, FAST RISE TIME D-TYPE FLIP-FLOP
w/ PROGRAMMABLE OUTPUT VOLTAGE & POSITIVE SUPPLY
The HMC747LC3C is a D-Type Flip-Flop designed to
support data transmission rates of up to 14 Gbps, and
clock frequencies as high as 14 GHz. During normal
operation, data is transferred to the outputs on the
positive edge of the clock. Reversing the clock inputs
allows for negative-edge triggered applications.
All differential inputs to the HMC747LC3C are CML and
terminated on-chip with 50 ohms to the positive supply,
Vcc, and may be AC or DC coupled. The differential
CML outputs are source terminated to 50 ohms and may
also be AC or DC coupled. Outputs can be connected
directly to a 50 ohm Vcc-terminated system, while DC
blocking capacitors may be used if the terminating
system is 50 ohms to ground. The HMC747LC3C also
features an output level control pin, VR, which allows
for loss compensation or signal-level optimazation. the
HMC747LC3C operates from a single 3.3 V supply and
is available in ROHS-compliant 3x3 mm SMT package.
General Description
Features

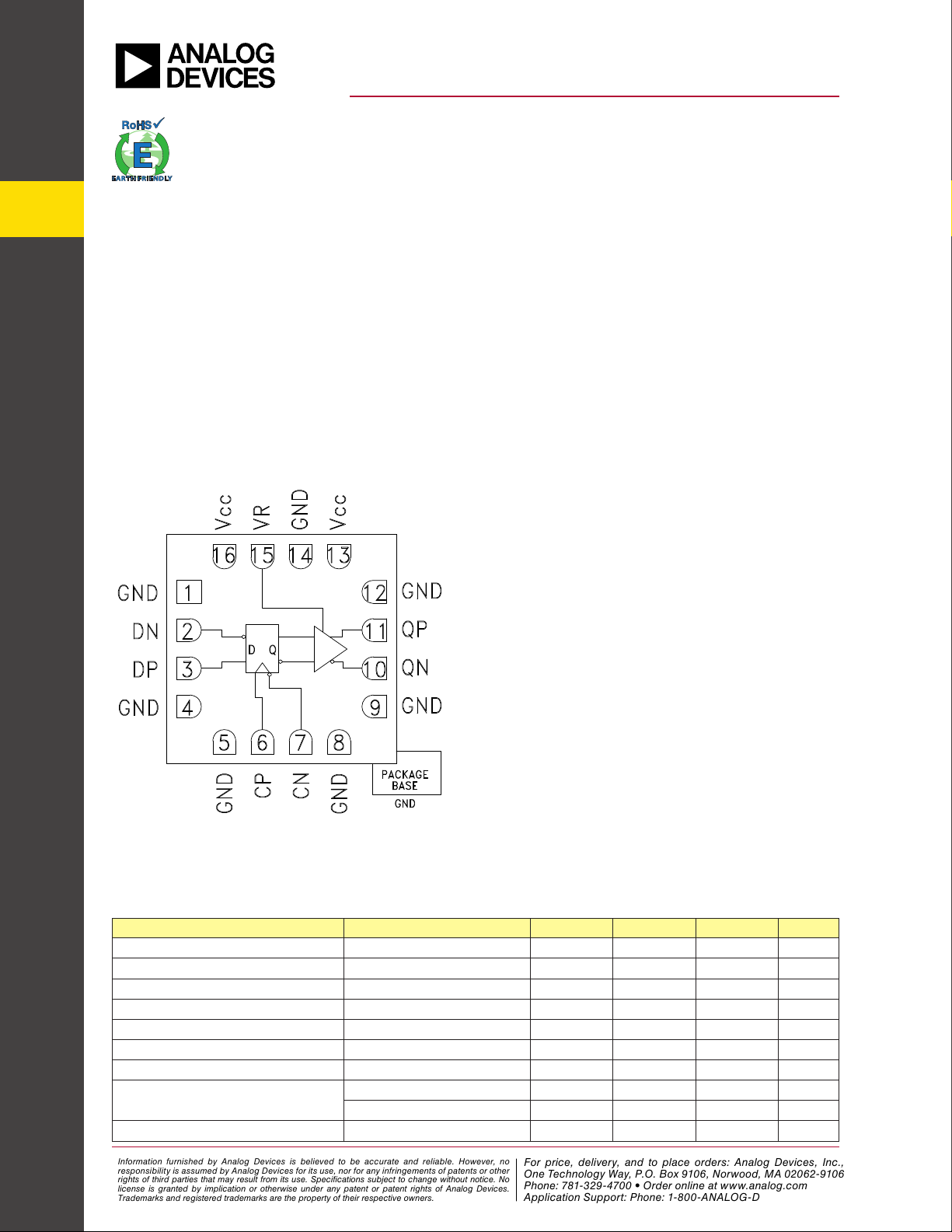

Functional Diagram
Supports High Data Rates: up to 14 Gbps
Differential & Single-Ended Operation
Fast Rise and Fall Times: 22 / 20 ps
Low Power Consumption: 264 mW typ.
Programmable Differential
Output Voltage Swing: 700 - 1300 mV
Propagation Delay: 105 ps
Single Supply: +3.3 V
16 Lead Ceramic 3x3 mm SMT Package: 9 mm
2
Typical Applications
The HMC747LC3C is ideal for:
• RF ATE Applications
• Broadband Test & Measurement
• Serial Data Transmission up to 14 Gbps
• Digital Logic Systems up to 14 GHz
Electrical Specications, T
A
= +25 °C, Vcc = 3.3 V, VR = 3.3 V
Parameter Conditions Min. Typ. Max Units
Power Supply Voltage 3.0 3.3 3.6 V
Power Supply Current 80 mA
Maximum Data Rate 14 Gbps
Maximum Clock Rate 14 GHz
Input Voltage Range Vcc - 1.5 Vcc + 0.5 V
Input Differential Range 0.1 2 Vp-p
Input Return Loss Frequency <14 GHz 10 dB
Output Amplitude
Single-Ended, peak-to-peak 550 mVp-p
Differential, peak-to-peak 1100 mVp-p
Output High Voltage 3.29 V
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
