For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824
Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com
Application Support: Phone: 978-250-3343 or apps@hittite.com
HIGH SPEED DIGITAL LOGIC - SMT
1
HMC678LC3C
v06.0514
13 Gbps, 2:1 SELECTOR
w/ PROGRAMMABLE OUTPUT VOLTAGE
The HMC678LC3C is a 2:1 Selector designed to sup-
port data transmission rates of up to 13 Gbps, and
selector port operation of up to 13 GHz. The selector
routes one of the two single-ended inputs to the
differential output upon assertion of the proper select
port. The HMC678LC3C also features an output level
control pin, VR, which allows for loss compensation or
for signal level optimization.
All single-ended input signals to the HMC678LC3C
are terminated with 50 Ohms to ground on-chip, and
may be either AC or DC coupled. The outputs of the
HMC678LC3C may be operated either differentially
or single-ended. Outputs can be connected directly
to a 50 Ohm terminated system, while DC blocking
capacitors may be used if the terminating system is 50
Ohms to a non-ground DC voltage. The HMC678LC3C
operates from a single -3.3V DC supply and is available
in a ceramic RoHS compliant 3x3 mm SMT package.
General Description
Features

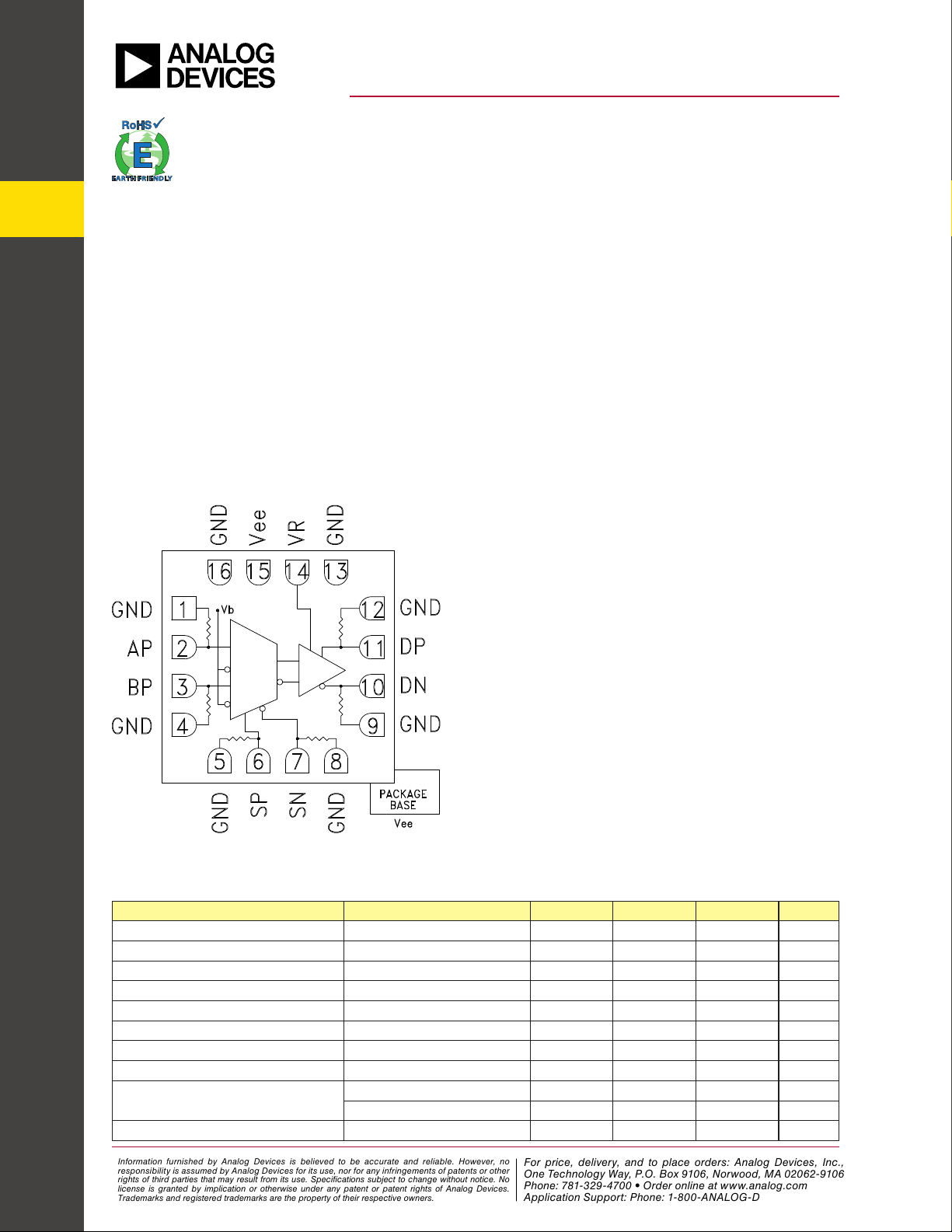

Functional Diagram
Supports High Data Rates: up to 13 Gbps
Single-ended inputs
Differential & Single-ended outputs
Fast Rise and Fall Times: 19 / 18 ps
Low Power Consumption: 250 mW typ.
Programmable Differential
Output Voltage Swing: 600 - 1200 mV
Propagation Delay: 125 ps
Single Supply: -3.3V
16 Lead Ceramic 3x3mm SMT Package: 9mm
2
Typical Applications
The HMC678LC3C is ideal for:
• 2:1 Multiplexer up to 13 Gbps
• RF ATE Applications
• Broadband Test & Measurement
• Serial Data Transmission up to 13 Gbps
• Redundant Path Switching
• Built-in Test
Electrical Specications, T
A
= +25°C, Vee = -3.3V
Parameter Conditions Min. Typ. Max Units
Power Supply Voltage -3.6 -3.3 -3.0 V
Power Supply Current 76 mA
Maximum Data Rate 13 Gbps
Maximum Select Rate 13 GHz
Maximum Serial Transmission Rate 26 Gbps
Input High Voltage -0.2 0.5 V
Input Low Voltage -1.5 -0.4 V
Input Return Loss Frequency <13 GHz 10 dB
Output Amplitude
Single-Ended, peak-to-peak 550 mVp-p
Differential, peak-to-peak 1100 mVp-p
Output High Voltage -10 mV
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
For price, delivery, and to place orders: Analog Devices, Inc.,
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
Phone: 781-329-4700 • Order online at www.analog.com
Application Support: Phone: 1-800-ANALOG-D
