CY8C24894
Automotive PSoC
®
Programmable System-on-Chip™
Cypress Semiconductor Corporation • 198 Champion Court • San Jose, CA 95134-1709 • 408-943-2600
Document Number: 001-53754 Rev. *H Revised March 12, 2015
Features
■ Automotive Electronics Council (AEC) qualified
■ Powerful Harvard-architecture processor
❐ M8C processor speeds up to 24 MHz
❐ Two 8 × 8 multiply, 32-bit accumulate
❐ Low power at high speed
❐ Operating voltage: 3.0 V to 5.25 V
❐ Automotive temperature range: –40 °C to +85 °C
■ Advanced peripherals (PSoC
®
blocks)
❐ Six rail-to-rail analog PSoC blocks provide:
• Up to 14-bit analog-to-digital converters (ADCs)
• Up to 9-bit digital-to-analog converters (DACs)
• Programmable gain amplifiers (PGAs)
• Programmable filters and comparators
❐ Four digital PSoC blocks provide:
• 8- to 32-bit timers, counters, and pulse-width modulators
(PWMs)
• Cyclic redundancy check (CRC) and pseudo-random
sequence (PRS) modules
• Full- or half-duplex UART
• SPI master or slave
• Connectable to all general purpose I/O (GPIO) pins
❐ Complex peripherals by combining blocks
• Capacitive sensing application capability
■ Flexible on-chip memory
❐ 16-KB flash program storage, 1000 erase/write cycles
❐ 1-KB SRAM data storage
❐ In-system serial programming (ISSP)
❐ Partial flash updates
❐ Flexible protection modes
❐ EEPROM emulation in flash
■ Programmable pin configurations
❐ 25-mA sink, 10-mA drive on all GPIOs
❐ Pull-up, pull-down, high Z, strong, or open-drain drive modes
on all GPIOs
❐ Up to 47 analog inputs on GPIOs
❐ Two 30-mA analog outputs on GPIOs
❐ Configurable interrupt on all GPIOs
■ Precision, programmable clocking
❐ Internal ±4% 24/48 MHz oscillator
❐ Internal low-speed, low-power oscillator for watchdog and
sleep functionality
❐ Optional external oscillator, up to 24 MHz
■ Additional system resources
❐ I
2
C™ slave, master, or multimaster operation up to 400 kHz
❐ Watchdog and sleep timers
❐ User-configurable LVD
❐ Integrated supervisory circuit
❐ On-chip precision voltage reference
■ Complete development tools
❐ Free development software (PSoC Designer™)
❐ Full-featured in-circuit emulator (ICE) and programmer
❐ Full-speed emulation
❐ Complex breakpoint structure
❐ 128-KB trace memory

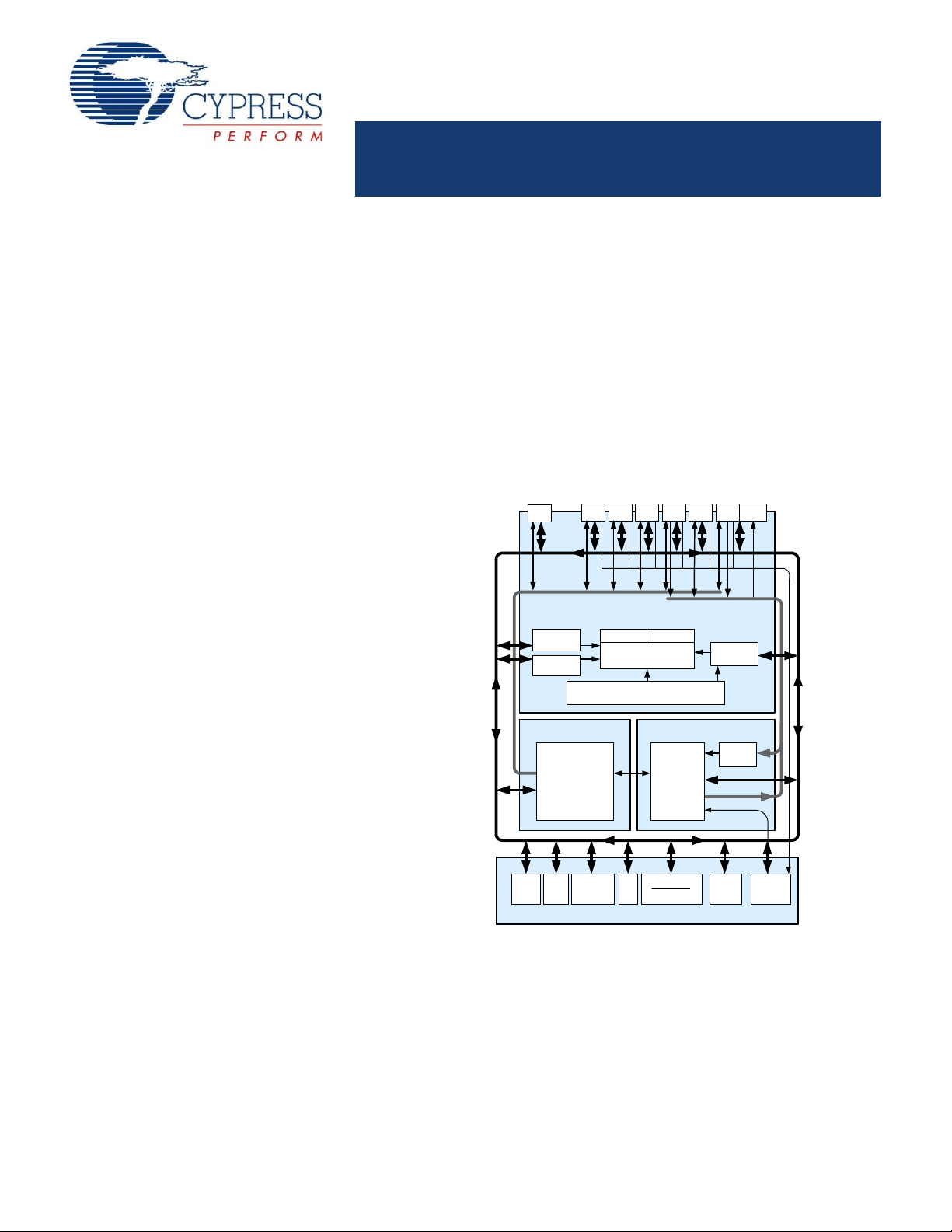

Logic Block Diagram
Input
Analog
Muxing
DIGITAL SYSTEM
SRAM
1K
Interrupt
Controller
Sleep and
Watchdog
Clock Sources
(Includes IMO and ILO)
Global Digital Interconnect
Global Analog Interconnect
PSoC CORE
CPU Core (M8C)
SROM Flash 16K
Digital
Block
Array
Digital
Clocks
SYSTEM RESOURCES
ANALOG SYSTEM
Analog
Ref.
Port 5 Port 4 Port 3 Port 2 Port 1 Port 0
Analog
Drivers
Analog
Block
Array
Internal
Voltage
Ref.
POR and LVD
System Resets
2
MACs
Decimator
Type 2
I2C
Port 7
S
y
s
t
e
m
B
u
s
Errata: For information on silicon errata, see “Errata” on page 46. Details include trigger conditions, devices affected, and proposed workaround.
