CY8C21345/CY8C21645
CY8C22345/CY8C22345H/CY8C22645
Automotive PSoC
®
Programmable System-on-Chip™
Cypress Semiconductor Corporation • 198 Champion Court • San Jose, CA 95134-1709 • 408-943-2600
Document Number: 001-55397 Rev. *M Revised September 25, 2014
Automotive PSoC
®
Programmable System-on-Chip™
Features
■ Automotive Electronics Council (AEC) Q100 qualified
■ Powerful Harvard-architecture processor
❐ M8C processor speeds up to 24 MHz
❐ 8 × 8 multiply, 32-bit accumulate
❐ Low power at high speed
❐ Automotive A-grade: 3.0 V to 5.25 V operation at –40 °C to
+85 °C temperature range
❐ Automotive E-grade: 4.75 V to 5.25 V operation at –40 °C to
+125 °C temperature range
■ Advanced peripherals (PSoC
®
blocks)
❐ Six analog Type ‘E’ PSoC blocks provide:
• Up to four comparators with digital-to-analog converters
(DAC) references
• Up to 10-bit single or dual analog-to-digital converters
(ADCs)
❐ Up to eight digital PSoC blocks provide:
• 8 to 32-bit timers, counters, and pulse width modulators
(PWMs)
• One-shot, multi-shot mode in timers and PWMs
• PWM with deadband in one digital block
• Shift register, cyclical redundancy check (CRC), and
pseudo random sequence (PRS) modules
• Full- or half-duplex UARTs
• SPI masters or slaves, 8- to 16-bit variable data length
• Connectable to all general-purpose I/O (GPIO) pins
❐ Complex peripherals by combining blocks
❐ Powerful synchronization support, analog module operations
can be synchronized by digital blocks or external signals.
■ High-speed 10-bit successive approximation register (SAR)
ADC with sample and hold optimized for embedded control
■ CY8C22345H devices Integrate Immersion
®
TouchSense
®
Haptics Technology for ERM drive control
■ Precision, programmable clocking
❐ Internal oscillator up to 24 MHz
❐ High accuracy 24 MHz with optional 32-kHz crystal and
phase locked loop (PLL)
❐ Optional external oscillator, up to 24 MHz
❐ Internal low speed, low-power oscillator for watchdog and
sleep functionality
■ Flexible on-chip memory
❐ Up to 16 KB flash program storage, 1000 erase/write cycles
❐ Up to 1 KB SRAM data storage
❐ In-System Serial Programming (ISSP)
❐ Partial flash updates
❐ Flexible protection modes
❐ EEPROM emulation in flash
■ Optimized CapSense
®
resource
❐ Supports two CapSense channels with simultaneous
scanning
❐ Two current DACs provide programmable sensor tuning in
firmware
❐ Two dedicated clock resources for CapSense
❐ Two dedicated 16-bit timers/counters for CapSense
scanning
■ Versatile analog mux
❐ Common internal analog bus
❐ Simultaneous connection of I/O combinations
■ Programmable pin configurations
❐ 25 mA sink, 10 mA drive on all GPIOs
❐ Pull-up, pull-down, high Z, strong, or open-drain drive modes
on all GPIOs
❐ Analog input on all GPIOs
❐ Configurable interrupt on all GPIOs
■ Additional system resources:
❐ I
2
C master, slave, or multi-master
• Operation up to 400 kHz
• Hardware address detection feature
❐ Watchdog and sleep timers
❐ User-configurable low voltage detection
❐ Integrated supervisory circuit
❐ On-chip precision voltage reference
❐ Hardware real time clock (RTC) block
DIGITAL SYSTEM
SRAM
1KB/512B
Interrupt
Controller
Sleep and
Watchdog
Multiple Clock Sources
(Includes IMO, ILO, PLL, and ECO)
Global Digital
Interconnect
Global Analog Interconnect
PSoC CORE
CPU Core (M8C)
SROM Flash 16K/8K
Digital Block
Array
Multiply
Accum.
Internal
Voltage
Ref.
Digital
Clocks
POR and LVD
System Resets
SYSTEM RESOURCES
ANALOG SYSTEM
Analog
Ref
Analog
Input
Muxing
I
2
C
System Bus
Analog
Block
Array
Port 2 Port 1 Port 0
CapSense Digital
Resources
Port 3Port 4
10-bit SAR
ADC
RTC

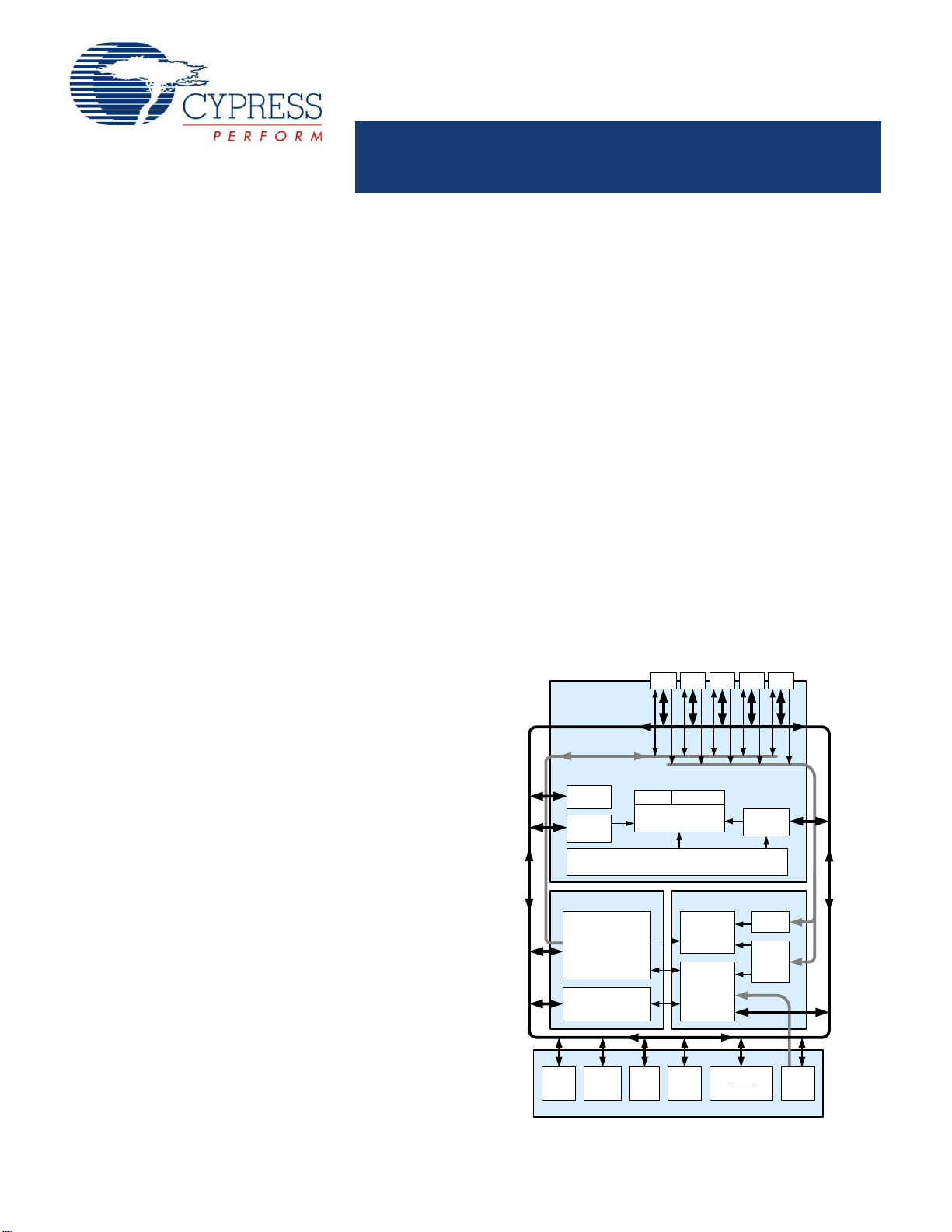

Block Diagram
