© Semiconductor Components Industries, LLC, 2013
October, 2013 − Rev. 0
1 Publication Order Number:
CAT93C76B/D
CAT93C76B
8-Kb Microwire Serial
EEPROM
Description
The CAT93C76B is an 8−Kb Serial EEPROM memory device
which is configured as either registers of 16 bits (ORG pin at V
CC
or
Not Connected) or 8 bits (ORG pin at GND). Each register can be
written (or read) serially by using the DI (or DO) pin. The
CAT93C76B is manufactured using ON Semiconductor’s advanced
CMOS EEPROM floating gate technology. The device is designed to
endure 1,000,000 program/erase cycles and has a data retention of 100
years. The device is available in 8−pin PDIP, SOIC, TSSOP, MSOP
and 8−pad UDFN packages.
Features
• High Speed Operation: 4 MHz (5 V), 2 MHz (1.8 V)
• 1.8 V (1.65 V*) to 5.5 V Supply Voltage Range
• Selectable x8 or x16 Memory Organization
• Self−timed Write Cycle with Auto−clear
• Software Write Protection
• Power−up Inadvertant Write Protection
• Low Power CMOS Technology
• 1,000,000 Program/Erase Cycles
• 100 Year Data Retention
• Industrial and Extended Temperature Ranges
• Sequential Read
• 8−pin PDIP, SOIC, TSSOP, MSOP and 8−Pad UDFN Packages
• This Device is Pb−Free, Halogen Free/BFR Free and RoHS
Compliant
†
CS
SK
ORG
DO
DI
GND
V
CC

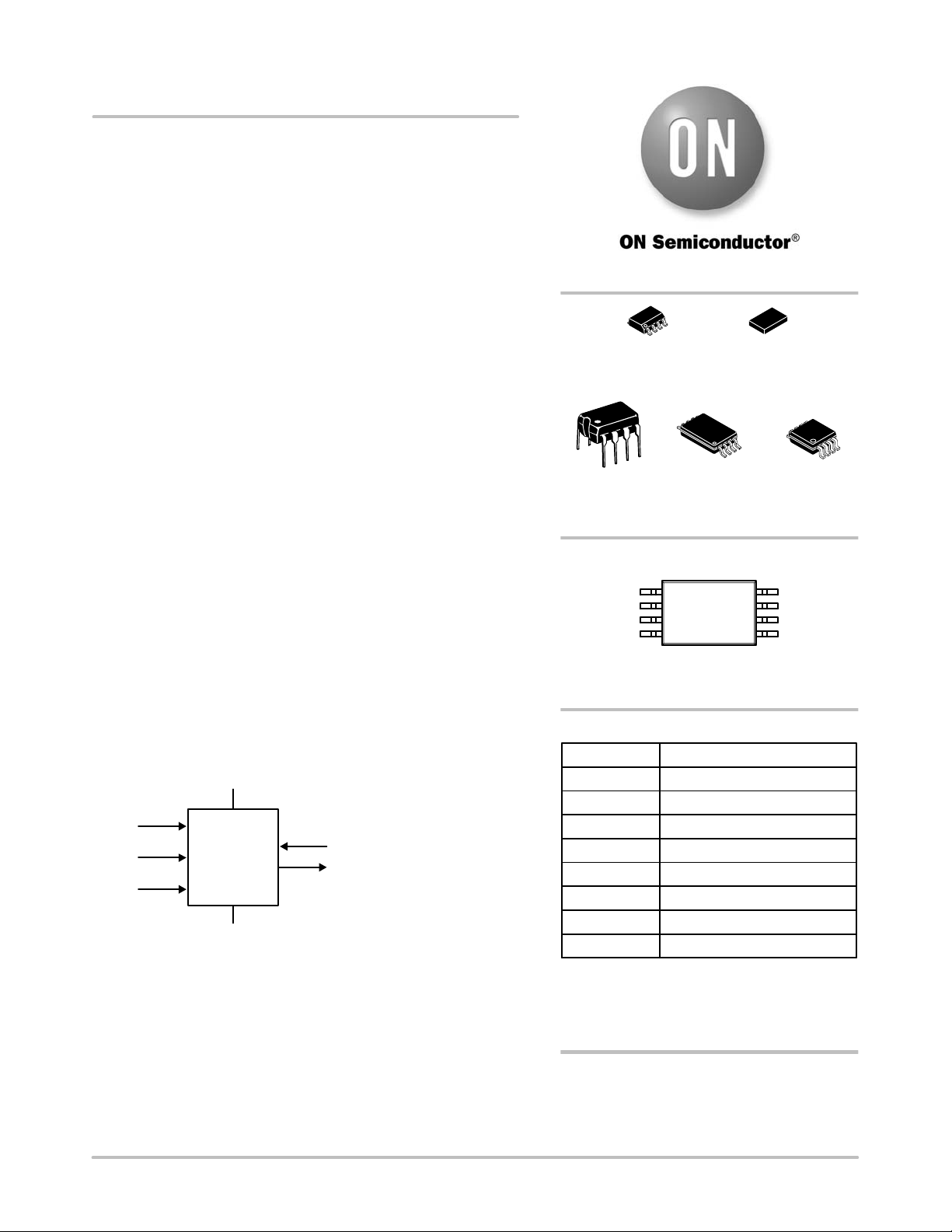

Figure 1. Functional Symbol
CAT93C76B
*CAT93C76Bxx−xxL (T
A
= −205C to +855C)
†For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
http://onsemi.com
See detailed ordering and shipping information in the package
dimensions section on page 13 of this data sheet.
ORDERING INFORMATION
PIN CONFIGURATION
GND
NC
V
CC
DO
DI
SK
CS
1
SOIC−8
V SUFFIX
CASE 751BD
ORG
PDIP (L), SOIC (V),
TSSOP (Y), UDFN (HU4), MSOP (Z)
(Top View)
PDIP−8
L SUFFIX
CASE 646AA
TSSOP−8
Y SUFFIX
CASE 948AL
Chip SelectCS
Serial Clock InputSK
Serial Data InputDI
Serial Data OutputDO
Power SupplyV
CC
GroundGND
FunctionPin Name
PIN FUNCTION
Memory OrganizationORG
No ConnectionNC
UDFN−8
HU4 SUFFIX
CASE 517AZ
NOTE: When the ORG pin is connected to V
CC
, the
x16 organization is selected. When it is connected to
ground, the x8 organization is selected. If the ORG pin
is left unconnected, then an internal pull−up device will
select the x16 organization.
MSOP−8
Z SUFFIX
CASE 846AD
