AS5132
360 Step (8.5 bit) Programmable High Speed Magnetic Rotary Encoder
www.ams.com Revision 1.4 1 - 27
1 General Description
The AS5132 is a contactless magnetic rotary encoder for accurate
angular measurement over a full turn of 360 degrees. It is a system-
on-chip, combining integrated Hall elements, analog frontend and
digital signal processing in a single device.
To measure the angle, only a simple two-pole magnet, rotating over
the center of the chip is required.
The absolute angle measurement provides instant indication of the
magnet’s angular position with a resolution of 8.5 bit = 360 positions
per revolution. This digital data is available as serial output over the
interface and as a pulse width modulated (PWM) signal.
An additional U,V,W output can be used for a block commutation for
a brushless DC motor. An incremental signal is available as an
option.
In addition to the angle information, the strength of the magnetic field
is also available as a 5-bit code.
A software programmable (OTP) zero position simplifies assembly
as the zero position. The magnet does not need to be mechanically
aligned.
2 Key Features
360º contactless angular position sensing
Two digital absolute outputs (8.5 bit):
- Serial interface
- PWM output
Incremental output with adjustable number of pulses
BLDC Output UVW, selectable for 1,2,3,4,5,6 pole pairs
Supports external PWM clock mode
Static and dynamic pre-commutation feature
User programmable zero position and sensitivity
High speed: up to 72,900 rpm
Direct measurement of magnetic field strength allows exact
determination of vertical magnet distance
Incremental Outputs ABI Quadrature: 90ppr, step direction:
180ppr, fixed pulse width 360ppr
9-bit multi turn counter
Wide magnetic field input range: 20 – 80 mT (typical)
Wide temperature range: -40ºC to +150ºC
Thin Small Pb-free package: SSOP 20
Fully automotive qualified to AEC-Q100, grade 0
3 Applications
The AS5132 is suitable for contactless rotary position sensing, rotary
switches (human machine interface), AC/DC motor position control
and Brushless DC motor position control.

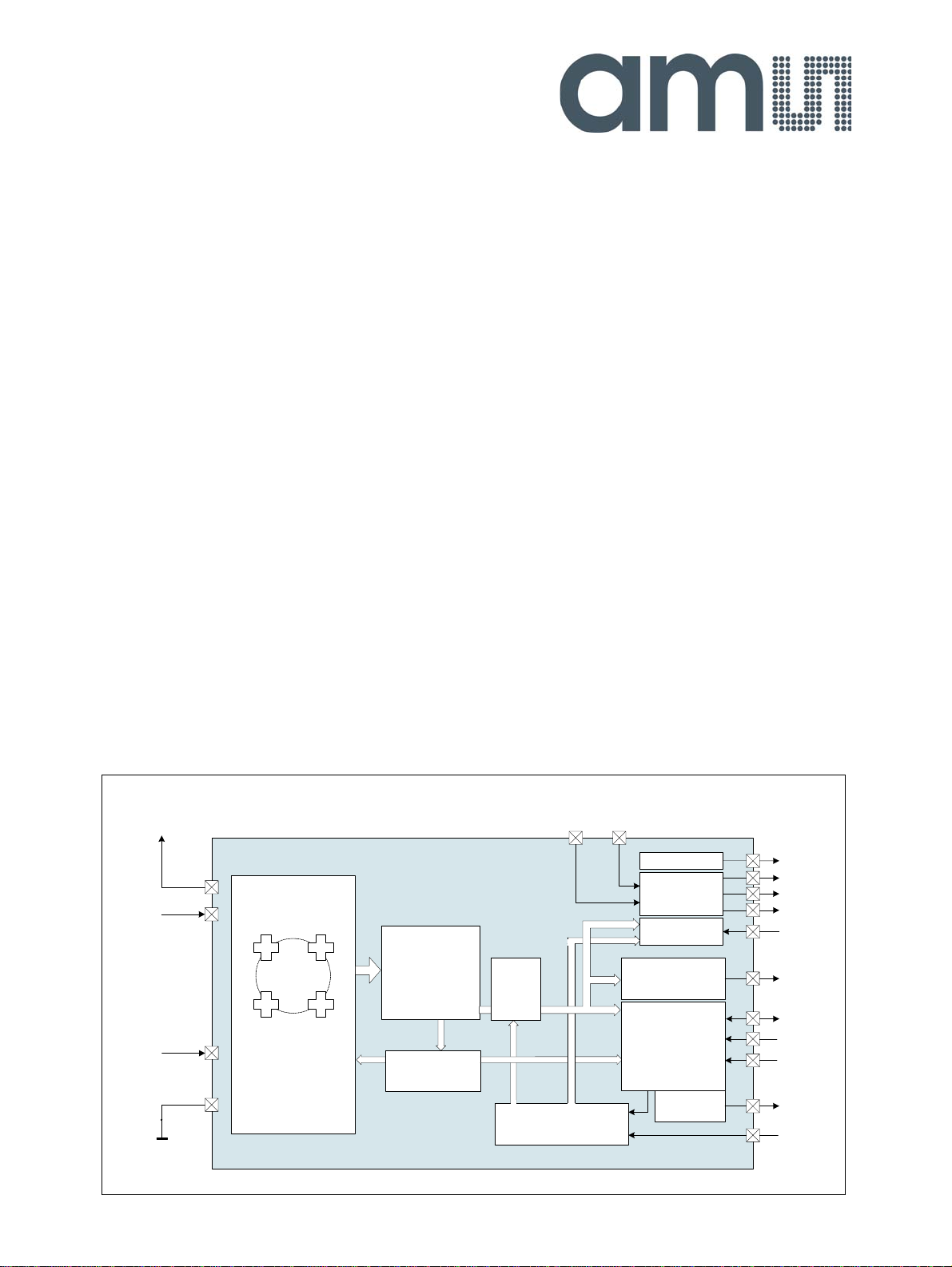

Figure 1. AS5132 Block Diagram
VDDP
TC
Tracking ADC &
Angle Decoder
OTP
DIO
PWM
CLK
PROG
CSN
PWM Decoder
AGC
Mag
Angle
Commutation
Interface
U_A
V_B
W_I
VDD5V
GND
Pre-Commutation
DIR
COM/INC
Diag
Diagnostic
Test(3:0)
Zero
Adder
Step Mode
S
AS5132
Hall Array &
Frontend
Amplifier
Absolute
Serial
Interface
(SSI)
