ZTLV431
1.24V Cost effective shunt regulator
Description
Ordering information
The ZTLV431 is a three terminal adjustable
shunt regulator offering excellent temperature
stability and output current handling capability
up to 20mA. The output voltage may be set to
any chosen voltage between 1.24 volts and 10
volts by selection of two external divider
resistors.
The ZTLV431 can be used as a replacement for
zener diodes in many applications requiring an
improvement in zener performance.
The ZTLV431 is available as standard as an
A grade which has an initial tolerance of 1%
and covers the -40°C to 125°C temperature
range as standard.
Features
• Low voltage operation V
REF
= 1.24V
• Temperature range -40 to 125°C
• Reference voltage tolerance at 25°C
• 1% ZTLV431A
• Typical temperature drift
• 4 mV (0°C to 70°C)
• 6 mV (-40°C to 85°C)
• 11mV (-40°C to 125°C
•100A minimum cathode current
•0.25⍀ typical output impedance
• Adjustable output voltage 1.24V to 10V
Applications
• Opto-coupler linearization
• Linear regulators
• Improved Zener
• Variable reference

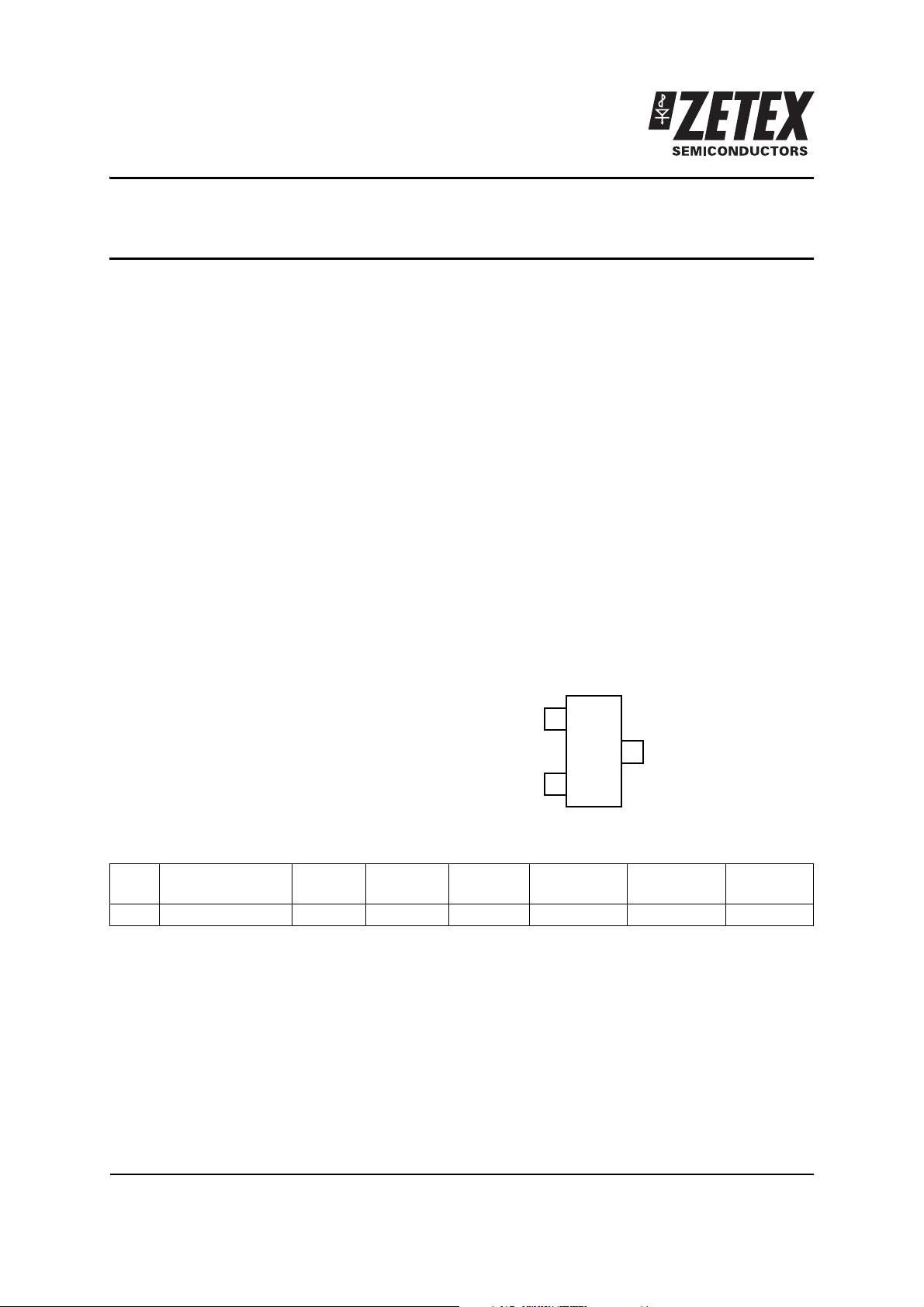

Pin connections
Tol. Order code Package Part mark Status Reel size
(inches)
Tape width
(mm)
Quantity
per reel
1% ZTLV431AFTA SOT23 S1A Active 7” (180mm) 8 3,000
3Ref
ZTLV431_F (SOT23)
(top view)
Cathode
2
1 Anode
