OPERATIONAL AMPLIFIERS
■ LOW SUPPLY CURRENT : 375µA/op.
(@ V
CC
= 5V)
■ LOW INPUT BIAS CURRENT : 20nA
■ MEDIUM SPEED : 0.9MHz
■ LOW INPUT OFFSET VOLTAGE : 0.5mV typ
for TSM104A
■ WIDE POWER SUPPLY RANGE : ±1.5V to
±15V
VOLTAGE REFERENCE
■ ADJUSTABLE OUTPUT VOLTAGE :
V
ref
to 36V
■ 0.4% AND 1% VOLTAGE PRECISION
■ SINK CURRENT CAPABILITY : 1 to 100mA
■ TYPICAL OUTPUT IMPEDANCE : 0.2Ω
DESCRIPTION
The TSM104 is a monolithic IC that includes four
op-amps and an adjustable shunt voltage refer-
ence. This device is offering space and cost sav-
ing in many applications like power supply man-
agement or data acquisition systems.
ORDER CODE
N = Dual in Line Package (DIP)
D = Small Outline Package (SO) - also available in Tape & Reel (DT)

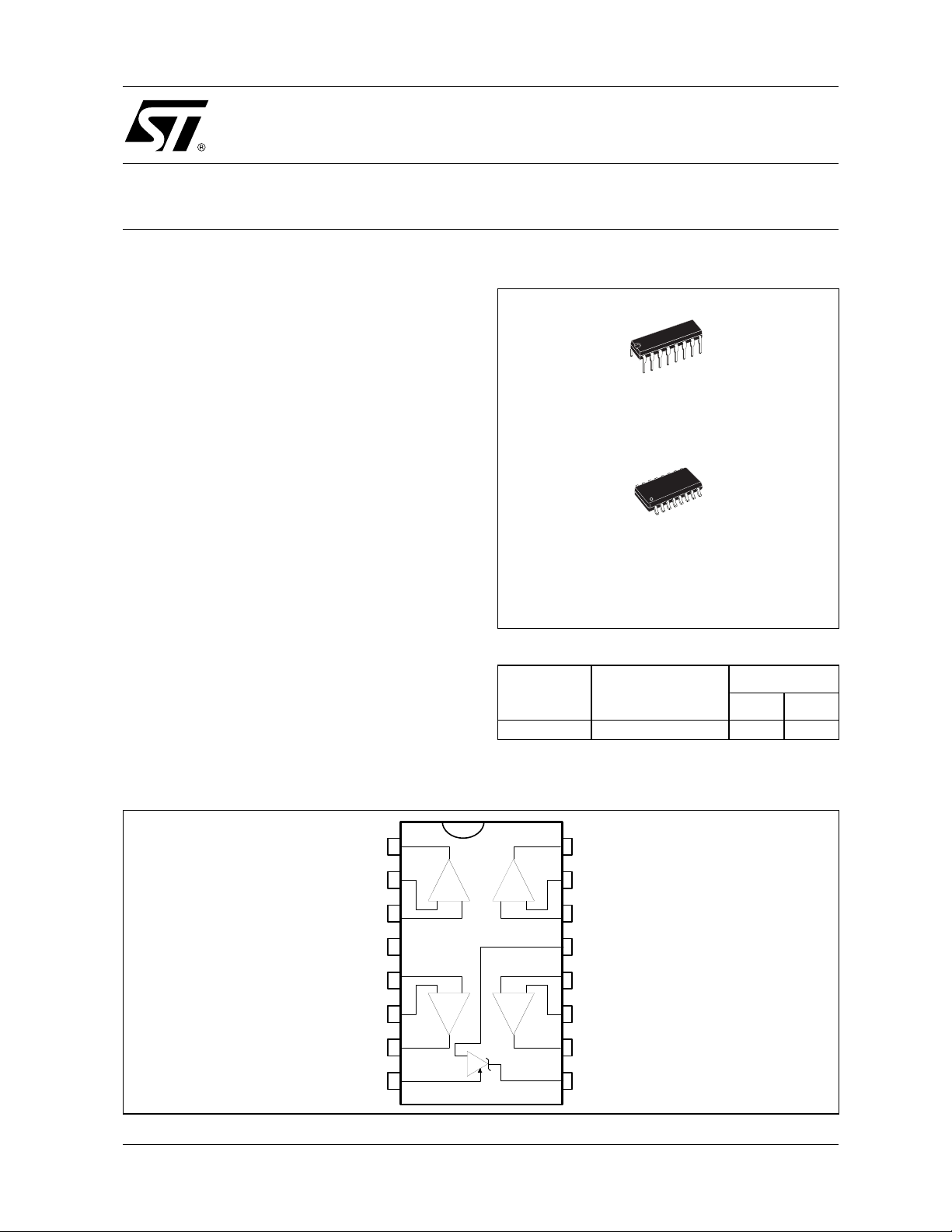

PIN CONNECTIONS (top view)
Part Number Temperature Range
Package
ND
TSM104I/AI -40°C, +105°C
••
N
DIP16
(Plastic Package)
D
SO16
(Plastic Micropackage)
1
2
3
4
13
14
15
16
5
6
7
8
12
11
10
9
Output 1
Inverting Input 1
Non-inverting Input 1
V
CC
+
Non-inverting Input 2
Inverting Input 2
Output 2
Adjust
Output 4
Inverting Input
Non-inverting Input 4
Non-inverting Input 3
Inverting Input 3
Output 3
Cathode
V
CC
-
TSM104/A
QUAD OPERATIONAL AMPLIFIER AND
PROGRAMMABLE VOLTAGE REFERENCE
January 2003
NOT FOR NEW DESIGN - REPLACED BY TSM104W
Obsolete Product(s) - Obsolete Product(s)
