RP
RSL2RSL3
RSH2RSH3
TPS386596
SENSE1
SENSE3
SENSE2
VCC
GND
DSP
CPU
FPGA
RESET
____
RESET
____
DC-DC
LDO
DC-DC
LDO
DC-DC
LDO
VCC1 VCC3VCC2
VIN
DC-DC
LDO
3.3V
SENSE4
VCC4
RSL4
RSH4
Sub CPU
MSP430
MR
__
VDD
V
MON(2)
V
MON(3)
V
MON(4)
V
MON(1)
TPS386596
Product
Folder
Sample &
Buy
Technical
Documents
Tools &
Software
Support &
Community
Reference
Design
TPS386596
SLVSA75A –JULY 2010–REVISED AUGUST 2015
TPS386596 Quad Reset Supervisor With Manual Reset Input
1 Features 3 Description
The TPS386596 device monitors four power rails and
1
• Four Channel Voltage Detector
asserts the RESET signal when any of the SENSE
• Threshold Accuracy: 0.25% (typ)
inputs drop below the respective thresholds. SVS-1
• Fixed 50-ms RESET Delay Time
can be used to monitor a 3.3-V nominal power supply
with no external components required. SVS-2, SVS-3,
• Active-Low Manual Reset Input
and SVS-4 are adjustable using external resistors
• Very Low Quiescent Current: 7 µA (Typical)
and can be used to monitor any power-supply voltage
• SVS-1: Fixed Threshold for Monitoring 3.3 V
higher than 0.4 V. All SENSE inputs have a threshold
accuracy of 0.25% (typical). The TPS386596L33 also
• SVS-2/3/4: Adjustable Threshold Down to 0.4 V
has an active-low manual reset (MR) that can assert
• Open-Drain RESET Output
the RESET signal as desired by the application. The
• Space-Saving, 8-pin MSOP Package
open-drain, active-low RESET output deasserts after
a fixed 50-ms delay.
2 Applications
The TPS386596 has a low quiescent current of 7 µA
• Notebook/Desktop Computers
(typical) and is available in a space-saving, 8-pin
• Industrial Equipment MSOP package.
• Telecom, Networking Infrastructure
Device Information
(1)
• Server, Storage Equipment
PART NUMBER PACKAGE BODY SIZE (NOM)
• DSP and Microcontroller Applications
TPS386596 VSSOP (8) 5.00 mm × 3.00 mm
• FPGA/ASIC Applications
(1) For all available packages, see the orderable addendum at
the end of the data sheet.

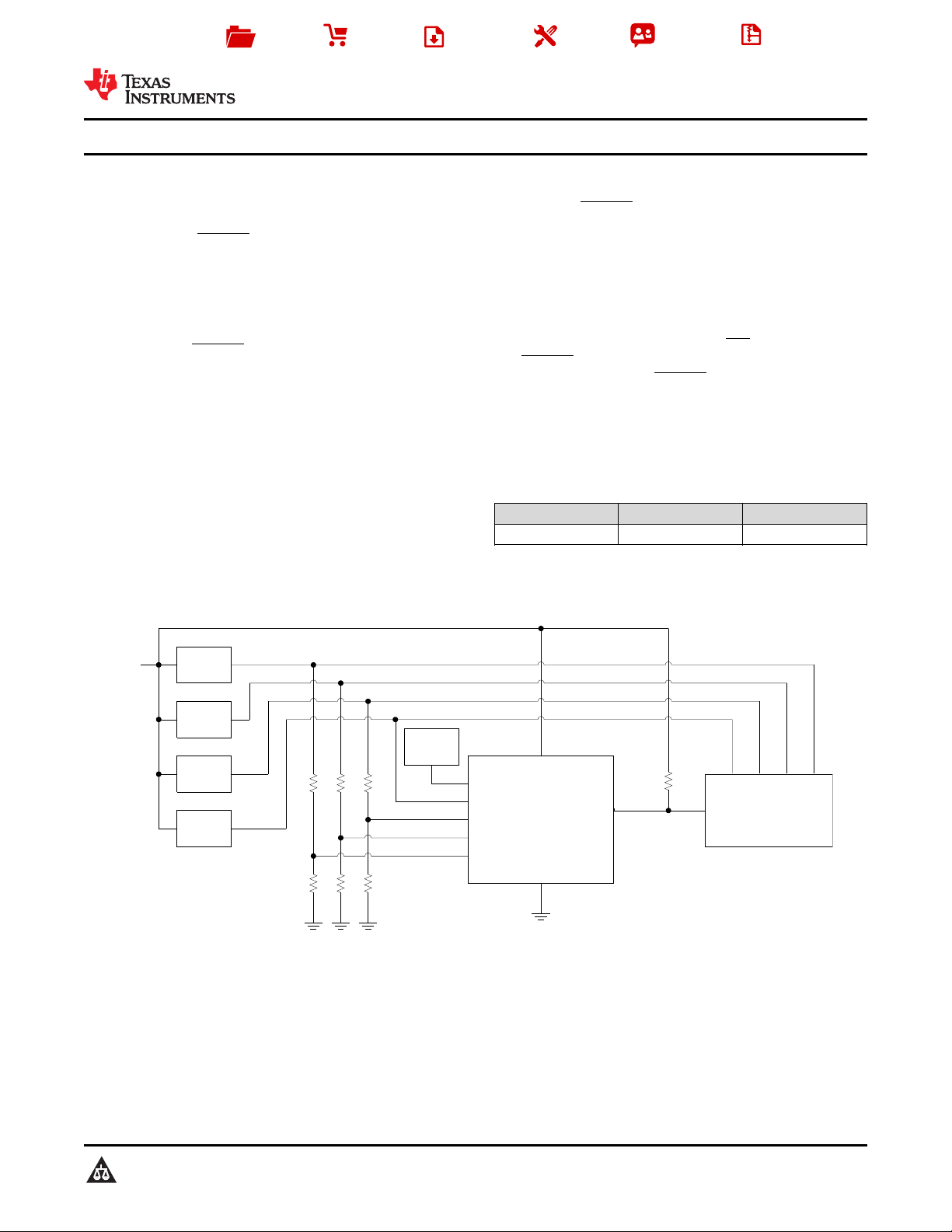

TPS386596 Typical Application Circuit
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
