Semiconductor Components Industries, LLC, 2013
May, 2013 − Rev. 3
1 Publication Order Number:
NCP662/D
NCP662, NCV662, NCP663,
NCV663
100 mA CMOS Low Iq
Low-Dropout Voltage
Regulator
This series of fixed output low−dropout linear regulators are
designed for handheld communication equipment and portable battery
powered applications which require low quiescent current. This series
features an ultra−low quiescent current of 2.5 A. Each device
contains a voltage reference unit, an error amplifier, a PMOS power
transistor, resistors for setting output voltage, current limit, and
temperature limit protection circuits. The NCP662/NCV662 series
provides an enable pin for ON/OFF control.
This series has been designed to be used with low cost ceramic
capacitors and requires a minimum output capacitor of 0.1 F. The
device is housed in the micro−miniature SC82−AB surface mount
package. Standard voltage versions are 1.5, 1.8, 2.5, 2.7, 2.8, 3.0, 3.3,
and 5.0 V.
Features
Low Quiescent Current of 2.5 A Typical
Low Output Voltage Option
Output Voltage Accuracy of 2.0%
Temperature Range for NCV662/NCV663 −40C to 125C
Temperature Range for NCP662/NCP663 −40C to 85C
NCP662/NCV662 Provides as Enable Pin
NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
Pb−Free Packages are Available
Typical Applications
Battery Powered Instruments
Hand−Held Instruments
Camcorders and Cameras
Automotive Infotainment
See detailed ordering and shipping information in the package
dimensions section on page 8 of this data sheet.
ORDERING INFORMATION

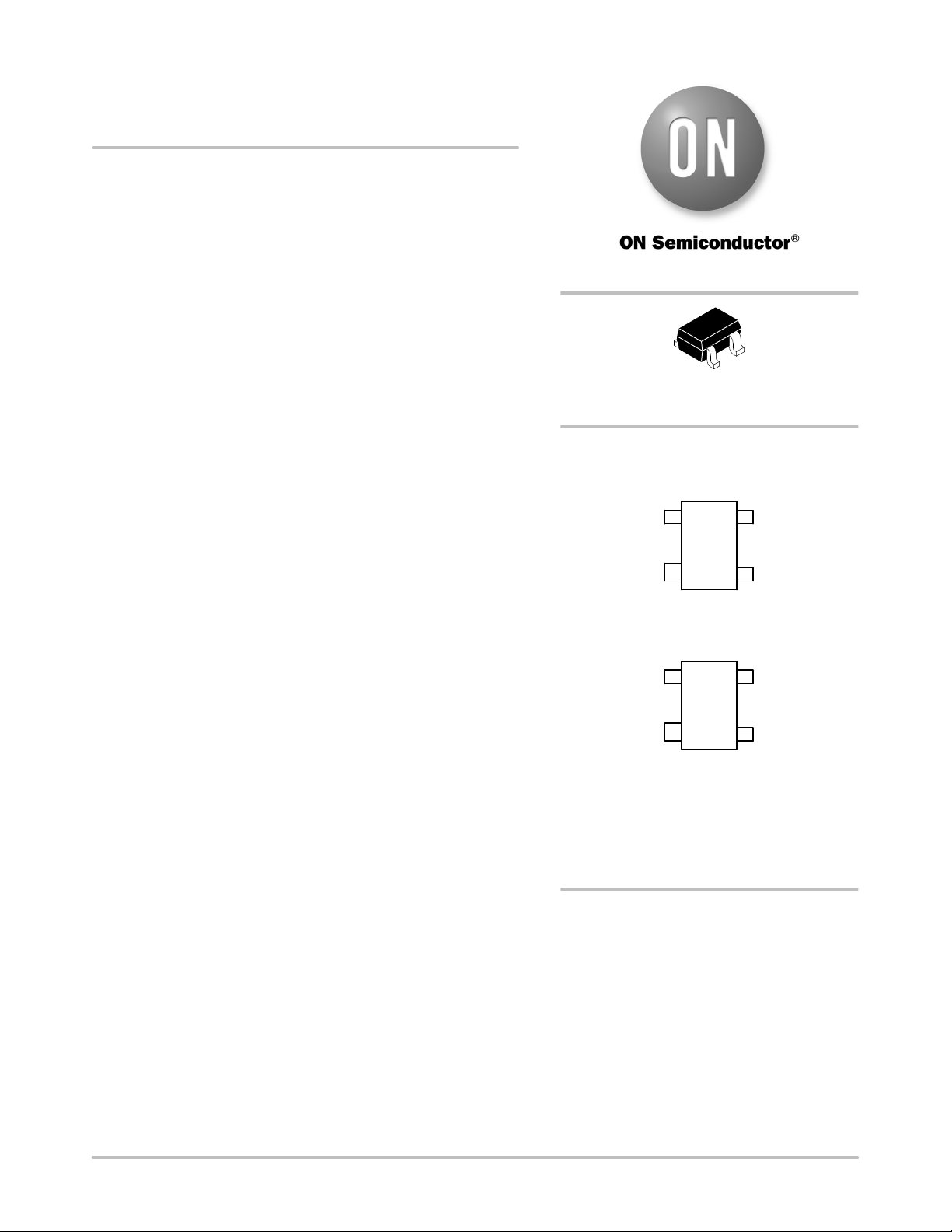

SC−82AB
CASE 419C
PIN CONNECTIONS &
MARKING DIAGRAMS
GND
(NCP662/NCV662 Top View)
1
2
4
3
V
in
Enable
V
out
xxxMG
G
GND
1
2
4
3
V
in
N/C
V
out
xxxMG
G
(NCP663/NCV663 Top View)
http://onsemi.com
xxx = Specific Device Code
M = Month Code*
G = Pb−Free Package
(Note: Microdot may be in either location)
