MIC841/842
Comparator with 1.25% Reference
and Adjustable Hysteresis
Teeny™ is a trademark of Micrel, Inc.
Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (408) 944-0800 • fax + 1 (408) 474-1000 • http://www.micrel.com
General Description
The MIC841 and MIC842 are micropower, precision
voltage comparators with an on-chip voltage reference.
Both devices are intended for voltage monitoring
applications. External resistors are used to set the voltage
monitor threshold. When the threshold is crossed,
the outputs switch polarity.
The MIC842 incorporates a voltage reference and
comparator with fixed internal hysteresis; two external
resistors are used to set the switching threshold voltage.
The MIC841 provides a similar function with user
adjustable hysteresis; this part requires three external
resistors to set the upper and lower thresholds
(the difference between the threshold voltages being the
hysteresis voltage).
Both the MIC841 and MIC842 are available with push-pull
or open-drain output stage. The push-pull output stage is
configured either active high or active low; the open-drain
output stage is only configured active low.
Supply current is extremely low (1.5μA, typical), making it
ideal for portable applications.
The MIC841/2 is supplied in Micrel’s Teeny™ 5-pin
SC-70 package.
Data sheets and support documentation are found on the
Micrel web site: www.micrel.com
.
Features
• 1.5V to 5.5V operating range
• 1.5μA typical supply current
• ±1.25% voltage threshold accuracy
• 10nA max input leakage current over temperature
• 10µs propagation delay
• Externally adjustable hysteresis (MIC841)
• Internal 20mV hysteresis (MIC842)
• Output options
− Push-pull, active high
− Push-pull, active low
− Open drain, active low
• Open drain output can be pulled to 6V regardless of V
DD
• Immune to brief input transients
• Teeny™ 5-pin SC-70 package
Applications
• Smart phones
• PDAs
• Precision battery monitoring
• Battery chargers
______________________________________________________________________________________________________________________

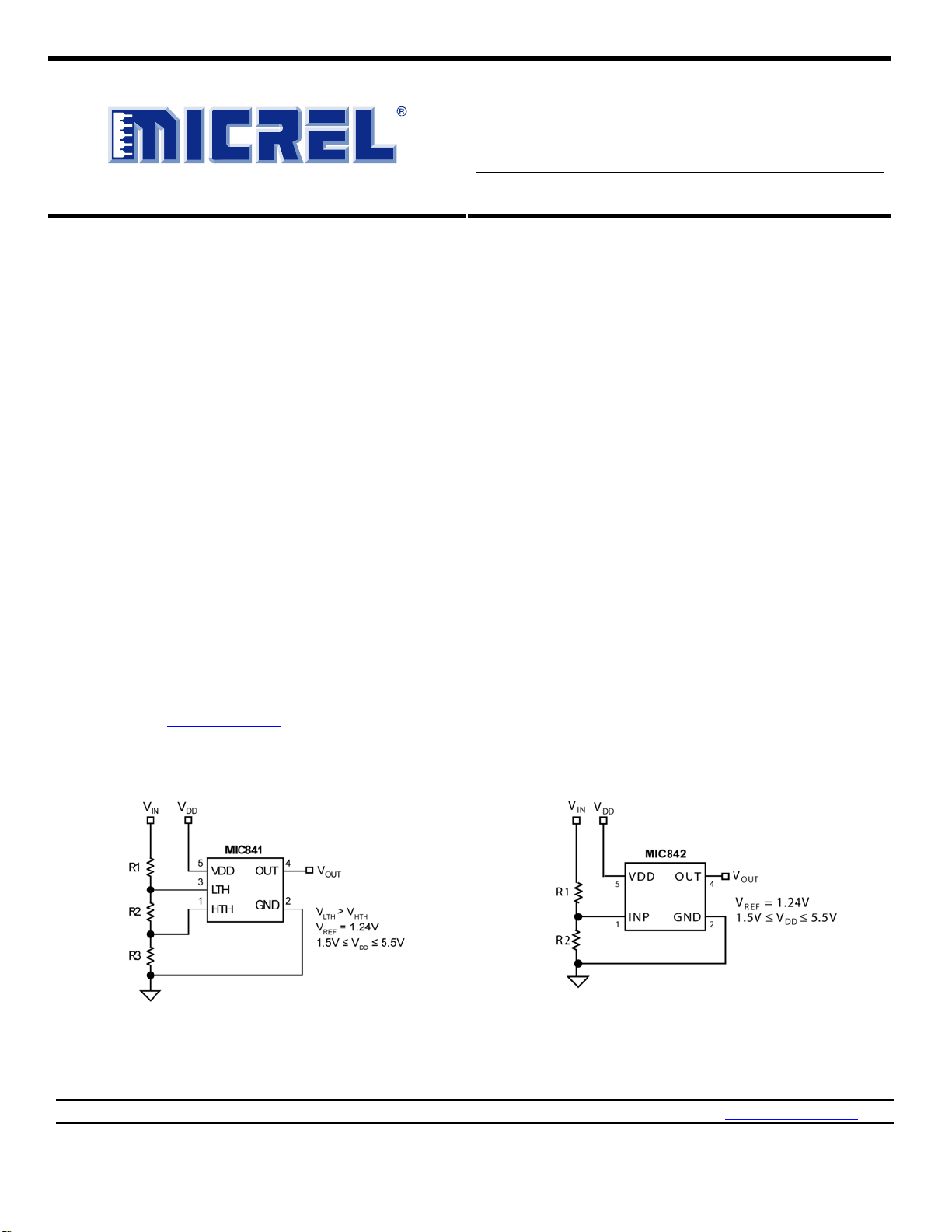

Typical Application
Threshold Detection with
Adjustable Hysteresis
Threshold Detector with
Internal Fixed Hysteresis
June 2012
M9999-062012-C
