LM611
www.ti.com
SNOSC08C –MAY 1998–REVISED MARCH 2013
LM611 Operational Amplifier and Adjustable Reference
Check for Samples: LM611
1
FEATURES
DESCRIPTION
The LM611 consists of a single-supply op-amp and a
2
OP AMP
programmable voltage reference in one space saving
• Low Operating Current: 300 μA (op amp)
8-pin package. The op-amp out-performs most single-
• Wide Supply Voltage Range: 4V to 36V
supply op-amps by providing higher speed and
bandwidth along with low supply current. This device
• Wide Common-Mode Range: V
−
to (V
+
−1.8V)
was specifically designed to lower cost and board
• Wide Differential Input Voltage: ±36V
space requirements in transducer, test, measurement
• Available in Low Cost 8-pin DIP
and data acquisition systems.
• Available in Plastic Package Rated for Military
Combining a stable voltage reference with a wide
Temperature Range Operation
output swing op-amp makes the LM611 ideal for
REFERENCE
single supply transducers, signal conditioning and
bridge driving where large common-mode signals are
• Adjustable Output Voltage: 1.2V to 6.3V
common. The voltage reference consists of a reliable
• Tight Initial Tolerance Available: ±0.6%
band-gap design that maintains low dynamic output
• Wide Operating Current Range: 17 μA to 20
impedance (1Ω typical), excellent initial tolerance
mA
(0.6%), and the ability to be programmed from 1.2V
to 6.3V via two external resistors. The voltage
• Reference Floats Above Ground
reference is very stable even when driving large
• Tolerant of Load Capacitance
capacitive loads, as are commonly encountered in
CMOS data acquisition systems.
APPLICATIONS
As a member of TI's Super-Block family, the LM611
• Transducer Bridge Driver
is a space-saving monolithic alternative to a multi-
chip solution, offering a high level of integration
• Process and Mass Flow Control Systems
without sacrificing performance.
• Power Supply Voltage Monitor
• Buffered Voltage References for A/D's

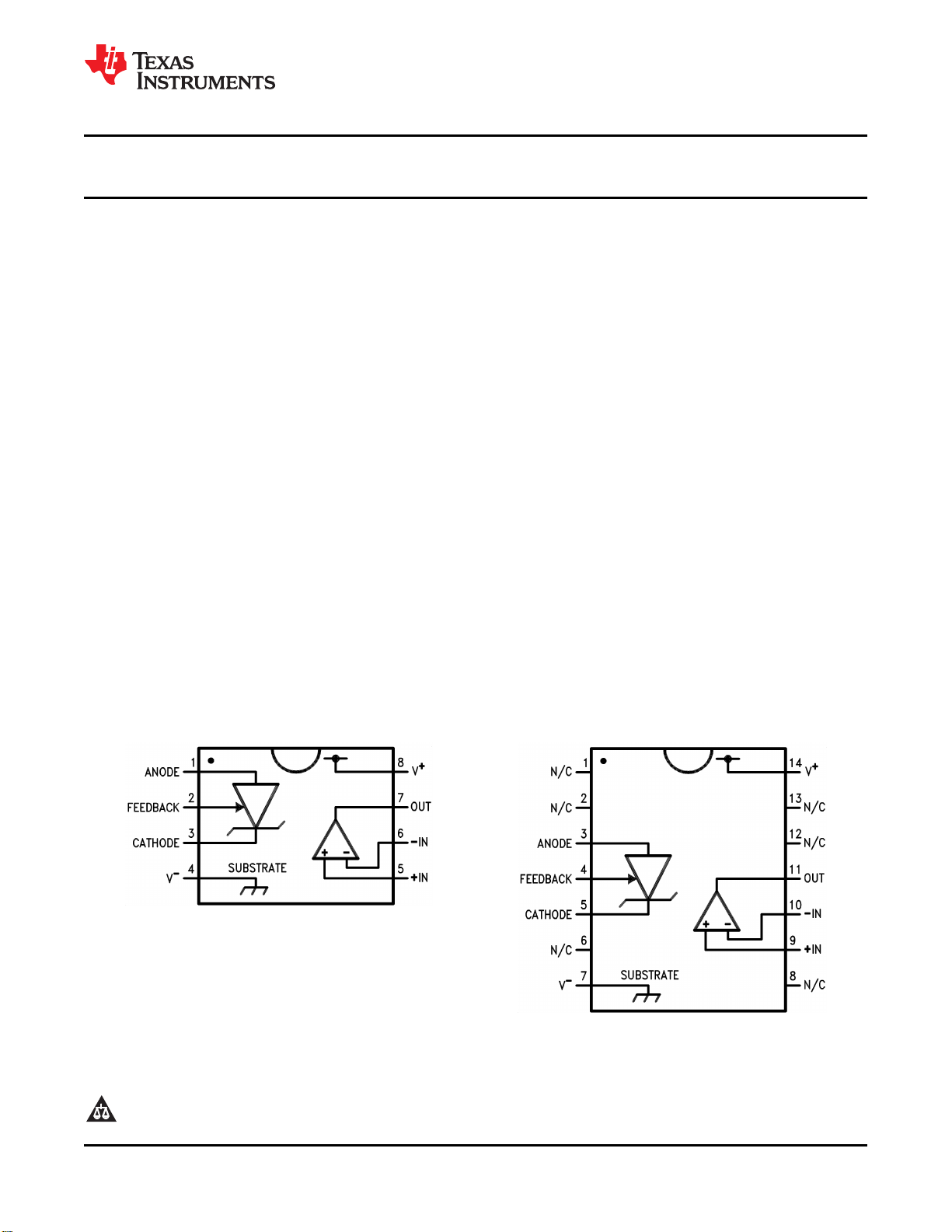

Connection Diagrams
Figure 1. Hermetic Dual-In-Line Package Figure 2. Plastic Surface Mount Narrow Package
