FN3109.5
HI-565A
High Speed, Monolithic D/A Converter
with Reference
The HI-565A is a fast, 12-bit, current output, digital-to-analog
converter. The monolithic chip includes a precision voltage
reference, thin-film R2R ladder, reference control amplifier
and twelve high speed bipolar current switches.
The Intersil dielectric isolation process provides latch free
operation while minimizing stray capacitance and leakage
currents, to produce an excellent combination of speed and
accuracy. Also, ground currents are minimized to produce a
low and constant current through the ground terminal, which
reduces error due to code dependent ground currents.
HI-565A dice are laser trimmed for a maximum integral
nonlinearity error of 0.5 LSB at 25
o
C. In addition, the low
noise buried zener reference is trimmed both for absolute
value and temperature coefficient. Power dissipation is
typically 250mW, with 15V supplies.
The HI-565A is offered in both commercial and military
grades. See Ordering Information.
Features
• 12-Bit DAC and Reference on a Single Chip
• Pin Compatible With AD565A
• Very High Speed: Settles to0.5 LSB in 250ns (Max)
Full Scale Switching Time 30ns (Typ)
• Guaranteed For Operation With 12V Supplies
• Monotonicity Guaranteed Over Temperature
• Nonlinearity Guaranteed Over Temp (Max) . . . . 0.5 LSB
• Low Gain Drift (Max, DAC Plus Ref) . . . . . . . . .25ppm/
o
C
• Low Power Dissipation . . . . . . . . . . . . . . . . . . . . .250mW
Applications
• CRT Displays
• High Speed A/D Converters
• Signal Reconstruction
• Waveform Synthesis
Ordering Information
PART NUMBER LINEARITY (INL) LINEARITY (DNL) TEMP. RANGE (
o
C) PACKAGE PKG. NO.
HI1-565ATD-2 0.25 LSB 0.50 LSB -55 to 125 24 Ld SBDIP D24.6
HI1-565ASD/883 0.50 LSB 0.50 LSB -55 to 125 24 Ld SBDIP D24.6

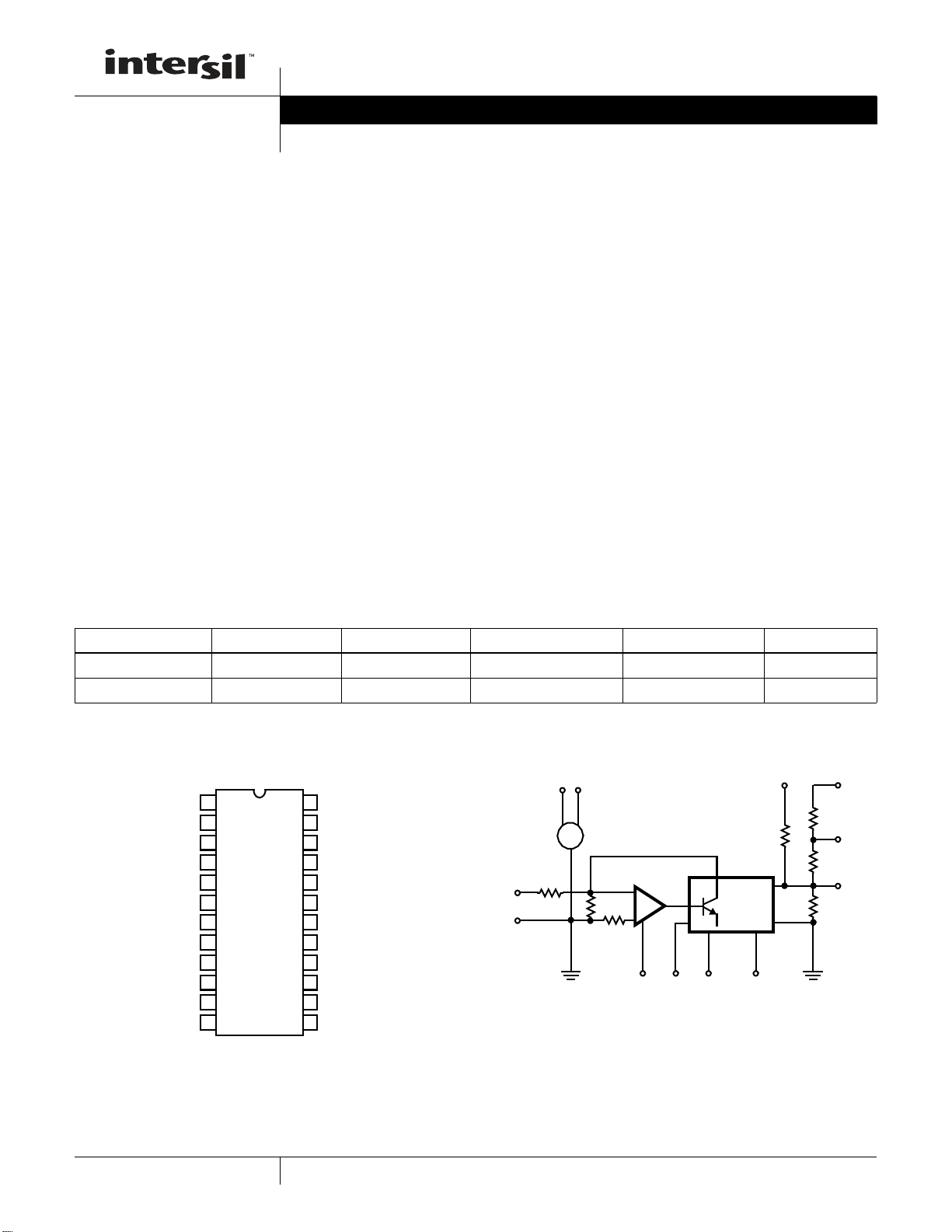

Pinout
HI-565A (SBDIP)
TOP VIEW
Functional Diagram
1
2
3
4
5
6
7
8
9
10
11
12
NC
NC
V
CC
REF OUT (+10V)
REF GND
REF IN
-V
EE
BIPOLAR R IN
IDAC OUT
10V SPAN R
20V SPAN R
POWER GND
16
17
18
19
20
21
22
23
24
15
14
13
BIT 1 (MSB) IN
BIT 3 IN
BIT 4 IN
BIT 5 IN
BIT 6 IN
BIT 8 IN
BIT 10 IN
BIT 11 IN
BIT 12 (LSB) IN
BIT 2 IN
BIT 7 IN
BIT 9 IN
REF
V
CC
43
+
-
6
REF
IN
19.95K
5
REF
GND
3.5K
3K
I
REF
0.5mA
712
-V
EE
PWR
GND
MSB LSB
HI-565A
24 . . . . . .13
BIP. OFF
8
9.95K
DAC
I
O
(4X I
REF
X CODE)
11
20V
SPAN
10V
SPAN
OUT
10
9
2.5K
5K
5K
OUT
+
-
Data Sheet October 1, 2015
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
