DS80EP100EVK / DS38EP100EVK User Guide
June 2007
© National Semiconductor Corporation
DS80EP100-EVK / DS38EP100-EVK User Guide
DS80EP100 5 to 12.5 Gbps, DS38EP100 1 to 5 Gbps Power-Saver Equalizer for Backplanes and Cables
Overview
The DS80EP100 / DS38EP100 evaluation board provides a typical application for the evaluation of the
DS80EP100 / DS38EP100 Power-Saver equalizer. It can be connected to backplanes or cables through SMA
connectors.
Specifications
Data Inputs (IOA+ and IOA-): High-speed data inputs. Acceptable data input speed 5 to 12.5 Gbps
(DS80EP100), and 1 to 5 Gbps (DS38EP100). For more details, please refer to the datasheet.
Outputs (IOB+ and IOB-): High-speed data outputs. For more details, please refer to the datasheet.
Input Voltage (all inputs): up to 3.6V p-p.
Bill of Materials
DESIGNATION QTY DESCRIPTION
JP1,JP2,JP3,JP4 4 Edge Launch SMA 142-0701-851
U1 1 DS80EP100 / DS38EP100

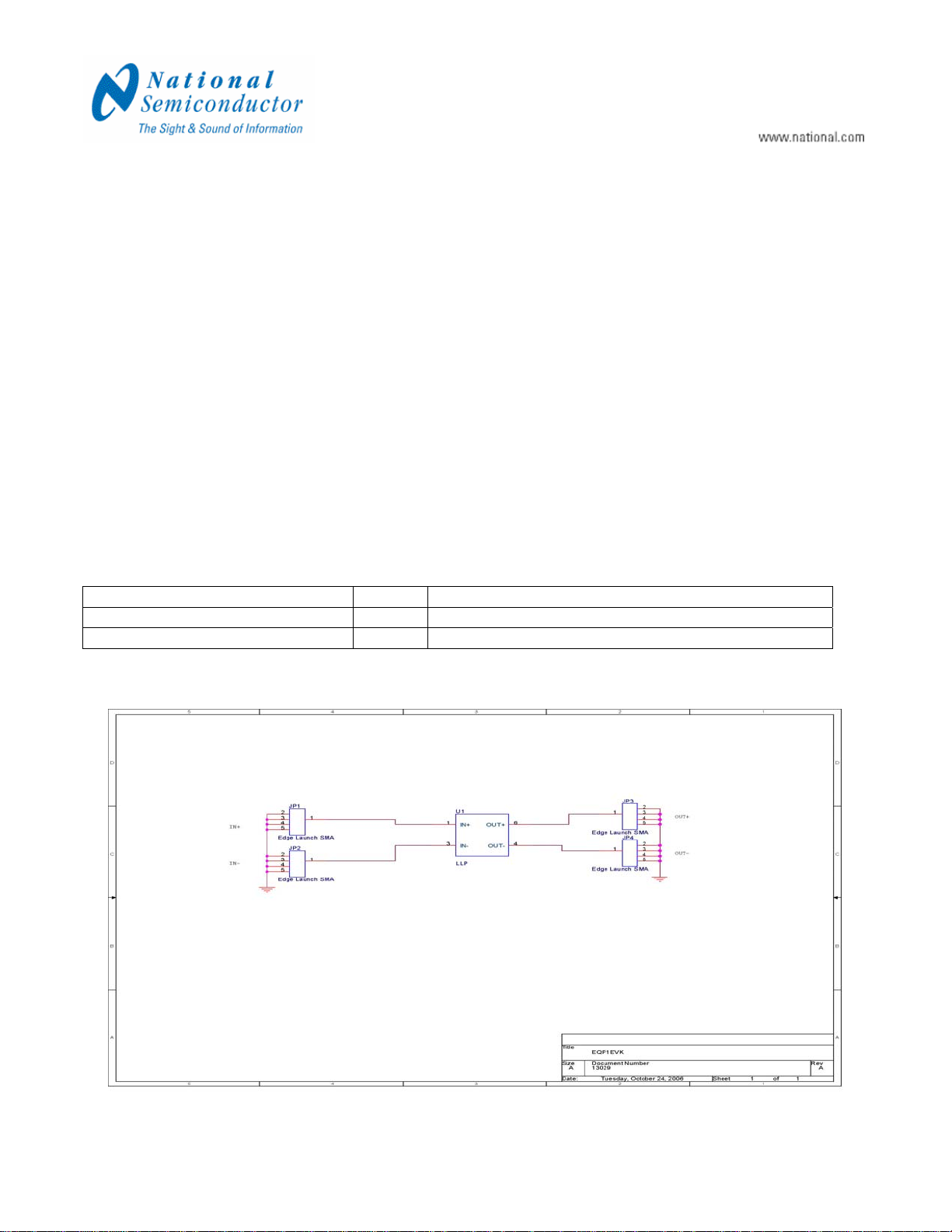

Schematics
