AEAT-601x
Magnetic Encoder Components Kit Assembly Guideline
Application Note 5317
Alignment Tool Set
(Ordered separately – Part number HEDS-8934)
This alignment tool set consist of a gap plate and a
centering jig as listed below:
1. A gap plate with a “U” shaped end – for setting the
magnet height to the IC (on the PCB)
2. The plastic base plate centering jig.- for centering the
plastic base plate to customer shaft.
Description
The objective of this note is to provide a step-by-step
manual assembly guide for the alignment and installa-
tion of the AEAT-601x magnetic encoder to a motor shaft.
In this rst release only a 6 mm shaft is supported. Other
shaft diameter sizes of 2, 4, 8 and 10 mm may be intro-
duced in future product releases.
List of Components
A total of four components are supplied in the magnetic
encoder components kit. (refer to the numbered items in
the exploded view)
1. Plastic housing
– Pre-assembled with PCB glued to the housing.
2. Magnet, plastic hub and snap ring
– Supplied pre-assembled as one unit.
3. Plastic base plate
4. 2 pcs x Screws of M2 x 0.4 x 8
(socket head cap screw, head Ø 3.8 ± 0.18 mm)

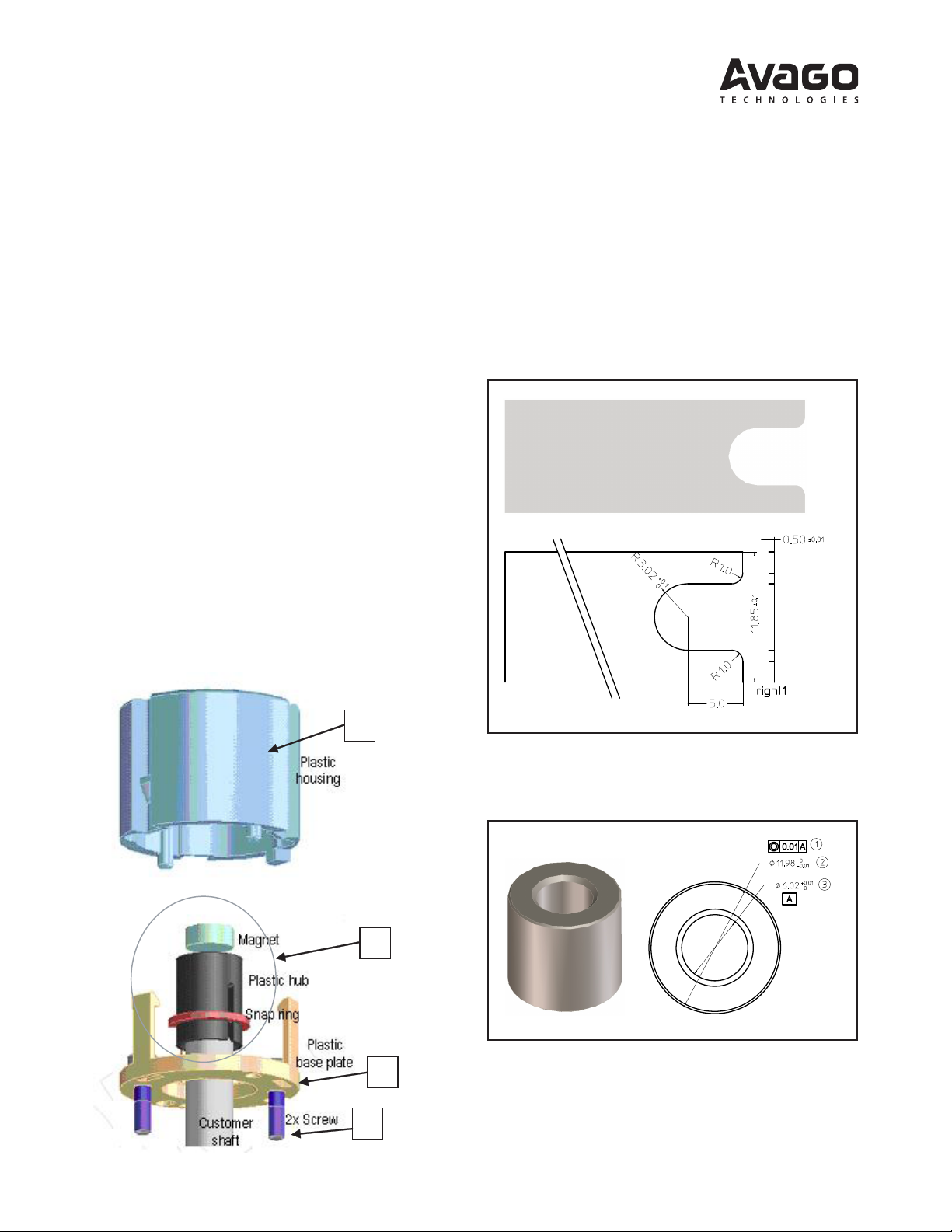

Exploded View of Components
1
2
3
4
