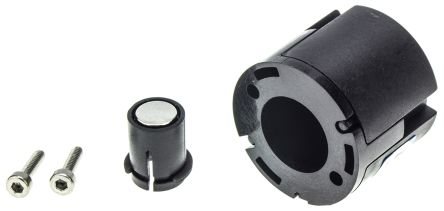

The AEAT-60xx series is a high performance, low cost, optical absolute magnetic encoder module, designed to detect absolute angular position for precise motor feedback.
The magnetic encoder provides design engineers the option of a 10-bit or 12-bit resolution package to cater to different application needs. In addition, the magnetic encoder comes complete with housing that enables easier assembly and integration to customers" applications. Thus eliminating the tedious and cumbersome process of alligning the encoder and codewheel against the rotation shaft of the motor system.
With a wide operating temperature rating of between -40ºC to 125ºC, the AEAT-60xx series assures design engineers of highest level of performance under extreme operating temperature. Coupled with its robust characteristics, the encoder is resistant to oil and dirt influence, making it ideal for industrial automation applications.
With a 3-wire serial interface, the AEAT-60xx series enables the provision of absolute position data in binary format. The encoder is compatible with a wide range of industrial automation applications with a single 5V power supply input, which are accessed through four 0.025 inch square pins located on 0.1 inch centers. In addition, the AEAT-60xx is packaged in a small form factor, allowing design engineers to easily design-in or integrate with space-constraint applications.
For an added advantage to customers" applications, this encoder is competitively priced at half of the cost for a similar housed absolute encoders currently available in the market.
### Features
10/12 bits resolution
Contactless sensing technologies
Wide temperature range from -40° to 125°C
Absolute angular position detection
Synchronous Serial Interface (SSI) output for absolute position data (binary format)
