EVAL-ADG5298EB1Z User Guide
UG-1038
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Te l: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the ADG5298, High Temperature, High Voltage, Latch-Up Proof,
8-Channel Multiplexer
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. 0 | Page 1 of 10
FEATURES
Up to 210
o
C high temperature operation
Supply voltages
Dual supply: ±5 V to ±22 V
Single supply: 8 V to 44 V
Parallel interface compatible with 3 V logic
EVALUATION KIT CONTENTS
EVAL-ADG5298EB1Z evaluation board
ONLINE RESOURCES
Documents Needed
ADG5298 data sheet
EVAL-ADG5298EB1Z user guide
EQUIPMENT NEEDED
DC voltage source
±22 V for dual supply
44 V for single supply
Digital logic supply: 3 V to 5 V
Analog signal source
Method to measure voltage, such as a digital multimeter (DMM)
GENERAL DESCRIPTION
The EVAL-ADG5298EB1Z is the evaluation board for the
ADG5298 high temperature 8:1 multiplexer. The board assembly
is constructed with high temperature compliant materials and is
suitable for short duration evaluation up to 210°C.

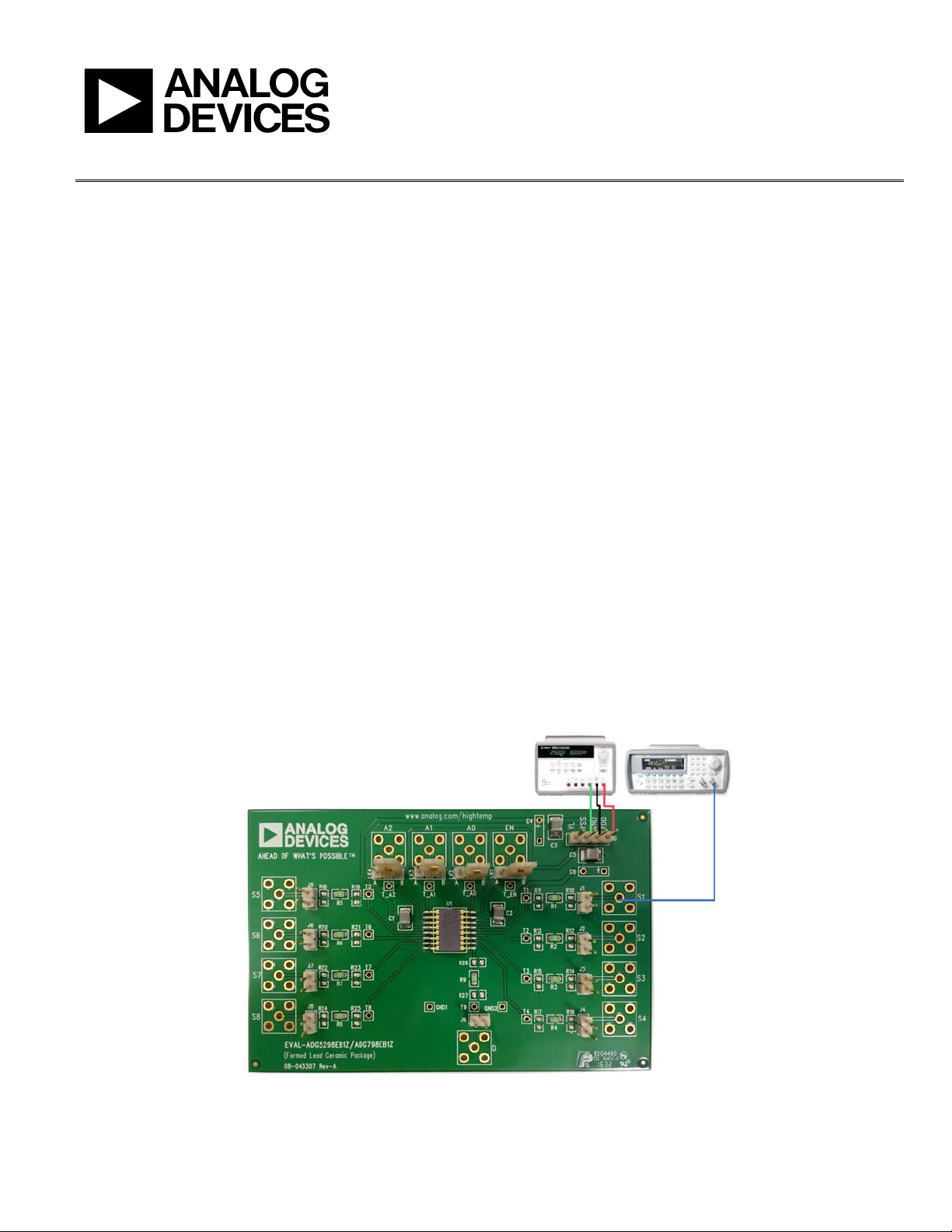

Figure 1 shows the EVAL-ADG5298EB1Z in a typical evaluation
setup. The ADG5298 is soldered to the center of the EVAL-
ADG5298EB1Z evaluation board, and headers are provided to
connect to each of the source and drain pins. A 4-pin header
powers the device and provides a user defined digital logic
supply voltage.
Full specifications on the ADG5298 are available in the
ADG5298 data sheet, which should be consulted in conjunction
with this user guide when using the EVAL-ADG5298EB1Z
evaluation board.
TYPICAL EVALUATION SETUP
14945-001
POWER SUPPLY
SIGNAL GENERATOR
Figure 1. EVAL-ADG5298EB1Z, Power Supply, and Signal Generator
