ADC10154/ADC10158
10-Bit Plus Sign 4 µs ADCs with 4- or 8-Channel MUX,
Track/Hold and Reference
General Description
The ADC10154 and ADC10158 are CMOS 10-bit plus sign
successive approximationA/D converters with versatile ana-
log input multiplexers, track/hold function and a 2.5V
band-gap reference. The 4-channel or 8-channel multiplex-
ers can be software configured for single-ended, differential
or pseudo-differential modes of operation.
The input track/hold is implemented using a capacitive array
and sampled-data comparator.
Resolution can be programmed to be 8-bit, 8-bit plus sign,
10-bit or 10-bit plus sign. Lower-resolution conversions can
be performed faster.
The variable resolution output data word is read in two bytes,
and can be formatted left justified or right justified, high byte
first.
Applications
n Process control
n Instrumentation
n Test equipment
Features
n 4- or 8- channel configurable multiplexer
n Analog input track/hold function
n 0V to 5V analog input range with single +5V power
supply
n −5V to +5V analog input voltage range with
±
5V
supplies
n Fully tested in unipolar (single +5V supply) and bipolar
(dual
±
5V supplies) operation
n Programmable resolution/speed and output data format
n Ratiometric or Absolute voltage reference operation
n No zero or full scale adjustment required
n No missing codes over temperature
n Easy microprocessor interface
Key Specifications
n Resolution 10-bit plus sign
n Integral linearity error
±
1 LSB (max)
n Unipolar power dissipation 33 mW (max)
n Conversion time (10-bit + sign) 4.4 µs (max)
n Conversion time (8-bit) 3.2 µs (max)
n Sampling rate (10-bit + sign) 166 kHz
n Sampling rate (8-bit) 207 kHz
n Band-gap reference 2.5V
±
2.0% (max)

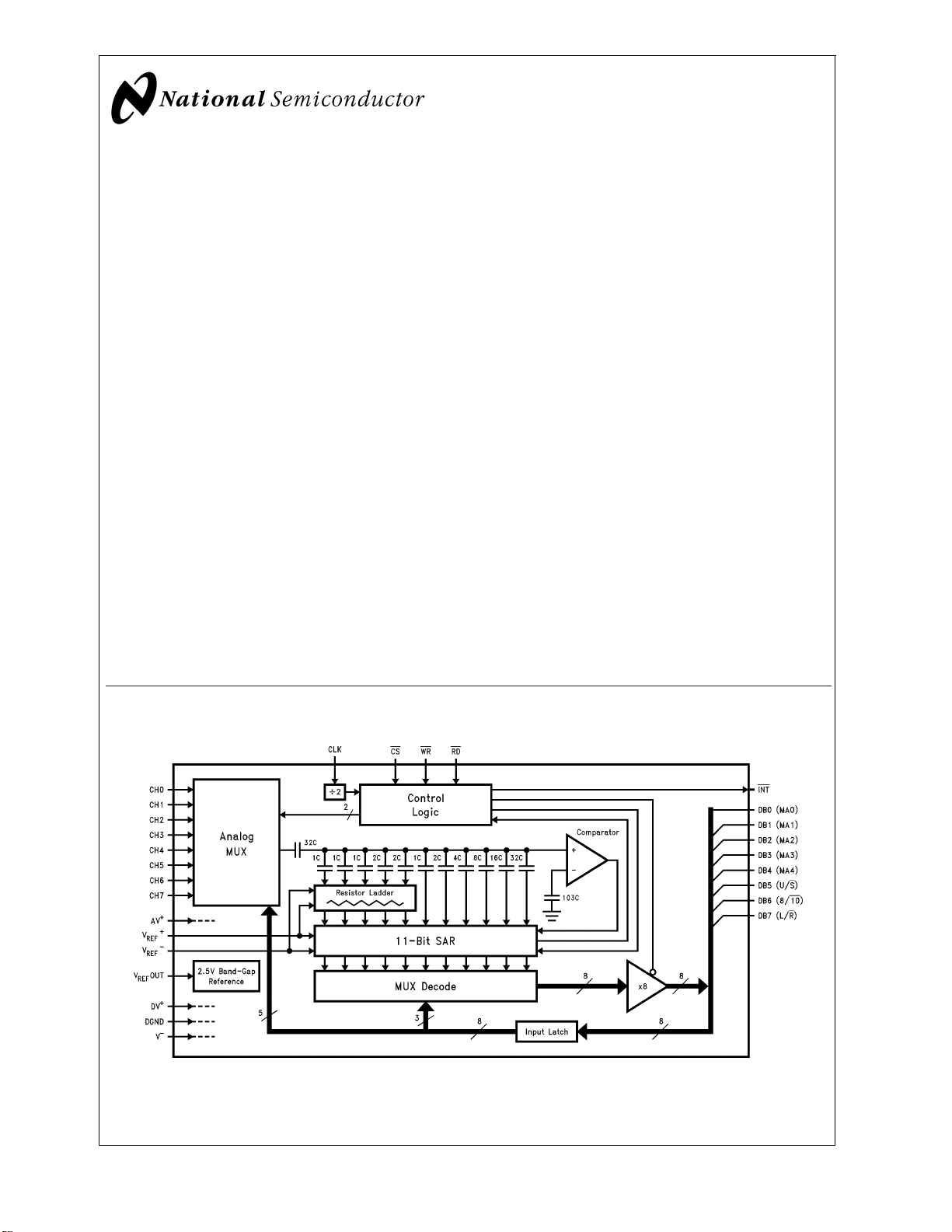

ADC10158 Simplified Block Diagram
DS011225-1
November 1999
ADC10154/ADC10158 10-Bit Plus Sign 4 µs ADCs with 4- or 8-Channel MUX, Track/Hold and
Reference
