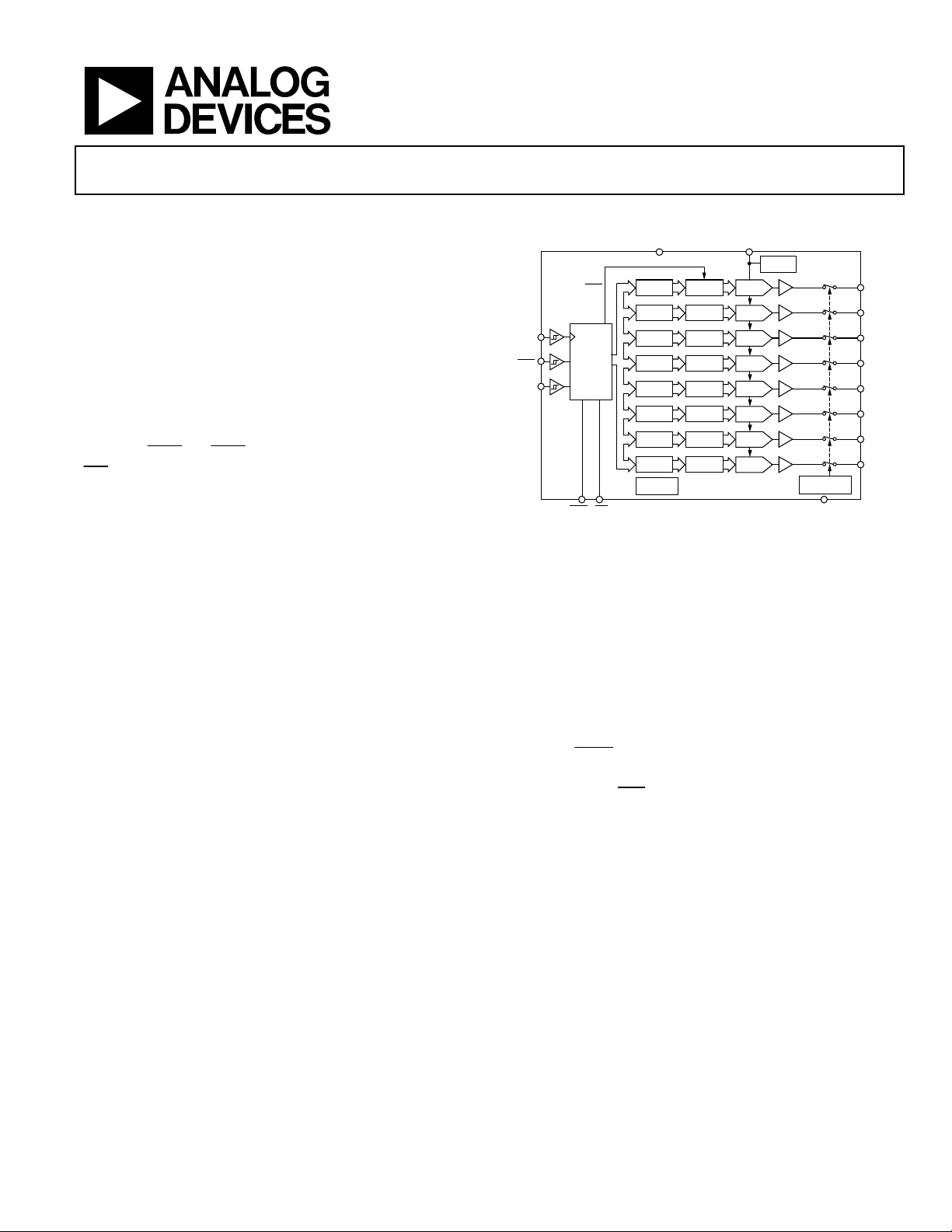

Octal, 12-/14-/16-Bit DAC with 5 ppm/°C
On-Chip Reference in 14-Lead TSSOP
AD5628/AD5648/AD5668
Rev. B
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700 www.analog.com
Fax: 781.461.3113 ©2005–2009 Analog Devices, Inc. All rights reserved.
FEATURES
Low power, smallest-pin-compatible octal DACs
AD5668: 16 bits
AD5648: 14 bits
AD5628: 12 bits
14-lead/16-lead TSSOP
On-chip 1.25 V/2.5 V, 5 ppm/°C reference
Power down to 400 nA @ 5 V, 200 nA @ 3 V
2.7 V to 5.5 V power supply
Guaranteed monotonic by design
Power-on reset to zero scale or midscale
3 power-down functions
Hardware
LDAC
and
LDAC
override function
CLR
function to programmable code
Rail-to-rail operation
APPLICATIONS
Process control
Data acquisition systems
Portable battery-powered instruments
Digital gain and offset adjustment
Programmable voltage and current sources
Programmable attenuators
FUNCTIONAL BLOCK DIAGRAM
INTERFACE
LOGIC
INPUT
REGISTER
DIN
LDAC
GND
V
OUT
H
V
DD
LDAC
1
V
REFIN
/
V
REFOUT
SYNC
SCLK
AD5628/AD5648/AD5668
CLR
1
1
RU-16 PACKAGE ONLY
1.25V/2.5V
REF
V
OUT
A
V
OUT
B
V
OUT
C
V
OUT
D
V
OUT
E
V
OUT
F
V
OUT
G
DAC
REGISTER
STRING
DAC A
BUFFER
INPUT
REGISTER
DAC
REGISTER
STRING
DAC B
BUFFER
INPUT
REGISTER
DAC
REGISTER
STRING
DAC C
BUFFER
INPUT
REGISTER
DAC
REGISTER
STRING
DAC D
BUFFER
INPUT
REGISTER
DAC
REGISTER
STRING
DAC E
BUFFER
INPUT
REGISTER
DAC
REGISTER
STRING
DAC F
BUFFER
INPUT
REGISTER
DAC
REGISTER
STRING
DAC G
BUFFER
INPUT
REGISTER
DAC
REGISTER
STRING
DAC H
BUFFER
POWER-DOWN
LOGIC
POWER-ON
RESET
05302-001
Figure 1.
GENERAL DESCRIPTION
The AD5628/AD5648/AD5668 devices are low power, octal,
12-/14-/16-bit, buffered voltage-output DACs. All devices
operate from a single 2.7 V to 5.5 V supply and are guaranteed
monotonic by design.
The AD5628/AD5648/AD5668 have an on-chip reference with
an internal gain of 2. The AD5628/AD5648/AD5668-1 have a
1.25 V 5 ppm/°C reference, giving a full-scale output range of
2.5 V; the AD5628/AD5648/AD5668-2, -3 have a 2.5 V 5 ppm/°C
reference, giving a full-scale output range of 5 V. The on-board
reference is off at power-up, allowing the use of an external refer-
ence. The internal reference is enabled via a software write.
The part incorporates a power-on reset circuit that ensures that the
DAC output powers up to 0 V (AD5628/AD5648/AD5668-1, -2)
or midscale (AD5668-3) and remains powered up at this level
until a valid write takes place. The part contains a power-down
feature that reduces the current consumption of the device to
400 nA at 5 V and provides software-selectable output loads
while in power-down mode for any or all DAC channels.
The outputs of all DACs can be updated simultaneously
using the
LDAC
function, with the added functionality of user-
selectable DAC channels to simultaneously update. There is also
an asynchronous
CLR
that updates all DACs to a user-
programmable code—zero scale, midscale, or full scale.
The AD5628/AD5648/AD5668 utilize a versatile 3-wire serial
interface that operates at clock rates of up to 50 MHz and is
compatible with standard SPI®, QSPI™, MICROWIRE™, and
DSP interface standards. The on-chip precision output amplifier
enables rail-to-rail output swing.
PRODUCT HIGHLIGHTS
1. Octal, 12-/14-/16-bit DAC.
2. On-chip 1.25 V/2.5 V, 5 ppm/°C reference.
3. Available in 14-lead/16-lead TSSOP.
4. Power-on reset to 0 V or midscale.
5. Power-down capability. When powered down, the DAC
typically consumes 200 nA at 3 V and 400 nA at 5 V.
