Issue 1- February 2008 1 www.zetex.com
© Zetex Semiconductors plc 2008

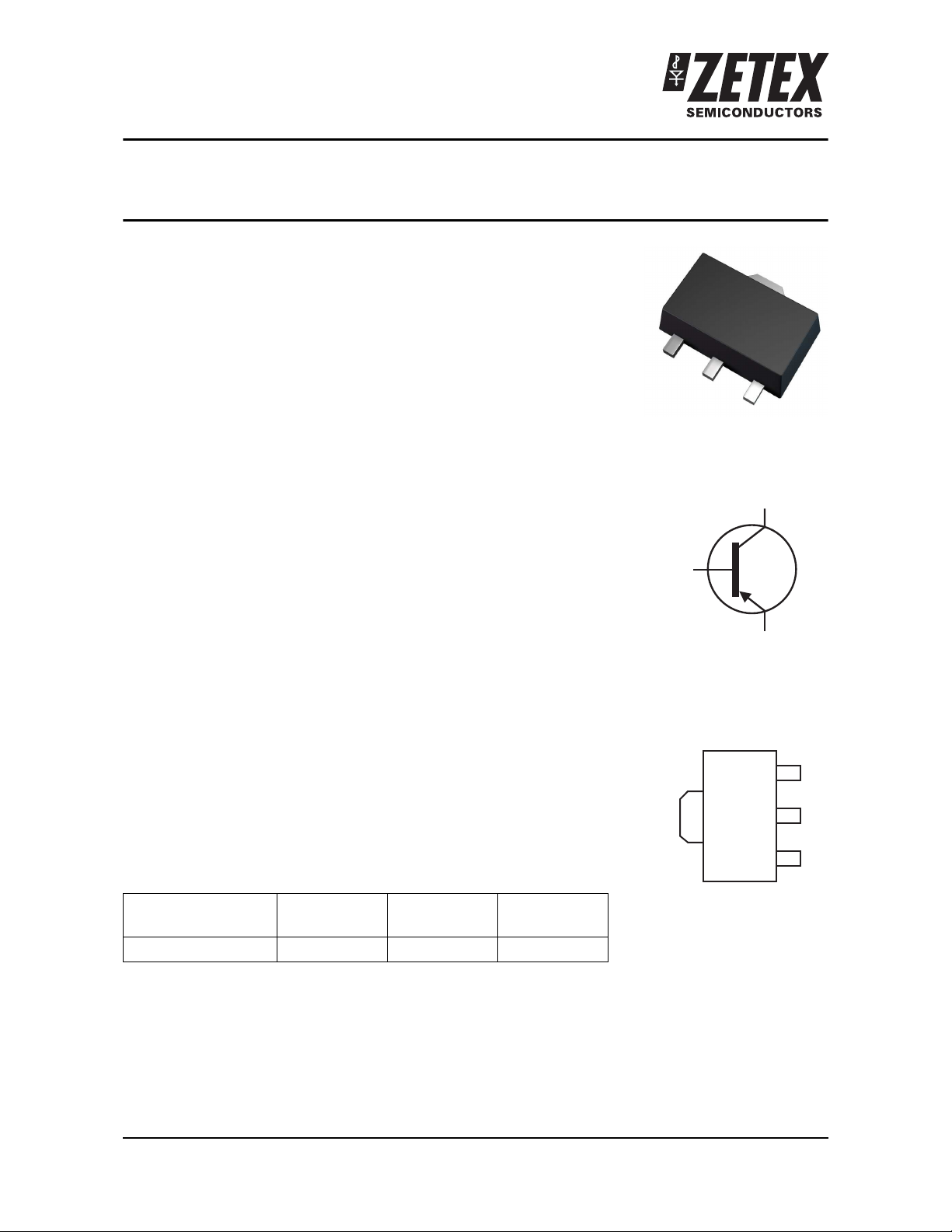

ZXTP19060CZ
60V PNP medium transistor in SOT89
Summary
BV
CEO
> -60V
BV
ECO
> -7V
I
C(cont)
= 4.5A
V
CE(sat)
< -80mV @ -1A
R
CE(sat)
= 50mV
P
D
= 2.4W
Complementary part number ZXTN19060CZ
Description
Packaged in the SOT89 outline this new low saturation PNP transistor
offers extremely low on state losses making it ideal for use in DC-DC
circuits and various driving and power management functions.
Features
• High gain
• Low saturation voltage
• High peak current
• 7V reverse blocking voltage
Applications
• High side driver
• Motor drive
• Load disconnect switch
Ordering information
Device marking
1M2
Device Reel size
(inches)
Tape width
(mm)
Quantity
per reel
ZXTP19060CZTA 7 12 1000
C
E
B
C
E
Pinout - top view
C
B
