Issue 1- February 2008 1 www.zetex.com
© Zetex Semiconductors plc 2008

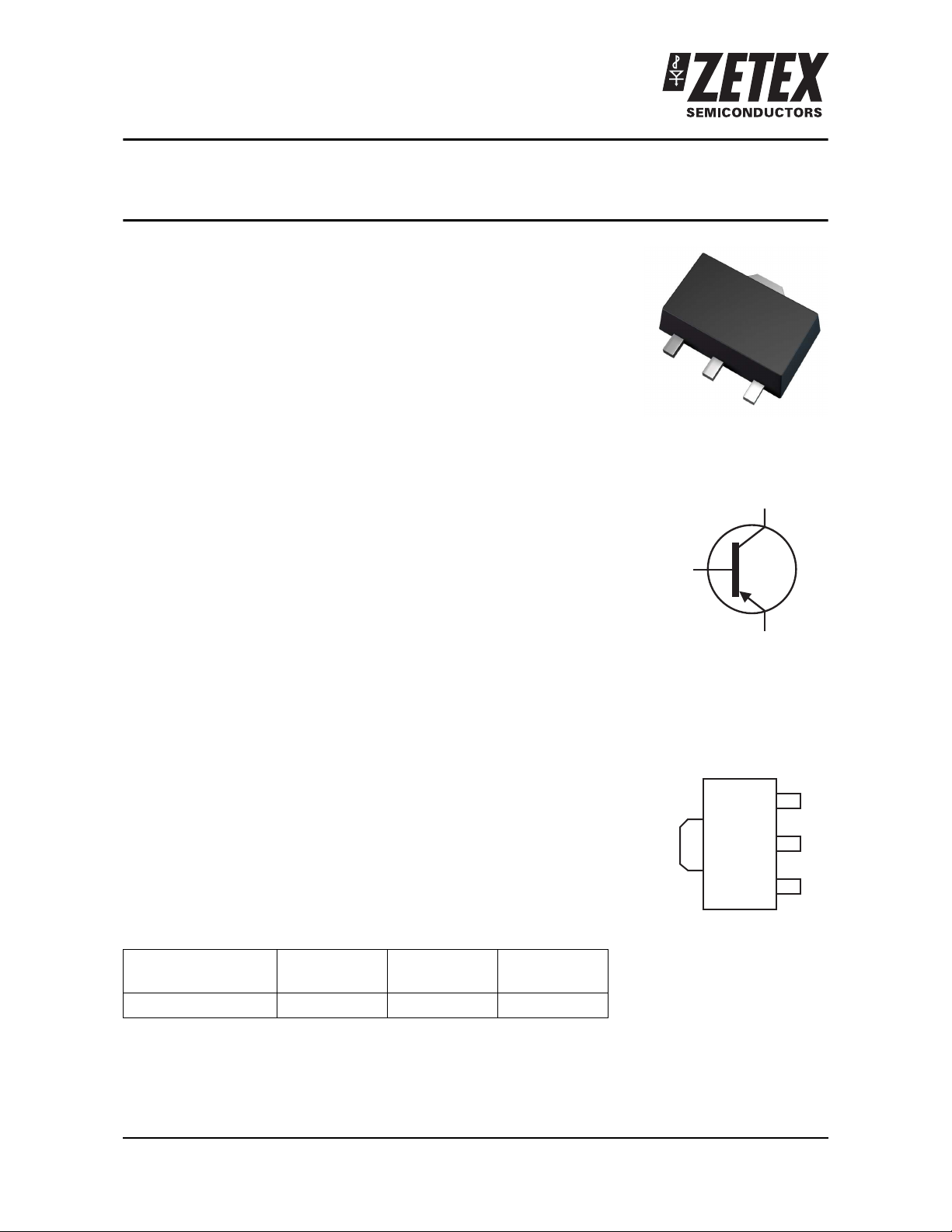

ZXTP19020DZ
20V PNP high gain transistor in SOT89
Summary
BV
CEO
> -20V
BV
ECO
> -4V
I
C(cont)
= 6A
V
CE(sat)
< -47mV @ -1A
R
CE(sat)
= 28mV
P
D
= 2.4W
Complementary part number ZXTN19020DZ
Description
Packaged in the SOT89 outline this new low saturation PNP transistor
offers extremely low on state losses making it ideal for use in DC-DC
circuits and various driving and power management functions.
Features
• Higher power dissipation SOT89 package
• High gain
• High peak current
• Low saturation voltages
• 4V reverse blocking voltage
Applications
• Power disconnect switch
• Battery chargers
• High side drivers
• Motor drive
Ordering information
Device marking
1M1
Device Reel size
(inches)
Tape width
(mm)
Quantity
per reel
ZXTP19020DZTA 7 12 1000
C
E
B
C
E
Pinout - top view
C
B
