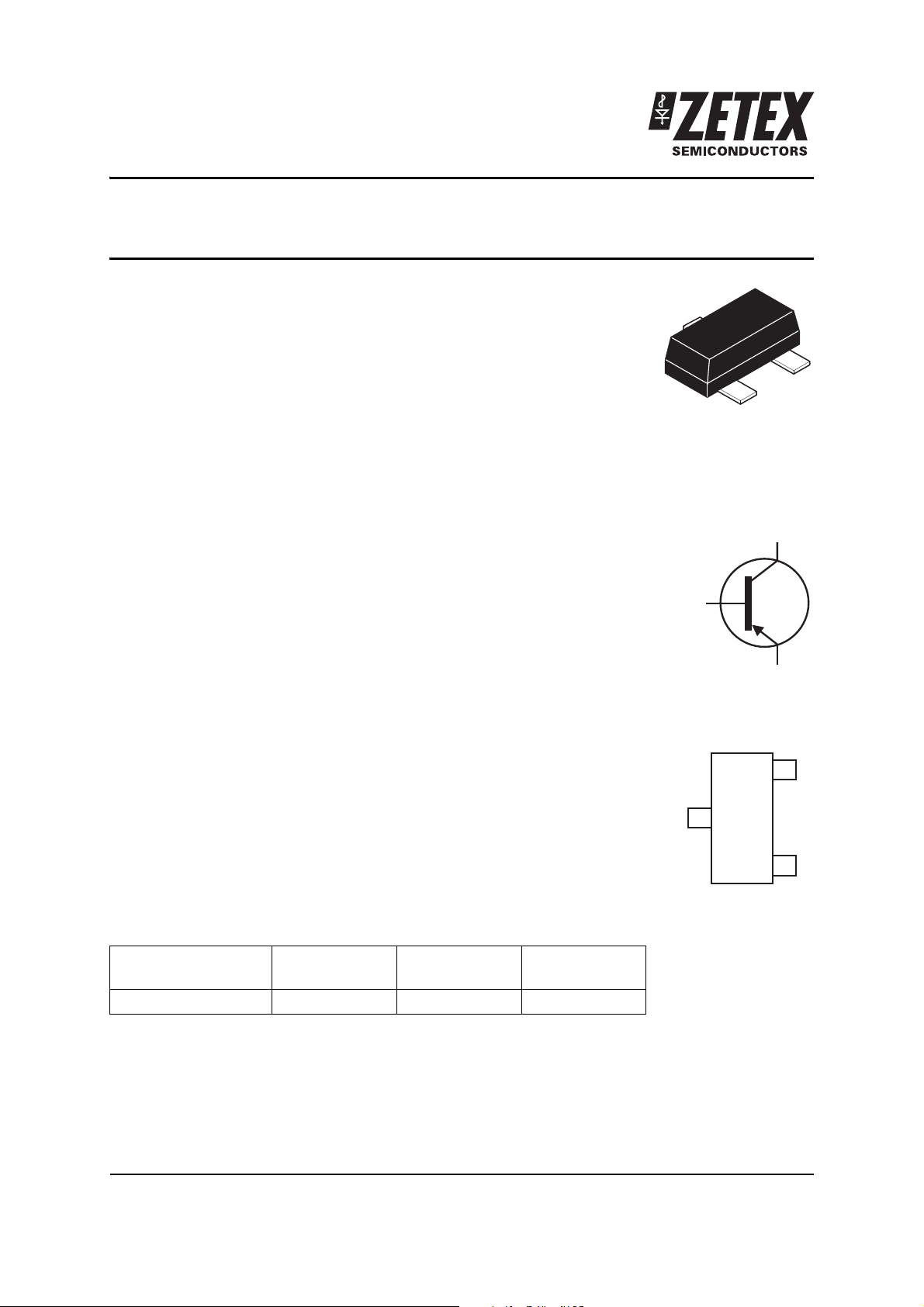

Issue 1 - February 2007 1 www.zetex.com
© Zetex Semiconductors plc 2007
ZXTP19020CFF
20V, SOT23F, PNP medium power transistor
Summary:
BV
CEO
> -20V
BV
ECO
> -5V
I
C(cont)
= -5A
V
CE(sat)
< 40mV @ 100mA
R
CE(sat)
= 21m⍀
P
D
= 1.5W
Complementary part number ZXTN19020CFF
Description
Advanced process capability has been used to maximize the
performance of this transistor. The SOT23F package is compatible with
the industry standard SOT23 footprint but offers lower profile and
higher dissipation for applications where power density is of utmost
importance.
Features
•High gain
• Low saturation voltage
• Low profile high dissipation package
Applications
• Battery charging
• Load switch
• DC-DC converters
Ordering information
Device marking
1D7
Device Reel size
(inches)
Tape width
(mm)
Quantity
per reel
ZXTP19020CFFTA 7 8 3000
C
E
B
C
E
B
Pinout - top view
