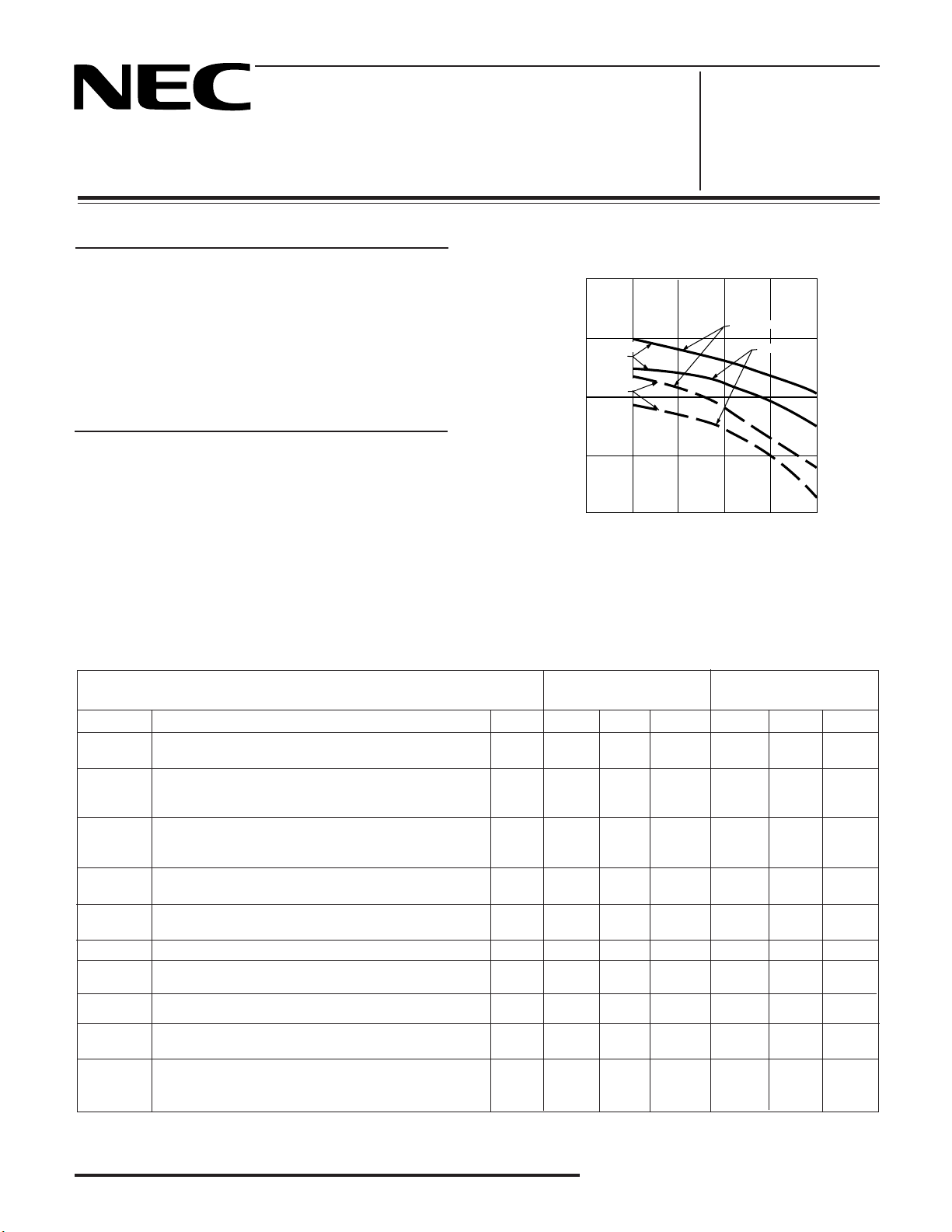

PART NUMBER UPC2757T UPC2758T
PACKAGE OUTLINE T06 T06
SYMBOLS PARAMETERS AND CONDITIONS UNITS MIN TYP MAX MIN TYP MAX
ICC Circuit Current, VPS = 3 V mA 3.7 5.6 7.7 6.6 11 14.8
VPS = 0.5 V µA 0.1 0.1
fRF RF Operating Frequency Range
(The conversion gain at fRF is not more than 3 dB down
from the gain at fRF = 800 MHz, fIF = 130 MHz) GHz 0.1 2.0 0.1 2.0
fIF IF Operating Frequency Range
(The conversion gain at fIF is not more than 3 dB down from
the gain at fRF = 800 MHz, fIF = 130 MHz) MHz 20 300 20 300
CG Conversion Gain
1
,fRF = 800 MHz, fIF = 130 MHz dB 12 15 18 16 19 22
fRF = 2.0 GHz, fIF = 250 MHz dB 10 13 16 14 17 20
NF Noise Figure, fRF = 800 MHz, fIF = 130 MHz dB 10 13 9 12
fRF = 2.0 GHz, fIF = 250 MHz dB 13 16 13 15
PSAT Saturated Output Power
2
,fRF = 800 MHz, fIF = 100 MHz dBm -3 +1
PIdB Output Power at 1dB fRF = 800 MHz dBm -8 -3.5
compression point fIF = 100 MHz
OIP3 Output 3rd Order Intercept Point, (SSB) PLO = -10 dBm dBm 0 5
fRF = 0.8~2.0 GHz, fIF = 100 MHz
ISO LO Leakage, fLO = 0.8 ~2.0 GHz at RF pin dBm -35 -30
at IF pin dBm -23 -15
RTH (J-A) Thermal Resistance (Junction to Ambient)
Free Air °C/W 620 620
Mounted on a 50 x 50 x 1.6 mm epoxy glass PWB °C/W 230 230
FEATURES
3 V, SILICON MMIC
FREQUENCY CONVERTER
UPC2757T
UPC2758T
ELECTRICAL CHARACTERISTICS (TA = 25°C, VCC = 3 V, VPS = 3 V, PLO = -10 dBm)
• WIDE BAND OPERATION UP TO 2.5 GHz
• LOW VOLTAGE OPERATION: 2.7 V Minimum
• LOW POWER CONSUMPTION: 15 mW (UPC2757T)
• POWER SAVE FUNCTION
• SUPER SMALL PACKAGE
• TAPE AND REEL PACKAGING OPTION AVAILABLE
Notes:
1. PRF = -40 dBm.
2. PRF = -10 dBm.
Conversion Gain (dB)
25
20
15
10
5
400 MHz IF
200 MHz IF
500 1000 1500
2000
2500
UPC2758T
UPC2757T
0
LO Frequency (MHz)
DESCRIPTION
The UPC2757T and UPC2758T are L-Band Frequency Con-
verters manufactured using the NESAT III MMIC process.
These products consist of a double balanced mixer, IF ampli-
fier and LO buffer amplifier. The UPC2757T is designed for
low power consumption while the UPC2758T is designed for
low distortion. Both devices operate on a 3 volt supply voltage
making them ideal for portable hand held cellular, GPS, PCN
and wireless LAN applications.
NEC's stringent quality assurance and test procedures en-
sure the highest reliability and performance.
CONVERSION GAIN vs. LO FREQUENCY
VCC = 3 V, LO Power = -5 dBm
RF Above LO
California Eastern Laboratories
