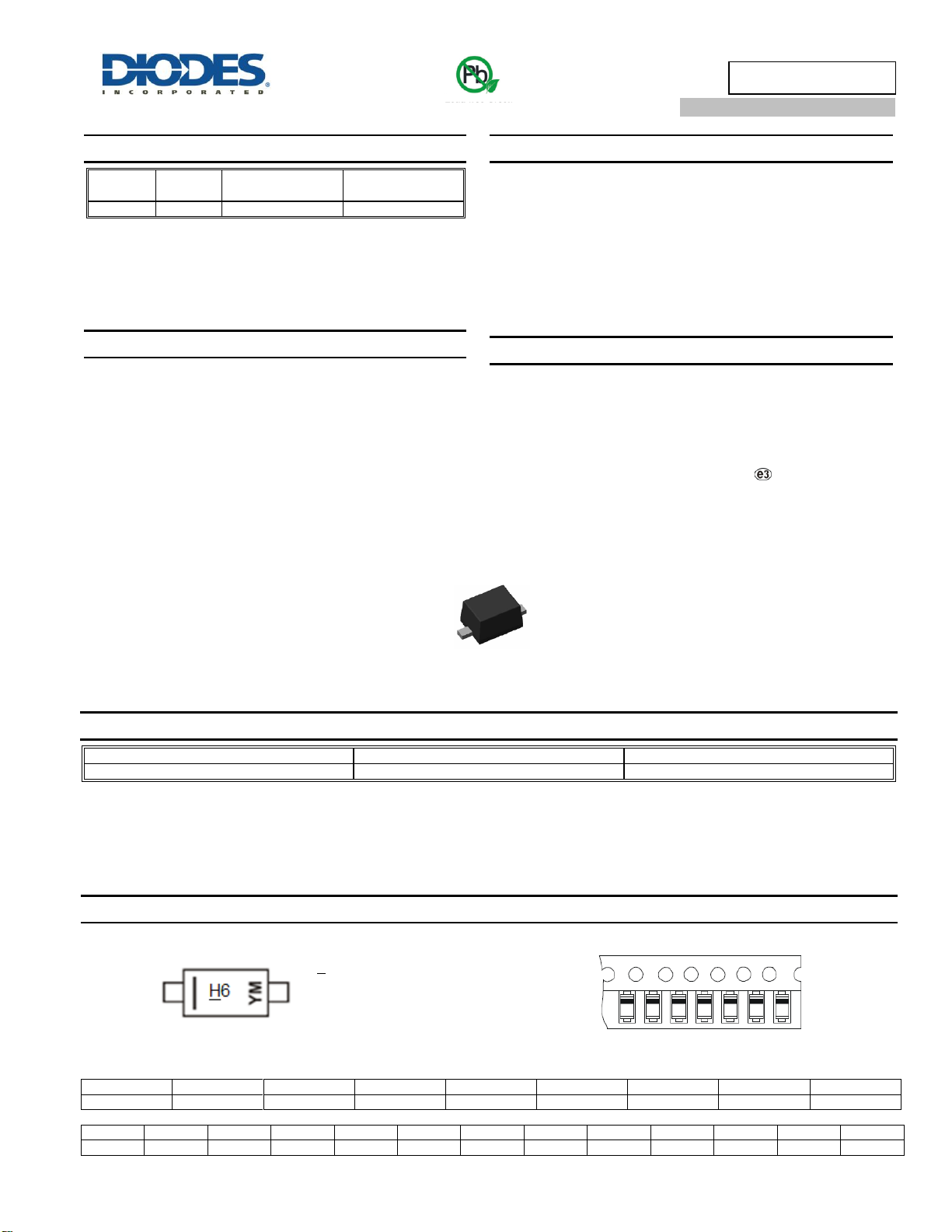

SBR is a registered trademark of Diodes Incorporated.
SBR2U60S1FQ
Document number: DS38834 Rev. 2 - 2
1 of 5
www.diodes.com
October 2016
© Diodes Incorporated
SBR2U60S1FQ
SUPER BARRIER RECTIFIER
Product Summary
V
RRM
(V)
I
O
(A)
V
F
Max (V)
@ +25°C
I
R
Max (mA) @
+25°C
60
2
0.51
0.15
Description and Applications
The SBR2U60S1FQ is a single rectifier packaged in SOD123F.
Offering low V
F
, low power loss and high efficiency, this device is
ideal for use in general rectification applications as a:
Boost Diode
Blocking Diode
Features and Benefits
Guard Ring Die Construction for Transient Protection
Low Power Loss, High Efficiency
Patented Interlocking Clip Design for High Surge Current Capacity
Patented Super Barrier Rectifier SBR
®
Technology
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case: SOD123F
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.015 grams (Approximate)
Ordering Information (Note 5)
Part Number
Case
Packaging
SBR2U60S1FQ-7
SOD123F
3,000/Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to http://www.diodes.com/product_compliance_definitions.html.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year
2013
2014
2015
2016
2017
2018
2019
2020
Code
A
B
C
D
E
F
G
H
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1
2
3
4
5
6
7
8
9
O
N
D
Top View
SOD123F
H6 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: D = 2016)
M = Month (ex: 9 = September)
Bar Denotes Cathode Pin
Green
Cathode Pin
