RSB27F2
Diodes
1/1
Bi-Directional Zener Diodes
RSB27F2
zOutline
RSB27F2 is a bi-directional zener diode having two
zeners confronted in one package, aimed to absorb the
surge in plus and minus directions arising from the signal
line in mobile phone, consumer electronics such as PC,
and automotive applications.
In general, two pieces of zener diodes are used as ESD
protector to absorb the surge in +/ - directions. Paying
attention to this point and using its original technology,
ROHM succeeded to incorporate 2 zeners in one die /
package for benefit of space-saving on the circuit board.
zFeatures
1) Absorption of plus & minus surge with one package.
2) Decrease of components and space-saving on the
circuit board.

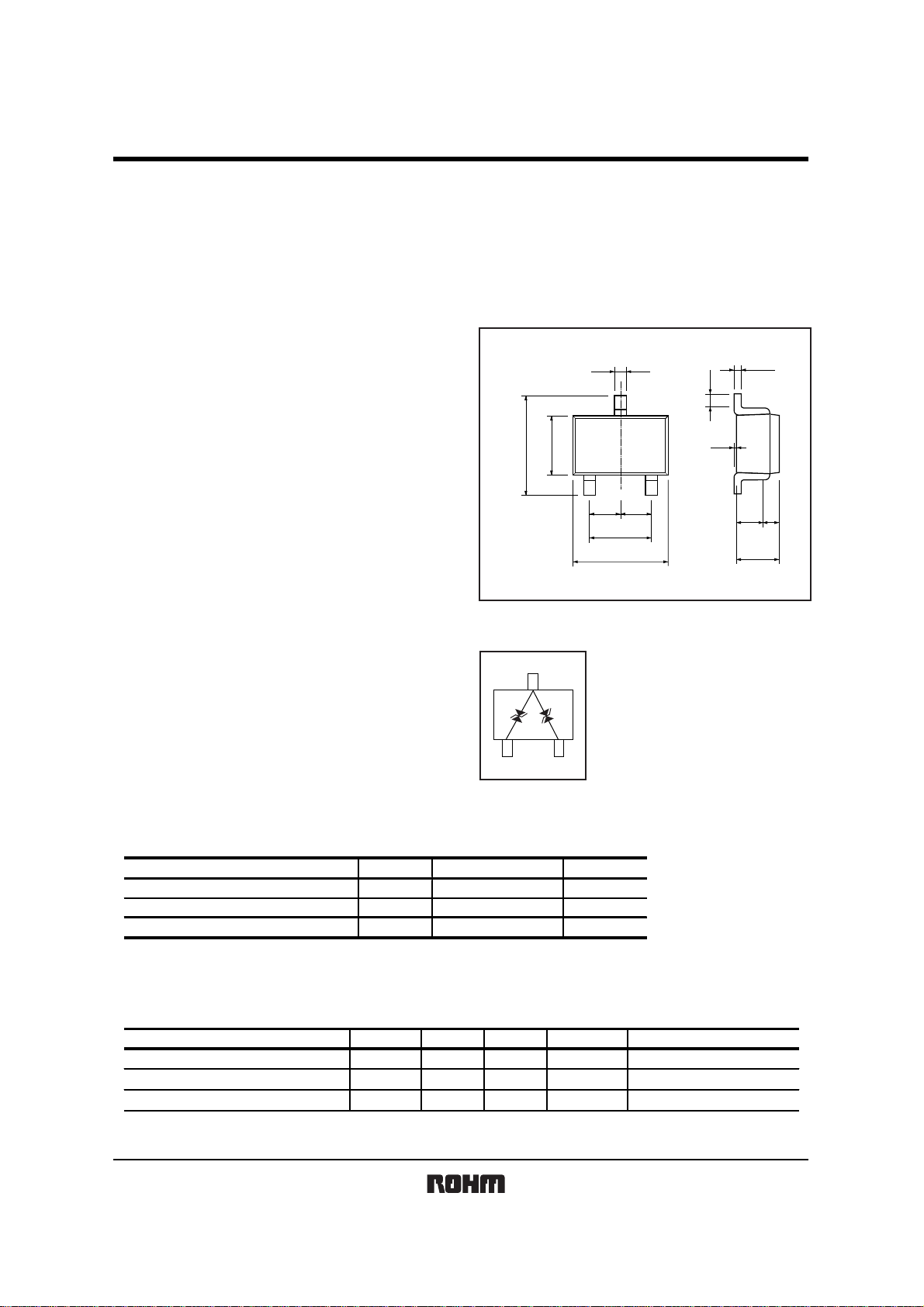

zDimensions (Unit : mm)
0.15±0.05
0.1Min.
0~0.1
0.9±0.1
0.30.6
2.0±0.2
1.3±0.1
0.65
(1)
(2)
(3)
0.65
0.3±0.1
1.25±0.1
2.1±0.1
6X
zStructure
(1)
(2)
(3)
zAbsolute maximum ratings (Ta=25°C)
Symbol Unit
Pd mW
Tj
℃
Tstg
℃
(*1) Total of 2 elements
Limits
150
200
Parameter
Junction temperature
Operation temperature range
Power dissipation (*1)
-55 to +150
zElectrical characteristics (Ta=25°C) (Rating of per diode)
Symbol Min. Max. Unit
V
z
26.2 32.0 V
I
F
=1mA
I
R
-0.1µA
V
R
=24V
Ct - 30 pF
V
R
=0V , f=1MHz
Conditions
Capacitance between terminals
Reverse current
Zener voltage
Parameter
∗ Zener voltage to be measured at 40ms after current starting to apply.
