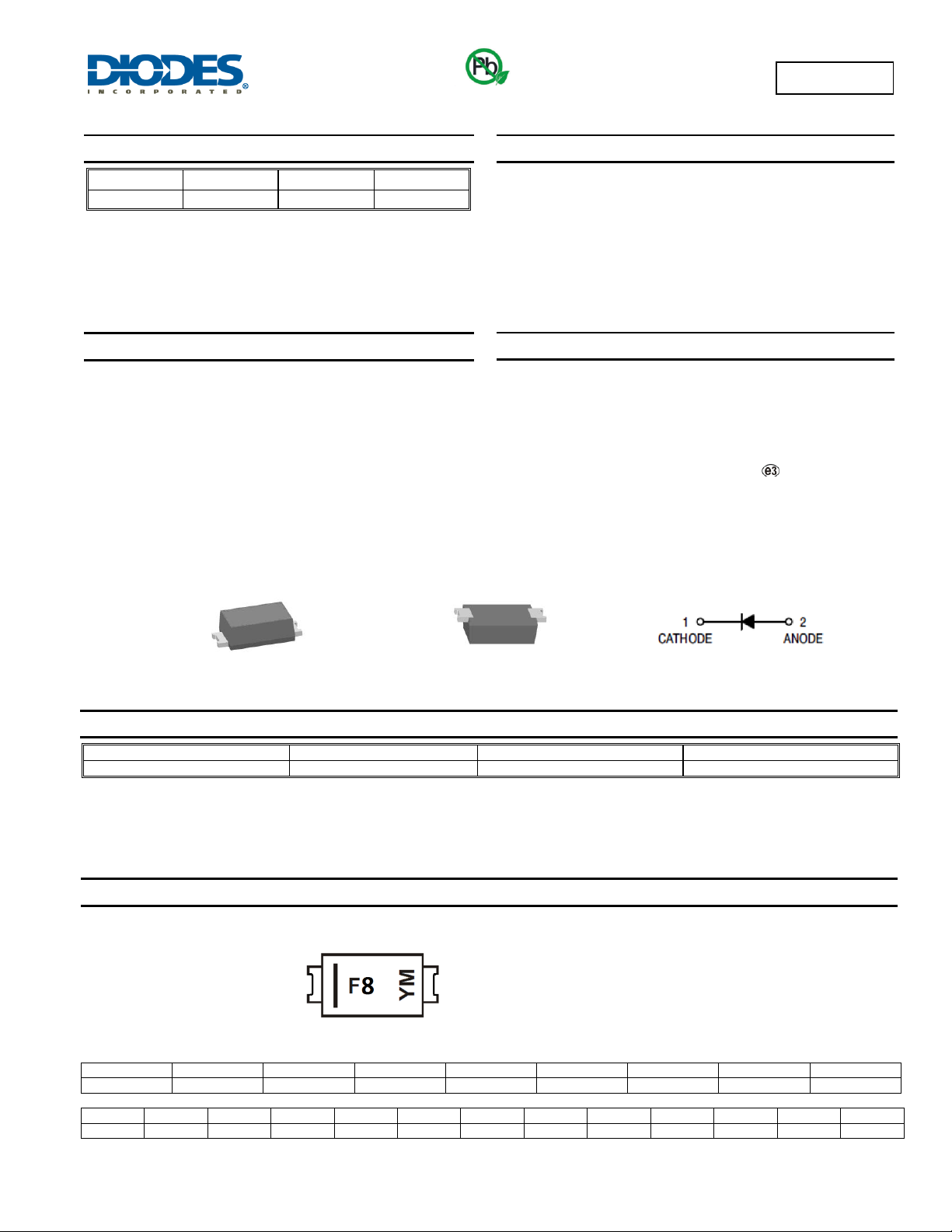

RS1MWF
Document number: DS36900 Rev. 6 - 2
1 of 5
www.diodes.com
May 2015
© Diodes Incorporated
RS1MWF
ADVANCED I NF ORMATION
1.0A SURFACE MOUNT FAST RECOVERY RECTIFIER
Product Summary (@ T
A
= +25°C)
V
RRM
(V)
I
O
(A)
V
F
(MAX) (V)
I
R(MAX)
(µA)
1,000
1
1.3
5
Description and Applications
The RS1MWF is a rectifier packaged in the small form factor, low
profile SOD123F package. Providing fast recovery time for high
efficiency, low reverse leakage current, and high surge current
capability. This device is ideal for use in general rectification
applications such as:
Switching Mode Power Supplies
DC-DC Converters
AC-DC Adaptors/Chargers
Mobile Devices
Features and Benefits
Glass Passivated Die Construction
Small Form Factor, Low Profile
Fast Recovery Time for High Efficiency
Surge Overload Rating to 30A Peak
Low Reverse Leakage Current
High Reverse Breakdown Voltage
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case: SOD123F
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Copper Leadframe;
Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.0016 grams (Approximate)
Ordering Information (Note 4)
Part Number
Compliance
Case
Packaging
RS1MWF-7
Commercial
SOD123F
3,000/Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year
2014
2015
2016
2017
2018
2019
2020
2021
Code
B
C
D
E
F
G
H
I
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1
2
3
4
5
6
7
8
9
O
N
D
Green
Top View
SOD123F
F8 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex.: B = 2014)
M = Month (ex: 9 = September)
SOD123F
Bottom View
Schematic View
