www.pericom.com 02/24/11 All trademarks are property of their respective owners.
PS323

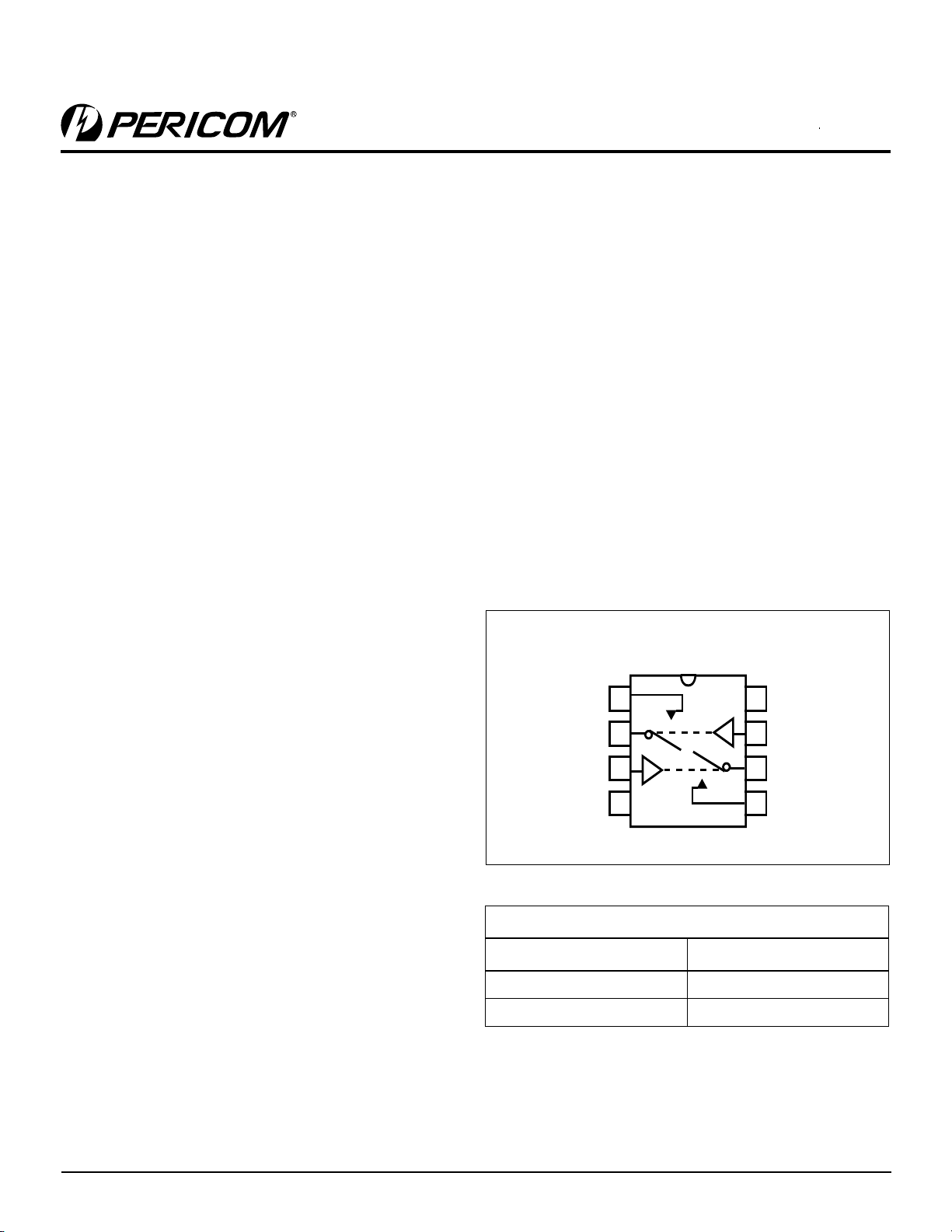

Block Diagram, Pin Configuration, and
Truth Table
6
7
8
5
1
2
3
4
NO1
COM1
IN2
GND
V+
COM2
NO2
IN1
PS323
Description
e PS323 is a improved high-precision, medium- voltage ana-
log switches designed to operate with single power supplies. e
decive is a dual, single-pole single-throw (SPST), normally open
(NO) switch. e switch conducts current equally well in either
direction when on. In the o state, each switch blocks voltages up
to the power-supply rail.
With a +5V power supply, PS323 guarantees <60-ohm On-Re-
sistance. On-Resistance matching between channels is within
2-ohm. On-Resistance atness is less than 6-ohm over the speci-
ed range. All three devices guarantee low leakage currents (<100
pA @ 25oC, <10nA @ +85oC) and fast switching speeds (tON
<150ns). Break-before-make switching action protects against
momentary crosstalk.
Features
Î Low On-Resistance (33-ohm typ.) Minimizes Distortion and
Error Voltages
Î Low Glitching Reduces Step Errors in Sample-and-Holds.
Charge Injection, 2pC typ.
Î Single-Supply Operation (+2.5V to +16V)
Î Improved Second Sources for MAX323/MAX324/MAX325
Î On-Resistance Matching Between Channels, <2-ohm
Î On-Resistance Flatness, <6-ohm max.
Î Low O-Channel Leakage, <5nA @ +85
o
C
Î TTL/CMOS Logic Compatible
Î Fast Switching Speed, t
ON
<150ns, eliminates momentary
crosstalk
Î Rail-to-Rail Analog Signal Dynamic Range
Î Low Power Consumption, <5mW
Î Packaging (Pb-free & Green):
à 8-pin SOIC (W)
à 8-pin MOSP (U)
Precision, Single-Supply
SPST Analog Switch
PS323
Logic Switch
0 OFF
1 ON
Switches shown for logic “0” input
Applications
Î Audio Switching and Routing
Î Portable Instruments
Î Data Acquisition Systems
Î Sample-and-Holds
Î Telecommunication Systems
Î Battery-Powered Systems
11-0001
