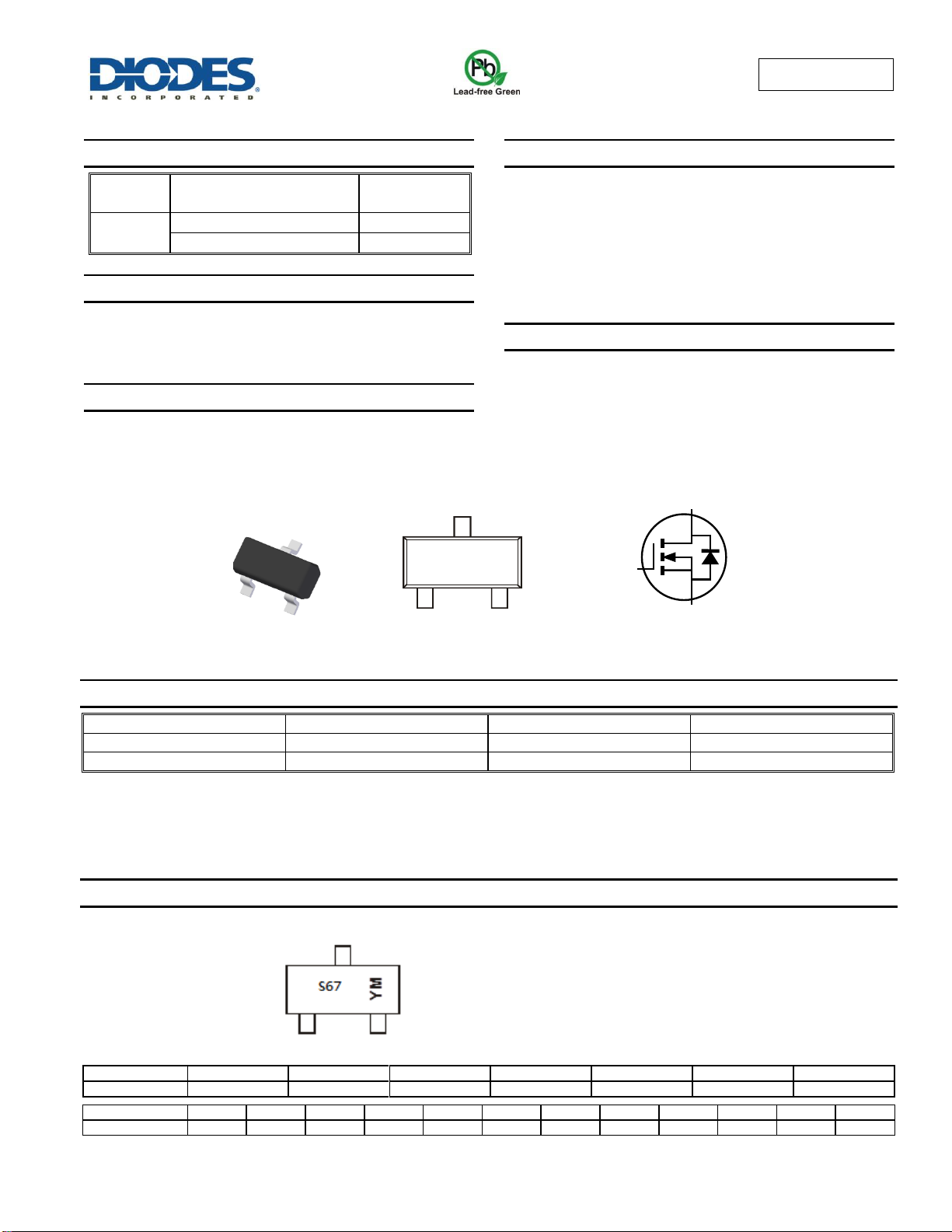

DMN6075S
Document number: DS37023 Rev. 4 - 2
1 of 7
www.diodes.com
April 2015
© Diodes Incorporated
DMN6075S
ADVANCE INFO R MA T I O N
60V N-CHANNEL ENHANCEMENT MODE MOSFET
Summary
V
(BR)DSS
R
DS(ON)
max
I
D
max
T
A
= +25°C
60V
85 mΩ @ V
GS
= 10V
2.5A
120 mΩ @ V
GS
= 4.5V
2.0A
Description
This new generation MOSFET is designed to minimize the on-state
resistance (R
DS(ON)
) and yet maintain superior switching performance,
making it ideal for high efficiency power management applications.
Applications
DC-DC Converters
Power Management Functions
Backlighting
Features and Benefits
N MOSFET
Low On-Resistance
Low Input Capacitance
Fast Switching Speed
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: SOT-23
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: See Diagram Below
Weight: 0.008 grams (Approximate)
Ordering Information (Note 4)
Product
Reel size (inches)
Tape width (mm)
Quantity per reel
DMN6075S-7
7
8
3,000
DMN6075S-13
13
8
10,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year
2014
2015
2016
2017
2018
2019
2020
Code
B
C
D
E
F
G
H
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1
2
3
4
5
6
7
8
9
O
N
D
SOT-23
Top View
Top View
Pin Configuration
D
G
S
D
S
G
Top View
SOT-23
S67 = Product Type Marking Code
YM = Date Code Marking
Y or Y = Year (ex: B = 2014)
M = Month (ex: 9 = September)
