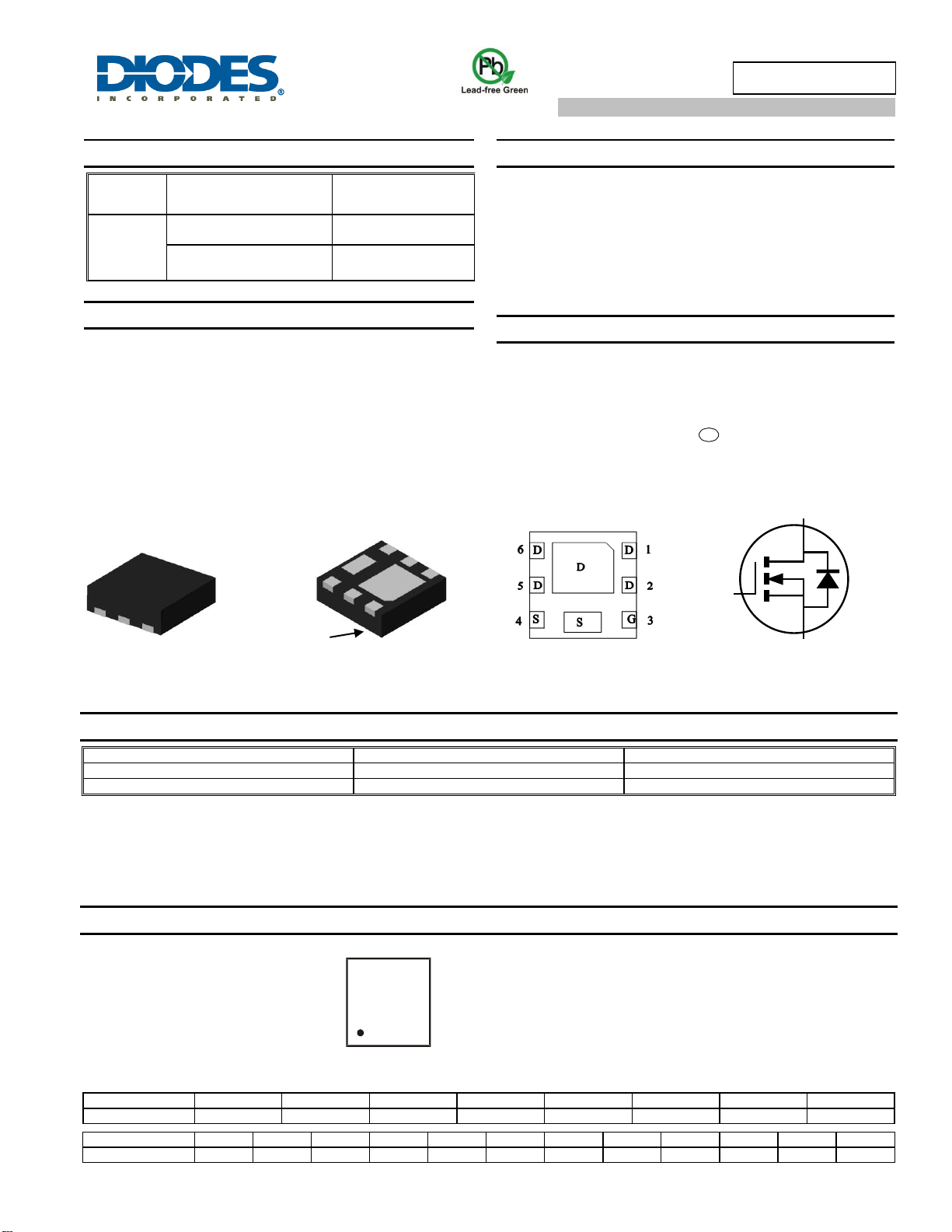

DMN3016LFDF
Document number: DS37735 Rev. 1 - 2
1 of 7
www.diodes.com
June 2016
© Diodes Incorporated
DMN3016LFDF
NEW PROD UCT
ADVA N C E INF O RMA TION
N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
BV
DSS
R
DS(ON)
Max
I
D
Max
T
A
= 25°C
30V
12mΩ @ V
GS
= 10V
10A
16mΩ @ V
GS
= 4.5V
8.5A
Description and Applications
This MOSFET is designed to minimize the on-state resistance
(R
DS(ON)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Battery Management Application
Power Management Functions
DC-DC Converters
Features and Benefits
0.6mm profile – Ideal for Low Profile Applications
PCB Footprint of 4mm
2
Low Gate Threshold Voltage
Low On-Resistance
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: U-DFN2020-6 (Type F)
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208
Weight: 0.0065 grams (Approximate)
Ordering Information (Note 4)
Part Number
Case
Packaging
DMN3016LFDF-7
U-DFN2020-6 (Type F)
3,000/Tape & Reel
DMN3016LFDF-13
U-DFN2020-6 (Type F)
10,000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year
2016
2017
2018
2019
2020
2021
2022
2023
Code
D
E
F
G
H
I
J
K
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1
2
3
4
5
6
7
8
9
O
N
D
NZ = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: D = 2016)
M = Month (ex: 9 = September)
U-DFN2020-6 (Type F)
Equivalent Circuit
Pin1
D
S
G
Bottom View
Top View
Pin Out
Bottom View
NZ
YM
e4
