AP2301/AP2311
Document number: DS32241 Rev. 6 - 2
1 of 18
www.diodes.com
May 2016
© Diodes Incorporated
AP2301/AP2311
2.0A SINGLE CHANNEL CURRENT-LIMITED POWER SWITCH
Description
The AP2301 and AP2311 are single channel current-limited
integrated high-side power switches optimized for Universal Serial
Bus (USB) and other hot-swap applications. The family of devices
complies with USB standards and is available with both polarities of
Enable input.
The devices have fast short-circuit response time for improved overall
system robustness, and have integrated output discharge function to
ensure completely controlled discharging of the output voltage
capacitor. They provide a complete protection solution for applications
subject to heavy capacitive loads and the prospect of short circuit,
and offer reverse current blocking, over-current, over-temperature
and short-circuit protection, as well as controlled rise time and under-
voltage lockout functionality. A 7ms deglitch capability on the open-
drain Flag output prevents false over-current reporting and does not
require any external components.
All devices are available in SO-8, MSOP-8, MSOP-8EP, U-DFN3030-
8 (Type E) and U-DFN2020-6 packages.
Features
Single Channel Current-limited Power Switch
Output Discharge Function
Fast Short-circuit Response Time: 2µs
2.5A Accurate Current Limiting
Reverse Current Blocking
70mΩ On-resistance
Input Voltage Range: 2.7V to 5.5V
Built-in Soft-start with 0.6ms Typical Rise Time
Over-current and Thermal Protection
Fault Report (FLG) with Blanking Time (7ms Typ)
ESD Protection: 2kV HBM, 200V MM
Ambient Temperature Range: -40°C to +85°C
SO-8, MSOP-8, MSOP-8EP, U-DFN3030-8 (Type E) and
U-DFN2020-6: Available in “Green” Molding Compound (No Br,
Sb)
Totally Lead-free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
UL Recognized, File Number E322375
IEC60950-1 CB Scheme Certified

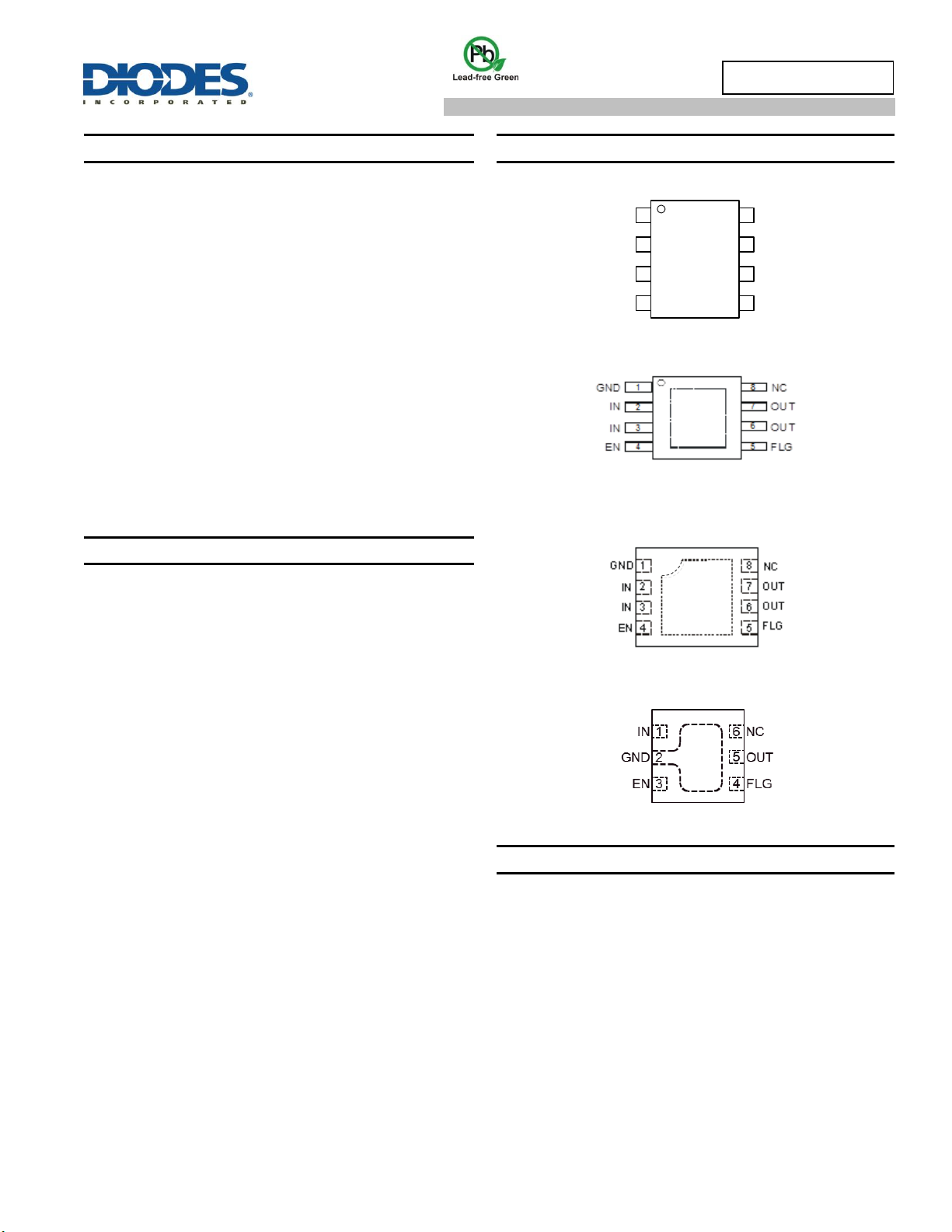

Pin Assignments
( Top View )
1
2
3
4
8
7
6
5
NC
OUT
FLG
OUT
GND
EN
IN
IN
SO-8
U-DFN2020-6
Applications
LCD TVs & Monitors
Set-Top-Boxes, Residential Gateways
Laptops, Desktops, Servers, e-Readers, Printers, Docking
Stations, HUBs
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
(Top View)
(Top View)
SO-8
MSOP-8 /MSOP-8EP
Note: latter with exposed pad (dotted line)
(Top View)
U-DFN3030-8 (Type E)
(Top View)
