74AUP2G07
Document number: DS35511 Rev. 5 - 2
1 of 13
www.diodes.com
November 2014
© Diodes Incorporated
74AUP2G07
NEW PROD UCT
DUAL BUFFERS WITH OPEN DRAIN OUTPUTS
Description
The Advanced Ultra Low Power (AUP) CMOS logic family is designed
for low power and extended battery life in portable applications.
The 74AUP2G07 is composed of two buffers with open drain outputs
designed for operation over a power supply range of 0.8V to 3.6V.
The device is fully specified for partial power down applications using
I
OFF
. The I
OFF
circuitry disables the output preventing damaging
current backflow when the device is powered down. The gates
perform the positive Boolean function:
AY
Features
Advanced Ultra Low Power (AUP) CMOS
Supply Voltage Range from 0.8V to 3.6V
-4mA Output Drive at 3.0V
Low Static Power Consumption
I
CC
< 0.9µA
Low Dynamic Power Consumption
C
PD
= 1.2pF Typical at 3.6V
Schmitt Trigger Action at All Inputs Make the Circuit Tolerant for
Slower Input Rise and Fall Time. The Hysteresis is Typically
250mV at V
CC
= 3.0V
I
OFF
Supports Partial-Power-Down Mode Operation
ESD Protection per JESD 22
Exceeds 200-V Machine Model (A115)
Exceeds 2000-V Human Body Model (A114)
Exceeds 1000-V Charged Device Model (C101)
Latch-Up Exceeds 100mA per JESD 78, Class I
Leadless Packages per JESD30E
DFN1410 denoted as X2-DFN1410-6
DFN1010 denoted as X2-DFN1010-6
DFN0910 denoted as X2-DFN0910-6
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)

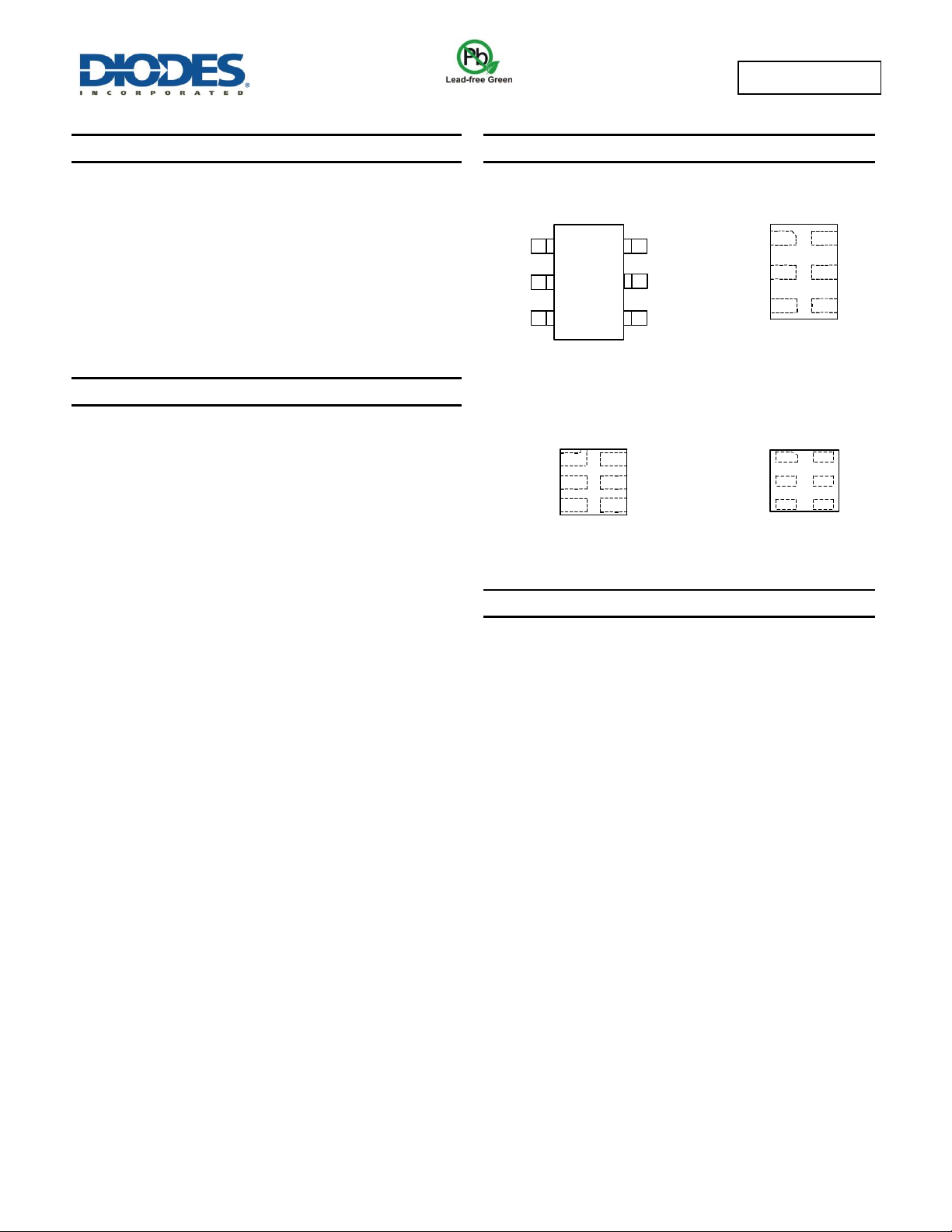

Pin Assignments
(
Top View
)
X2-DFN1010-6
GND
Vcc
1
2
3
4
5
6
2Y
1Y
1A
2A
GND
1A
2A
Vcc
2Y
1Y
X2-DFN0910-6
5
3
2
1
4
(
Top View
)
SOT363
(Top View)
GND
43
2
1 6
Vcc
5
1A
2A
1Y
2Y
2
4
5
6
3
1
(
Top View
)
X2-DFN1410-6
GND
Vcc
2Y
1Y1A
2A
Applications
Suited for Battery and Low Power Needs
Wide array of products such as:
PCs, Networking, Notebooks, Netbooks, PDAs
Tablet Computers, E-readers
Computer Peripherals, Hard Drives, CD/DVD ROM
TV, DVD, DVR, Set-Top Box
Cell Phones, Personal Navigation / GPS
MP3 players, Cameras, Video Recorders
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
