The XR75100 is a synchronous step-down controller for point-of load supplies up to 20 A. A wide 5 V to 40 V input voltage range allows for single supply operation from industry standard 12 V, 18 V, and 24 V DC and AC rails.
With a proprietary emulated current mode Constant On-Time (COT) control scheme, the XR75100 provides extremely fast line and load transient response using ceramic output capacitors. It requires no loop compensation hence simplifying circuit implementation and reducing overall component count. The control loop also provides exceptional line regulation and maintains constant operating frequency. A selectable power saving mode, allows the user to operate in discontinuous mode (DCM) at light current loads thereby significantly increasing the converter efficiency.
A host of protection features, including over-current, over-temperature, short-circuit and UVLO, help achieve safe operation under abnormal operating conditions.

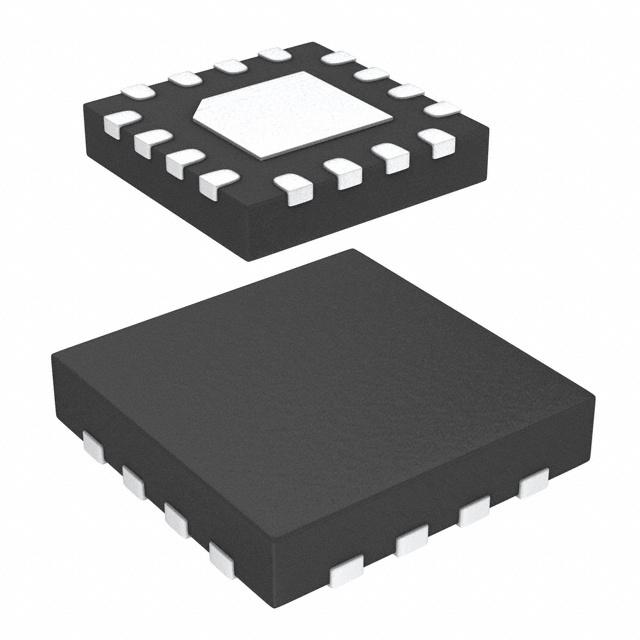

The XR75100 is available in RoHS compliant, green/halogen free space-saving 16-pin 3 x 3 QFN package.
