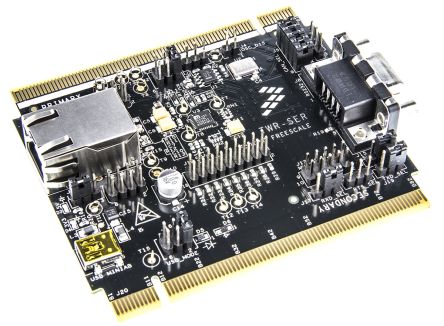

The TWR-K60F120M-KIT is a tower controller module compatible with the NXP tower system. It can function as a stand alone, low cost platform for the evaluation of the Kinetis K60 family of microcontroller (MCU) devices. The tower controller module is populated with a device rated for 120MHz operation across the full -40C to 85C temperature range. At room temperatures the board can be over clocked to 150 MHz to allow for evaluation of the K10, K20, and K60 devices that are rated for 150MHz operation across the full temperature range. The tower controller module can also be combined with other NXP tower peripheral modules to create development platforms for a wide variety of applications.
K60FN1M in a 144 LQFP with 120 MHz operation
S08JM60 based open source BDM (OSBDM) circuit
2Gb of SLC NAND flash memory
Four user controlled status LEDs
Four capacitive touch pads and two mechanical push buttons
Socket for capacitive touch pad daughter board (Touch TWRPI)
Socket for tower plugin (TWRPI, e.g. sensor board)
Battery holder for 20mm lithium battery (e.g. 2032, 2025)
