TVP7000 is a complete solution for digitizing video and graphic signals in RGB or YPbPr color spaces. The device supports pixel rates up to 150 MHz. Therefore, it can be used for PC graphics digitizing up to the VESA standard of SXGA (1280 × 1024) resolution at 75 Hz screen refresh rate, and in video environments for the digitizing of digital TV formats, including HDTV up to 1080p. TVP7000 can be used to digitize CVBS and S-Video signal with 10-bit ADCs.
The TVP7000 is powered from 3.3-V and 1.8-V supply and integrates a triple high-performance A/D converter with clamping functions and variable gain, independently programmable for each channel. The clamping timing window is provided by an external pulse or can be generated internally. The TVP7000 includes analog slicing circuitry on the Y or G input to support sync-on-luminance or sync-on-green extraction. In addition, TVP7000 can extract discrete HSYNC and VSYNC from composite sync using a sync slicer.
TVP7000 also contains a complete analog PLL block to generate a pixel clock from the HSYNC input. Pixel clock output frequencies range from 12 MHz to 150 MHz.

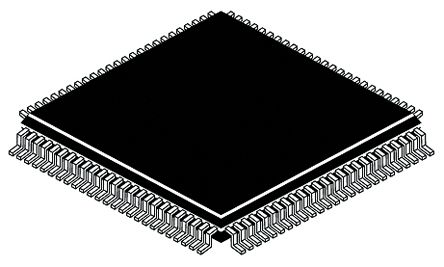

All programming of the part is done via an industry-standard I2C interface, which supports both reading and writing of register settings. The TVP7000 is available in a space-saving TQFP 100-pin PowerPAD package.
Analog Channels
-6 dB to 6 dB Analog Gain
Analog Input MUXs
Auto Video Clamp
Three Digitizing Channels, Each With Independently Controllable Clamp, PGA, and ADC
Clamping: Selectable Clamping Between Bottom Level and Mid-level
Offset: 1024-Step Programmable RGB or YPbPr Offset Control
PGA: 8-Bit Programmable Gain Amplifier
ADC: 8/10-Bit 150/110 MSPS A/D Converter
Automatic Level Control Circuit
Composite Sync: Integrated Sync-on-Green Extraction From GreenLuminance Channel
Support for DC and AC-Coupled Input Signals
PLL
Fully Integrated Analog PLL for Pixel Clock Generation
12-150 MHz Pixel Clock Generation From HSYNC Input
Adjustable PLL Loop Bandwidth for Minimum Jitter
5-Bit Programmable Subpixel Accurate Positioning of Sampling Phase
Output Formatter
Support for RGB/YCbCr 4:4:4 and YCbCr 4:2:2 Output Modes to Reduce Board Traces
Dedicated DATACLK Output for Easy Latching of Output Data
System
Industry-Standard Normal/Fast I2C Interface With Register Readback Capability
Space-Saving TQFP-100 Pin Package
Thermally-Enhanced PowerPAD Package for Better Heat Dissipation
