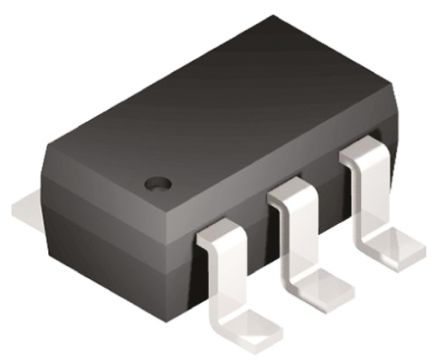

The TS5A3157DBVR is a SPDT analogue switch in 6 pin SOT-23 package. This device can handle both digital and analogue signals. The signals up to V+ can be transmitted in either direction.
Maximum on-resistance of 12ohm
Control inputs are 5V tolerant
Low charge injection
Excellent on-state resistance matching
Low total harmonic distortion (THD)
Single supply operation from 1.65V to 5.5V
Latch-up performance exceeds 100mA per JESD 78, class II
ESD performance tested per JESD 22
Maximum bandwidth of 300MHz
Operating temperature range from -40°C to 85°C
This device has limited built-in ESD protection. The leads should be shorted together or device placed in conductive foam during storage or handling to prevent electrostatic damage to MOS gates.
