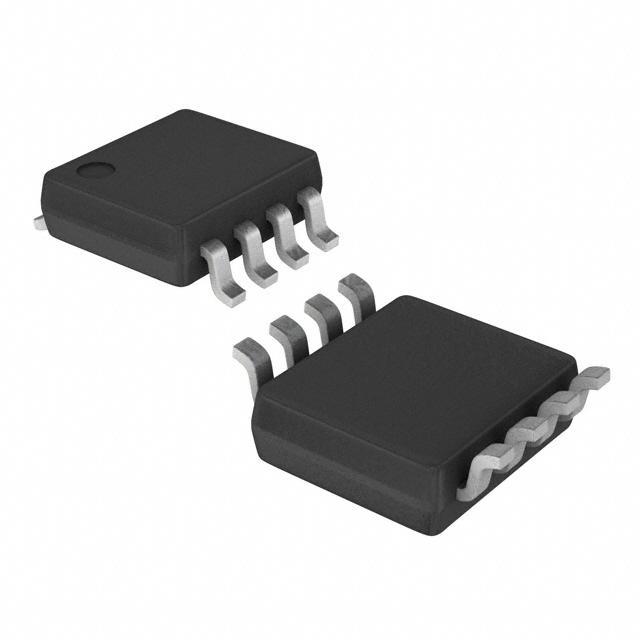

The TS5A23166DCURE4 is a Dual SPST Analogue Switch designed to operate from 1.65 to 5.5V. The TS5A23166 device offers a low ON-state resistance and an excellent channel-to-channel ON-state resistance matching. This dual SPST analogue switch is a basic component that could be used in any electrical system design. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications.
Isolation in powered-down mode, V+ = 0
Low ON-state resistance (0.9R)
Control inputs are 5.5V tolerant
Low charge injection
Excellent ON-state resistance matching
Low total harmonic distortion (THD)
Single-supply operation
Latch-up performance exceeds 100mA per JESD 78, class II
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
