The TPS783 family of low-dropout regulators (LDOs) offers the benefits of ultra-low power (IQ= 500nA),
and miniaturized packaging. This LDO is designed specifically for battery-powered applications where ultra-low quiescent current is a critical parameter. The TPS783, with ultra-low IQ(500nA), is ideal for microprocessors, microcontrollers, and other battery-powered applications.
1FEATURES
2• Low I
Q
: 500nA
• 150mA, Low-Dropout Regulator
• Low-Dropout at +25°C, 130mV at 150mA
• Low-Dropout at +85°C, 175mV at 150mA
• 3% Accuracy Over Load/Line/Temperature
• Available in Fixed Voltage Options Using
Innovative Factory EEPROM Programming
• Stable with a 1.0mF Ceramic Capacitor
• Thermal Shutdown and Overcurrent Protection
• CMOS Logic Level-Compatible Enable Pin

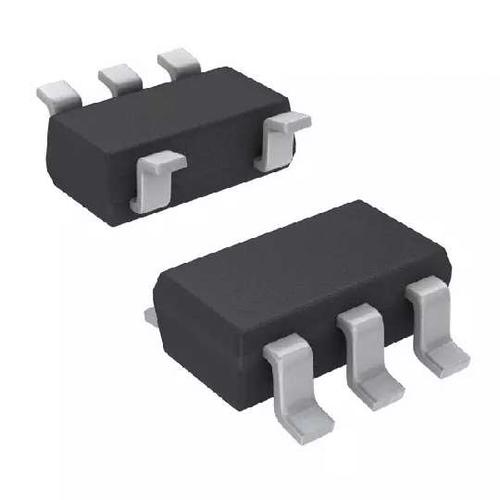

• DDC (TSOT23-5) Package
APPLICATIONS
• TI MSP430 Attach Applications
• Power Rails with Programming Mode
• Wireless Handsets, Smartphones, PDAs, MP3 Players, and Other Battery-Operated Handheld Products
