TPS781330220DDCRTISingle Channel LDO Single Output LDO, 150mA, Dual Level Fixed (3.3V or 2.2V) with Vset Pin, 1uA Quiescent Current LDO Regulator Pos 3.3V2.2V 0.15A 5Pin SOT T/R
￥
3.38

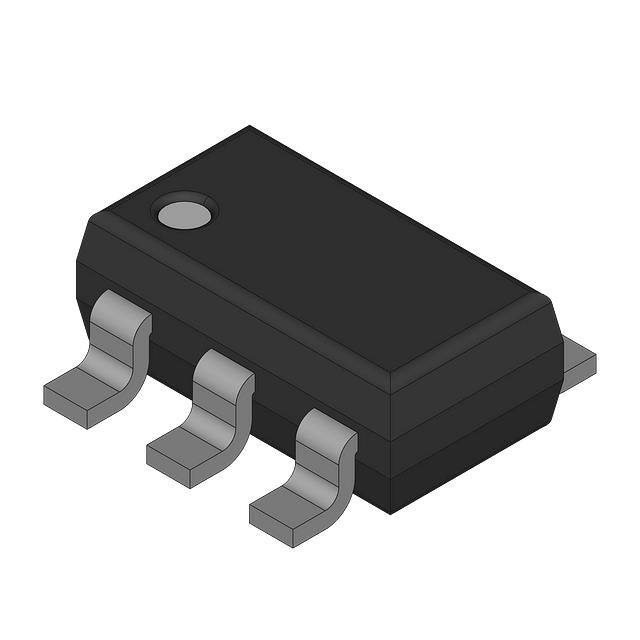

显示的图像仅供参考，应从产品数据表中获得准确的规格。
TPS781330220DDCRTI
制造商:
TI
制造商型号#:
TPS781330220DDCR
百芯编号#:
CM95255653
价格(CNY):
￥
3.38
百芯库存:
267
个
库存地点:
可供应量:
201
个在库
此为供应商库存，需要与销售确认
产品类别:
稳压,芯片
产品描述:
Single Channel LDO Single Output LDO, 150mA, Dual Level Fixed (3.3V or 2.2V) with Vset Pin, 1uA Quiescent Current LDO Regulator Pos 3.3V2.2V 0.15A 5Pin SOT T/R
The TPS781 family of low-dropout (LDO) regulators offer the benefits of ultralow power (IQ = 1µA), miniaturized packaging (2×2 SON-6), and selectable dual-level output voltage levels. An adjustable version is also available, but does not have the capability to shift voltage levels.
The VSET pin allows the end user to switch between two voltage levels*on-the-fly** through a microprocessor-compatible input. This LDO is designed specifically for battery-powered applications where dual-level voltages are needed. With ultralow IQ (1µA), microprocessors, memory cards, and smoke detectors are ideal applications for this device.
The ultralow-power and selectable dual-level output voltages allow designers to customize power consumption for specific applications. Designers can now shift to a lower voltage level in a battery-powered design when the microprocessor is in sleep mode, further reducing overall system power consumption. The two voltage levels are preset at the factory through a unique architecture using an EPROM. The EPROM technique allows for numerous output voltage options between VSET low (1.5V to 4.2V) and VSET high (2.0V to 3.0V) in the fixed output version only. See the*** table in this data sheet or consult with your local factory representative for exact voltage options and ordering information; minimum order quantities may apply.
The TPS781 series are designed to be compatible with the TI MSP430 and other similar products. The enable pin is compatible with standard CMOS logic. This LDO is stable with any output capacitor greater than 1.0µF. Therefore, implementations of this device require minimal board space because of miniaturized packaging and a potentially small output capacitor. The TPS781 series IQ (1µA) also come with thermal shutdown and current limit to protect the device during fault conditions. All packages have an operating temperature range of TJ = -40°C to +125°C. For high-performance applications requiring a dual-level voltage option, consider the TPS780 series, with an IQ of 500nA and dynamic voltage scaling.
