TPS63000DRCRTIBuck-Boost Regulator 96% Buck-Boost Converter with 1.8A Current Switches in 3x3 QFN Conv DC-DC 1.8V to 5.5V Non-Inv/Inv/Step Up/Step Down Single-Out 1.2V to 5.5V 1.2A 10Pin VSON EP T/R
￥
3.17

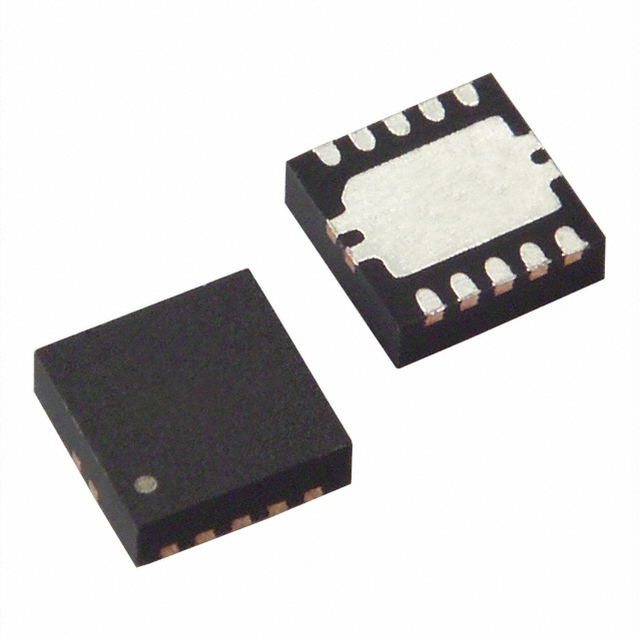

显示的图像仅供参考，应从产品数据表中获得准确的规格。
TPS63000DRCRTI
制造商:
TI
制造商型号#:
TPS63000DRCR
百芯编号#:
CM1801559
价格(CNY):
￥
3.17
百芯库存:
100
个
库存地点:香港
可供应量:
91
个在库
此为供应商库存，需要与销售确认
产品类别:
DCDC,转换器,DC-DC
产品描述:
Buck-Boost Regulator 96% Buck-Boost Converter with 1.8A Current Switches in 3x3 QFN Conv DC-DC 1.8V to 5.5V Non-Inv/Inv/Step Up/Step Down Single-Out 1.2V to 5.5V 1.2A 10Pin VSON EP T/R
The TPS6300x devices provide a power supply solution for products powered by either a two-cell or three-cell alkaline, NiCd or NiMH battery, or a one-cell Li-ion or Li-polymer battery. Output currents can go as high as 1200 mA while using a single-cell Li-ion or Li-polymer battery, and discharge it down to 2.5 V or lower. The buck-boost converter is based on a fixed frequency, pulse width modulation (PWM) controller using synchronous rectification to obtain maximum efficiency. At low load currents, the converter enters power-save mode to maintain high efficiency over a wide load current range. The power-save mode can be disabled, forcing the converter to operate at a fixed switching frequency. The maximum average current in the switches is limited to a typical value of 1800 mA. The output voltage is programmable using an external resistor divider, or is fixed internally on the chip. The converter can be disabled to minimize battery drain. During shutdown, the load is disconnected from the battery.
The TPS6300x devices operate over a free air temperature range of –40°C to 85°C. The devices are packaged in a 10-pin VSON package (QFN) measuring 3 mm × 3 mm (DRC).
