The TPS6217X family is an easy to use synchronous step down DC-DC converter optimized for
applications with high power density. A high switching frequency of typically 2.25MHz allows the use of small inductors and provides fast transient response as well as high output voltage accuracy by utilization of the DCS-Control™ topology.
With its wide operating input voltage range of 3V to 17V, the devices are ideally suited for systems powered from either a Li-Ion or other battery as well as from 12V intermediate power rails. It supports up to 0.5A continuous output current at output voltages between 0.9V and 6V (with 100% duty cycle mode).
FEATURES
• DCS-ControlTM Topology
• Input Voltage Range: 3 to 17 V
• Up to 500 mA Output Current
• Adjustable Output Voltage from 0.9 to 6 V
• Fixed Output Voltage Versions
• Seamless Power Save Mode Transition
• Typically 17µA Quiescent Current
• Power Good Output
• 100% Duty Cycle Mode
• Short Circuit Protection
• Over Temperature Protection

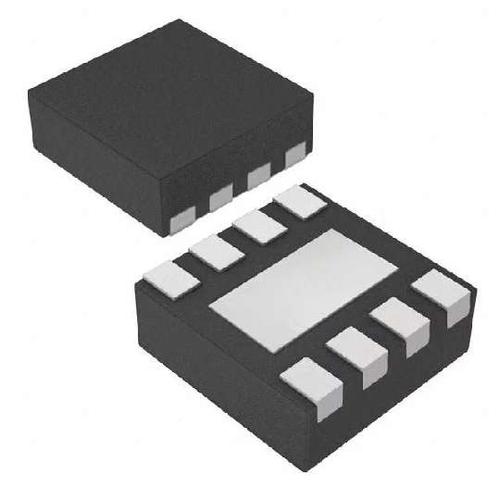

• Available in a 2 × 2 mm, WSON-8 Package
APPLICATIONS
• Standard 12V Rail Supplies
• POL Supply from Single or Multiple Li-Ion Battery
