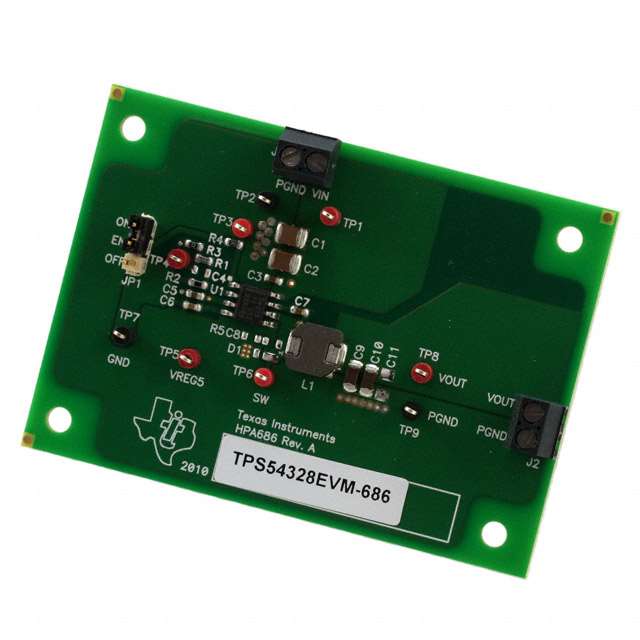

The TPS54328EVM-686 is an evaluation module for TPS54328 3A output Synchronous Step Down Converter with Eco Mode. The TPS54328 is a single, adaptive on time, DCAP2 mode, synchronous buck converter requiring a very low external component count. The DCAP2 control circuit is optimised for low ESR output capacitors such as POSCAP, SP-CAP, or ceramic types and features fast transient response with no external compensation. The switching frequency is internally set at a nominal 700KHz. The low drain to source on resistance of the MOSFETs allows the TPS54328 to achieve high efficiencies and helps keep the junction temperature low at high output currents. The TPS54328 also features auto skip Eco mode for improved light load efficiency. The TPS54328 dc/dc synchronous converter is designed to provide up to a 3A output from an input voltage source of 4.5V to 18V. The output voltage range is from 0.76V to 7.0V.
DCAP2 mode enables fast transient response
Low output ripple and allows ceramic output capacitor
Wide Vin input voltage range from 4.5V to 18V
Output voltage Range from 0.76V to 5.5V
Highly efficient integrated FETs optimised for lower duty cycle applications
High efficiency, less than 10uA at shutdown
High initial bandgap reference accuracy
Adjustable soft start
Pre biased soft start
700KHz switching frequency (fsw)
This EVM should be operated within the input voltage range of 5V to 17V and the output voltage range of 1V to 5V. Exceeding the specified input range may cause damage to the EVM.
