This section describes the main features of the TMS320VC5441 digital signal processor (DSP), lists the pin assignments, and describes the function of each pin. This data manual also provides a detailed description section, electrical specifications, parameter measurement information, and mechanical data about the available packaging.
Description

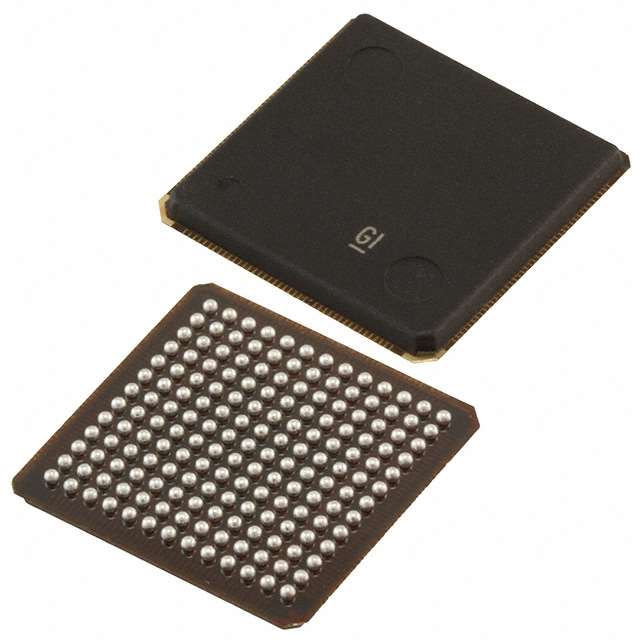

The TMS320VC5441 fixed-point digital signal processor is a quad-core solution running at 532-MIPS performance. The 5441 consists of four DSP subsystems with shared program memory. Each subsystem consists of one TMS320C54x DSP core, 32K-word program/data DARAM, 64K-word data DARAM, three multichannel buffered serial ports, DMA logic, one watchdog timer, one general-purpose timer, and other miscellaneous circuitry.
TMS320VC5441 Features
• 532-MIPS Quad-Core DSP Consisting of Four Independent Subsystems
• Each Core has an Advanced Multibus Architecture With Three Separate 16-Bit Data Memory Buses and One Program Bus
• 40-Bit Arithmetic Logic Unit (ALU) Including a 40-Bit Barrel-Shifter and Two 40-Bit Accumulators Per Core
• Each Core has a 17-Bit × 17-Bit Parallel Multiplier Coupled to a 40-Bit Adder for Non-Pipelined Single-Cycle Multiply/Accumulate (MAC) Operations
• Each Core has a Compare, Select, and Store Unit (CSSU) for the Add/Compare Selection of the Viterbi Operator
• Each Core has an Exponent Encoder to Compute an Exponent Value of a 40-Bit Accumulator Value in a Single Cycle
• Each Core has Two Address Generators With Eight Auxiliary Registers and Two Auxiliary Register Arithmetic Units (ARAUs)
• Total 640K-Word × 16-Bit Dual-Access On-Chip RAM (256K-Word x 16-Bit Shared Memory and 96K-Word x 16-Bit Local Memory Per Subsystem)
• Single-Instruction Repeat and Block-Repeat Operations
• Instructions With 32-Bit Long Word Operands
• Instructions With 2 or 3 Operand Reads
• Fast Return From Interrupts
• Arithmetic Instructions With Parallel Store and Parallel Load
• Conditional Store Instructions
• Output Control of CLKOUT
• Output Control of Timer Output (TOUT)
• Power Consumption Control With IDLE1, IDLE2, and IDLE3 Instructions
• Dual 1.6-V (Core) and 3.3-V (I/O) Power Supplies for Low-Power, Fast Operations
• 7.5-ns Single-Cycle Fixed-Point Instruction
• Twenty-Four Channels of Direct Memory Access (DMA) for Data Transfers With No CPU Loading (Six Channels Per Subsystem)
• Twelve Multichannel Buffered Serial Ports (McBSPs), Each With 128-Channel Selection Capability (Three McBSPs per Subsystem)
